Product description

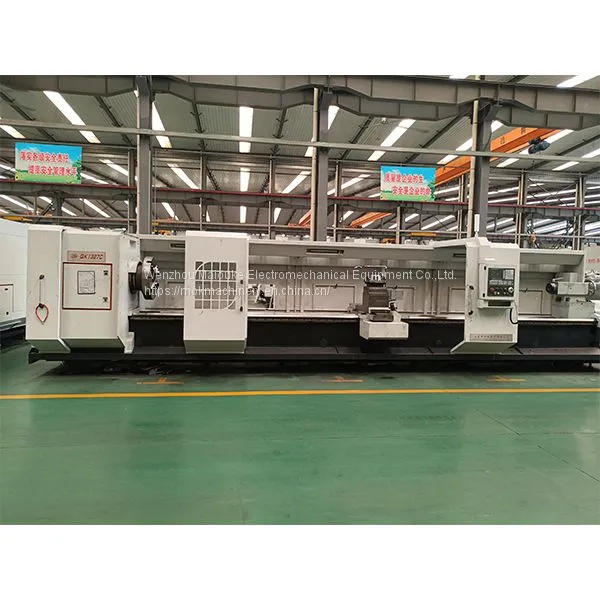

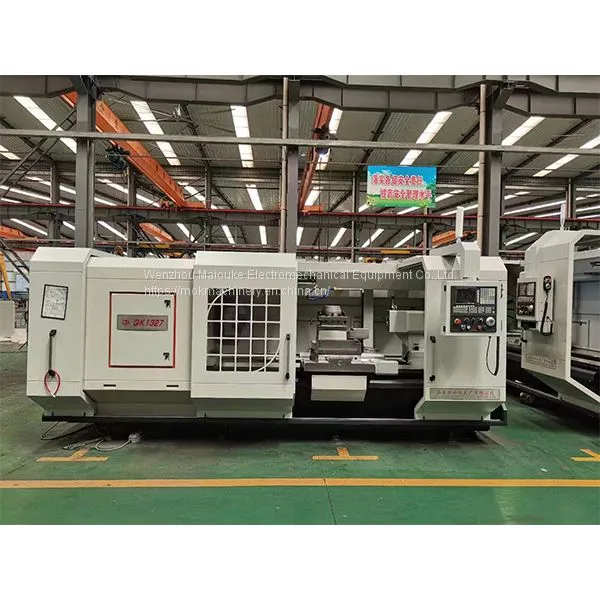

This series heavy duty CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.
Specification
Unit |
QK1325 |
QK1327C |
||||
Manual |
HYD |
Manual |
HYD |
|||
Swing over bed |
mm |
800/1000 |
800/1000 |
|||
Swing over cross slide |
mm |
480/680 |
480/680 |
|||
Distance between centers |
mm |
1000-6000 |
1000-6000 |
|||
Pipe threading range |
mm |
50-255 |
50-270 |
|||
Guideway width |
mm |
600 |
600 |
|||
Max. load capacity |
T |
4 |
4 |
|||
Spindle |
Spindle bore taper |
mm |
255 |
280 |
||
Spindle nose type |
- |
VF.4 steps |
HYD 4 steps |
VF.4 steps |
HYD 4 steps |
|
Spindle speed range |
rpm |
20-420 |
20-420 |
|||
Chuck |
mm |
Φ630 4-jaw manual |
Φ680 4-jaw manual |
|||
Turret |
Turret/tool post |
- |
NC turret 4 position |
|||
Tool shank size |
mm |
32×32 |
32×32 |
|||
Feed |
X axis travel |
mm |
420 |
420 |
||
Z axis travel |
mm |
1000-6000 |
1000-6000 |
|||
X axis rapid traverse |
mm/min |
4000 |
4000 |
|||
Z axis rapid traverse |
mm/min |
6000 |
6000 |
|||
Tailstock |
Tailstock quill diameter |
mm |
Φ120 |
Φ100 |
||
Tailstock quill taper |
- |
MT6 |
MT6 |
|||
Tailstock quill travel |
mm |
250 |
250 |
|||
Motor |
Main spindle motor |
kW |
15 |
15 |
||
Coolant pump motor |
kW |
0.25 |
0.25 |
|||
Dimension |
Width×Height |
mm |
1930×1900 |
1930×1900 |
||
Length |
mm |
3600-8600 |
3300-8600 |
|||
Weight |
Net weight |
T |
6-9.5 |
6.2-9.7 |
||
Please note: machine bed length can customize according to real work demand, machine on this page can choose servo motor direct driving structure turning center with C axis. | ||||||
Characteristic

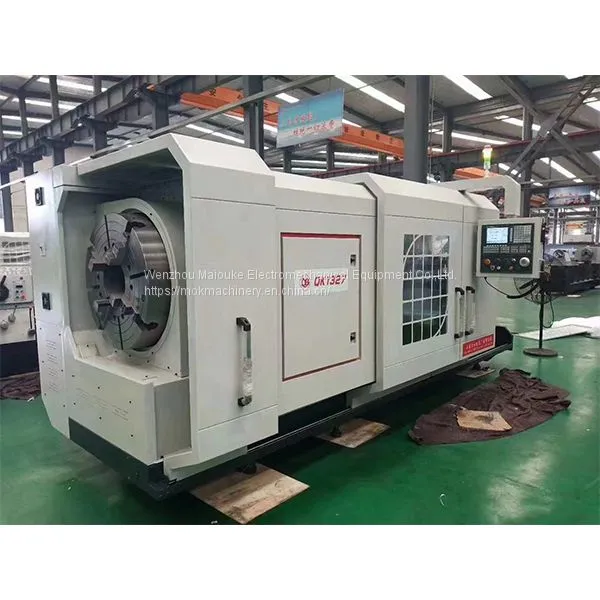

●Big spindle bore and double chuck to ensure process big diameter pipe.
●One-piece bed adopts high strength iron to ensure rigidity and precision.
●Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
●Carriage and guide way contact surface use Turcite B to maintain accuracy.
Optional Configuration
1.Fanuc or other brand CNC controller
2.Quick change tool post
3.Hydraulic turret or Power turret
4.Hydraulic tailstock
