Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine

Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine thumbnail-1
Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine thumbnail-2
Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine thumbnail-3
Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine thumbnail-4
Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine thumbnail-5

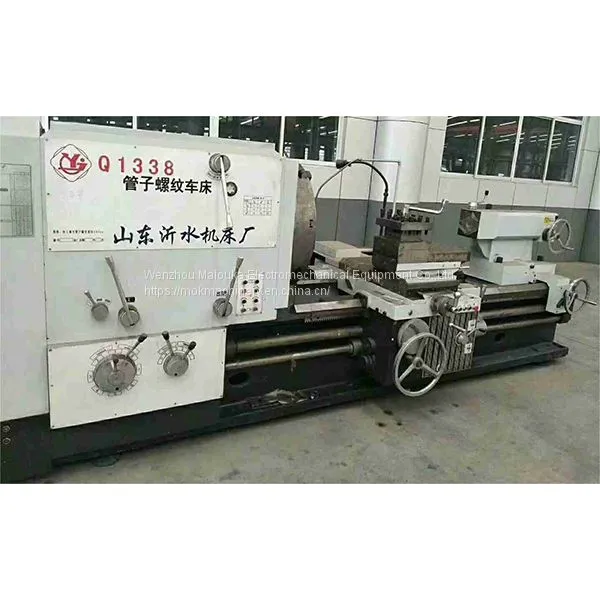

Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine photo-1

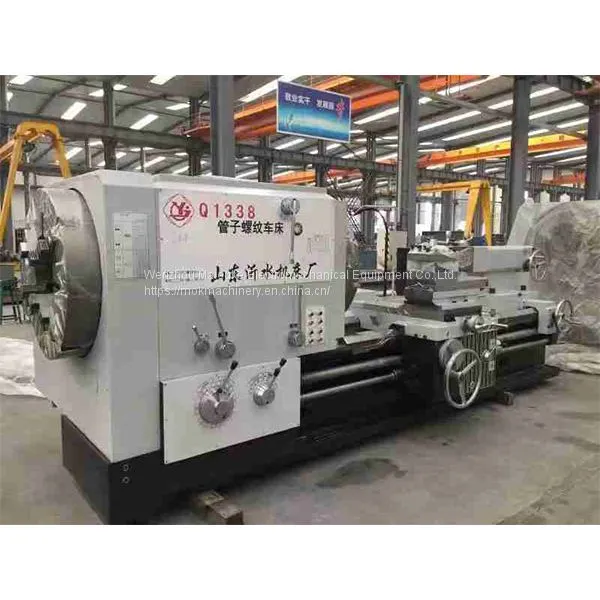

Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine photo-2

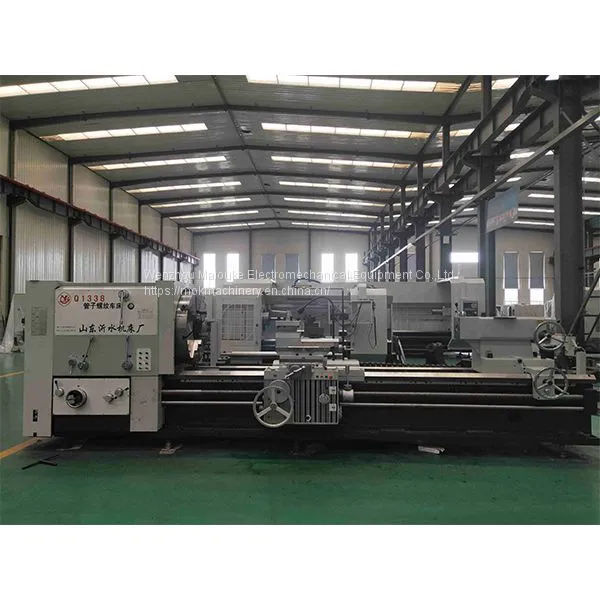

Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine photo-3
Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine photo-4
Big Spindle Bore Turning Oil Machine Pipe Threading Lathe Machine photo-5
US$ 61300 - 140000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YISHUI
Place of Origin:
China
Model Number:
Q1332 Q1338 Q1343 Q1350
Contact Supplier Request Quote Chat Now
Wenzhou Maiouke Electromechanical Equipment Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YISHUI
Place of Origin China
Model Number Q1332 Q1338 Q1343 Q1350
Type Horizontal
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 8.0/9.0 10.0/11.5kg
Dimension(L*W*H) 4900/6400×2100×1650 4900/6400×2100×1700 5000/6500×2100×1700 5000/6500×2100×1850
Voltage 220V
Condition New
Power(W) 15 22KW
Automatic Grade Manual
CNC or Not Normal
Max. Swing Diameter 1000 1200 mm

Product description

Q13 series pipe threading lathe mainly used for turning the internal and external threads including metric and inch thread, as well as having all the common functions of normal engine lathe such as processing the inner bore, end face of shafts and disks, this series is equipped with taper guide bar device which enables this series to process taper thread, this series is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, for processing and repairing drilling pipe, drilling rod, thread coupling and so on.

Item

Unit

Q1332

Q1338

Q1343

Q1350

Capacity

Swing over bed

mm

1000

1000

1000

1200

Swing over cross slide

mm

610

610

610

710

Distance between centers

mm

1500/3000

1500/3000

1500/3000

1500/3000

Pipe threading range

mm

190-320

190-380

270-430

330-510

Spindle

Guideway width

mm

755

755

755

765

Max.  load capacity

T

6

6

6

6

Spindle  bore

mm

330

390

440

520

Spindle speed steps

-

FWD. 9 steps

FWD. 9 steps

FWD. 9 steps

FWD. 9 steps

Spindle speed range

rpm

7.5-280

6-205

4.9-180

4.9-180

Chuck

mm

Φ780 4-jaw electric

Φ850 4-jaw electric

Φ1000 4-jaw electric

Turret

Turret/tool post

-

Manual 4 position

Tool shank size

mm

45×45

45×45

45×45

45×45

Feed

X axis travel

mm

520

520

520

520

Z axis travel

mm

1350/2850

1350/2850

1350/2850

1350/2850

X axis feed grade/range

mm/r

32/0.05-0.75

32-0.05-0.75

32/0.05-0.75

32/0.05-0.75

Z axis feed grade/range

mm/r

32/0.1-1.5

32/0.1-1.5

32/0.1-1.5

32/0.1-1.5

X axis rapid traverse

mm/min

1870

1870

1870

1870

Z axis rapid traverse

mm/min

3740

3740

3740

3740

Metric thread grade/range

mm

23/1-15

23/1-15

23/1-15

23/1-15

Inch threadgrade/range

T.P.I

22/28-2

22/28-2

22/28-2

22/28-2

Tailstock

Tailstock quill diameter

mm

Φ160

Φ160

Φ160

Φ160

Tailstock quill taper

-

MT6

MT6

MT6

MT6

Tailstock quill travel

mm

300

300

300

300

Motor

Main spindle motor

kW

22

22

22

22

Rapid traverse motor

kW

1.5

1.5

1.5

1.5

Coolant pump motor

kW

0.125

0.125

0.125

0.125

Dimension

Width×Height

mm

2100×1650

2100×1700

2100×1700

2100×1850

Length

mm

4900/6400

4900/6400

5000/6500

5000/6500

Weight

Net weight

T

11.5/13.0

12.8/14.3

13.0/14.5

15.0/16.5


Characteristic

●Big spindle bore and double chuck to ensure process big diameter pipe.

●Integral machine bed adopts high strength iron to realize.

●Ultrasonic frequency quenched guide-ways ensure good wear-resistance.

●Equipped with taper guide bar device this enables the machine to process taper threads.


Product Tags: Pipe Threading Machine , Pipe Threading Lathe , Pipe Thread Lathe , Manual Lathe , Engine Lathe , Horizontal Lathe , Conventional Pipe Threading Lathe , Pipe Threading Lathe Machine , Pipe Thread Lathe Machine
