High Precision Universal Pipe Threading Machine With Big Spindle Bore

High Precision Universal Pipe Threading Machine With Big Spindle Bore thumbnail-1
High Precision Universal Pipe Threading Machine With Big Spindle Bore thumbnail-2
High Precision Universal Pipe Threading Machine With Big Spindle Bore thumbnail-3
High Precision Universal Pipe Threading Machine With Big Spindle Bore thumbnail-4
High Precision Universal Pipe Threading Machine With Big Spindle Bore thumbnail-5
High Precision Universal Pipe Threading Machine With Big Spindle Bore photo-1

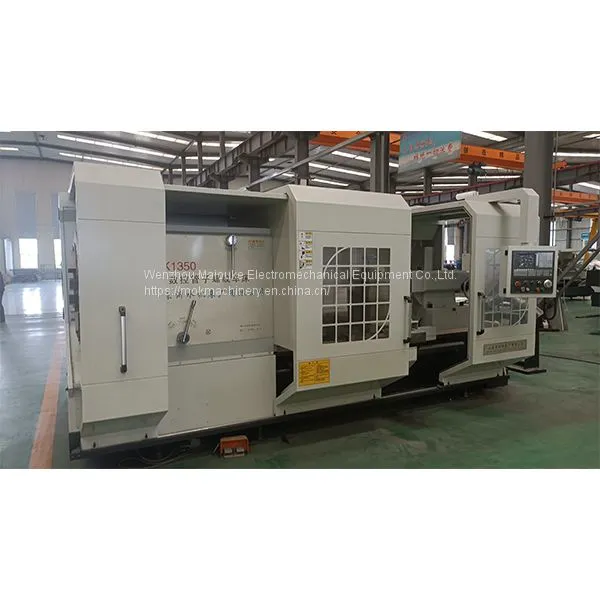

High Precision Universal Pipe Threading Machine With Big Spindle Bore photo-2

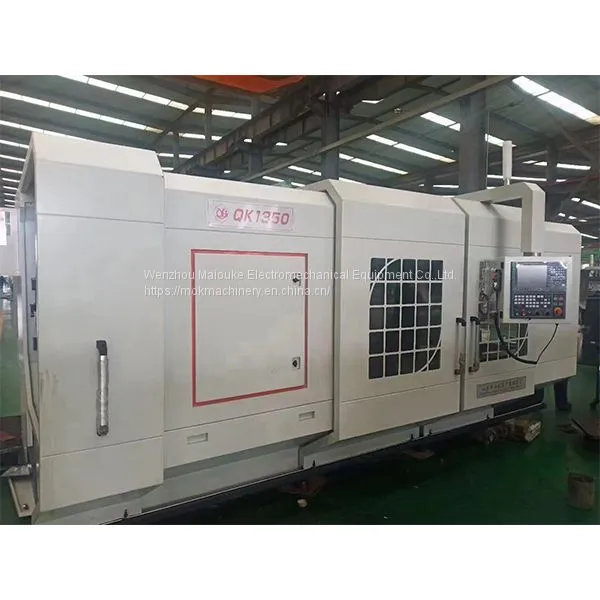

High Precision Universal Pipe Threading Machine With Big Spindle Bore photo-3

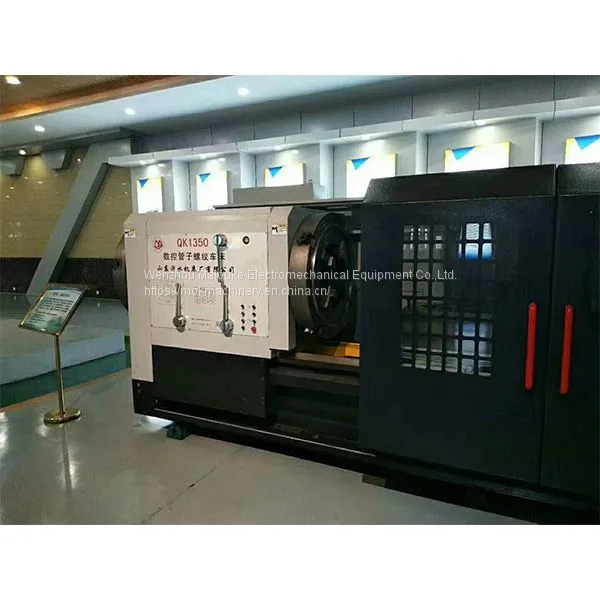

High Precision Universal Pipe Threading Machine With Big Spindle Bore photo-4

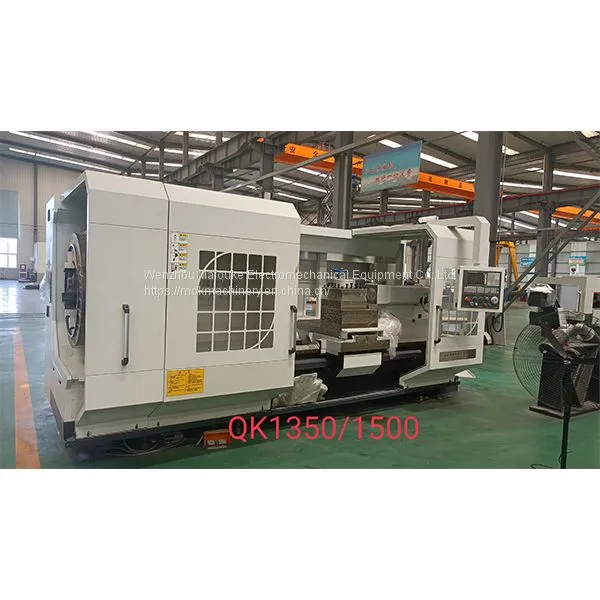

High Precision Universal Pipe Threading Machine With Big Spindle Bore photo-5
US$ 95000 - 192000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
YISHUI
Place of Origin:
China
Model Number:
QK1343 QK1350 QK1363
Contact Supplier Request Quote Chat Now
Wenzhou Maiouke Electromechanical Equipment Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai,China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YISHUI
Place of Origin China
Model Number QK1343 QK1350 QK1363
Type Horizontal
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 13.0/14.0 15.0/16.0 18.0/19.3kg
Dimension(L*W*H) 5000/6500×2220×2120 5000/6500×2300×2200 5000/7100×2500×2500
Voltage 220V
Condition New
Power(W) 22 37KW
Automatic Grade Automatic
CNC or Not CNC
Max. Swing Diameter 1000 1200 1500 mm

Product description

This series heavy duty CNC pipe threading lathe is mainly designed for processing internal and external pipe threads including metric, inch, module, DP and taper threads, as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks. This series lathe machine is widely used in industries including petroleum exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment in processing and repairing drilling pipe, drilling rod, thread coupling and so on.



Specification

Item

Unit

QK1343

QK1350

QK1363

Capacity

Swing over bed

mm

1000

1200

1500

Swing over cross slide

mm

610

710

900

Distance between centers

mm

1500/3000

1500/3000

1500/3000

Pipe threading range

mm

270-430

330-510

330-630

Guideway width

mm

755

765

1100

Max. load capacity

T

6

6

10

Spindle

Spindle bore taper

mm

440

520

640

Spindle nose type

-

VF.3 steps

VF.3 steps

VF.3 steps

Spindle speed range

rpm

8-205

8-190

2-120

Chuck

mm

Φ1000 4-jaw manual

Φ1250 4-jaw manual

Turret

Turret/tool post

-

NC turret 4 position

Tool shank size

mm

40×40

50×50

50×50

Feed

X axis travel

mm

520

520

750

Z axis travel

mm

1250/2750

1250/2750

1250/2750

X axis rapid traverse

mm/min

4000

4000

4000

Z axis rapid traverse

mm/min

4000

4000

4000

Tailstock

Tailstock quill diameter

mm

Φ160

Φ160

Φ260(Rotary sleeves)

Tailstock quill taper

-

MT6

MT6

Metric 80

Tailstock quill travel

mm

300

300

300

Motor

Main spindle motor

kW

22

22

37

Coolant pump motor

kW

0.25

0.25

0.25

Dimension

Width×Height

mm

2220×2120

2300×2200

2500×2500

Length

mm

5000/6500

5000/6500

5000/7100

Weight

Net weight

T

13.0/14.0

15.0/16.0

18.0/19.3

Please note: machine bed length can customize according to real work demand, extra-long bed heavy duty lathe can customize simplified CNC pipe threading lathe without protective cover.

Characteristic

●Big spindle bore and double chuck to ensure process big diameter pipe.

●One-piece bed adopts high strength iron to ensure rigidity and precision.

●Ultrasonic frequency quenched guide-ways ensure good wear-resistance.

●Carriage and guide way contact surface use Turcite B to maintain accuracy.


Optional Configuration

1.Fanuc or other brand CNC controller

2.Hydraulic turret or Power turret

3.Full-shield
