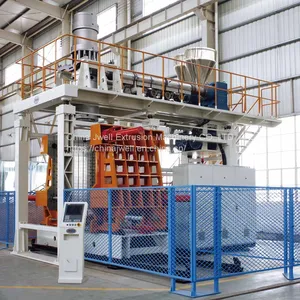

JWZ-BM500/1000 Blow Molding Machine
- 2000000 Set / Sets per Month
- Shanghai
- T/T L/C
Product Details
Brand Name: | JWELL | Place of Origin: | China | Model Number: | -- |
Certification: | CE/IOS9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | -- |
Dimension(L*W*H): | -- | Voltage: | -- | Application: | Other, Suitable for producing 500-1000L big size Chemical revolving barrel. |
Condition: | New | Power(W): | -- | Automatic Grade: | -- |
Plastic Processed: | Other, HDPE | Screw Design: | Other, Single/Twin Screw |
Product Description
Performance and advantages

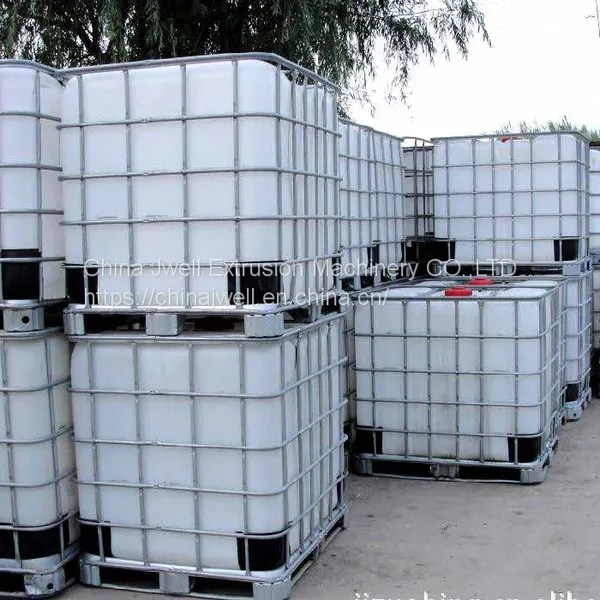

·Suitable for producing 500-1000L big size Chemical revolving barrel.
·Adopt high output extrusion system,accumulating type die head,hydraulic servo control system.
Technical parameters
Model Unit BM500 BM1000
Max product volume L 500 1000
Dry cycle Pc/h 250 155
Die head structure Accumulating type
Main screw diameter mm 100*2 120*2
Max plasticizing capacity (PE) kg/h 400 700
Driving motor Kw 90*2 132*2
Accumulating volume L 40 60
Oil pump motor power Kw 40 55
Clamping force KN 1300 1800
Space between platen mm 950-2000 1000-2700
Platen size W*H mm 1400*1800 1900*2300
Max.mould size mm 1200*1920 1750*2200
Heating power of die head Kw 50 65
Machine dimension L*W*H m 104*8.2*6.5 14*12*8.5
Machine weight T 45 70
Total power Kw 325 460
Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements.
