Home > Products > Blow Molding Machine > JWZ-BM30D/50D/100D Blow Molding Machine.

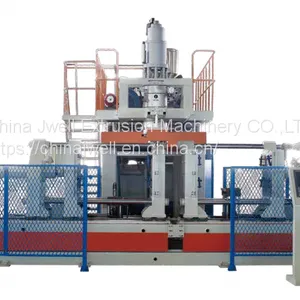

JWZ-BM30D/50D/100D Blow Molding Machine.
- Shanghai
- T/T L/C
You May Like
Product Details
Brand Name | JWELL | Place of Origin | China | |
Model Number | -- | Certification | CE/IOS9001 | |
After-sales Service Provided | Engineers available to service machinery overseas | Weight | -- | |
Dimension(L*W*H) | -- | Voltage | -- | |
Application | Other, Suitable for producing 15-100L different size of jerrycan, open-top drums chemical packaging products. | Condition | New | |
Power(W) | -- | Automatic Grade | -- | |
Plastic Processed | Other, HDPE | Screw Design | Other, Single/Twin Screw |
Product Description
Performance and advantages

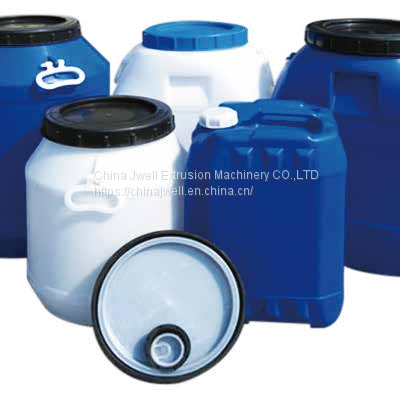

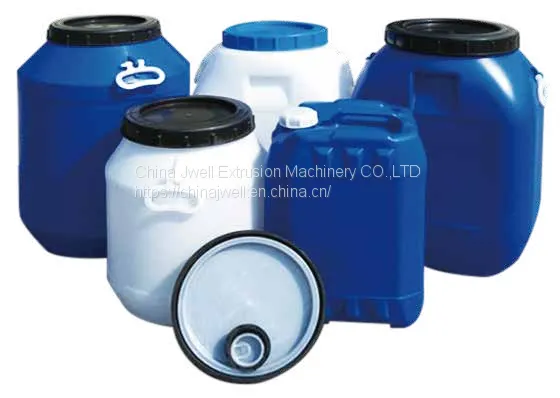

· Suitable for producing 15-100L different size of jerrycan, open-top drums chemical packaging products.
· Adopt high output extrusion system,double station, accumulating die head.
· Optional view strip line system.
· Optional hydraulic servo control system.
Technical parameters
Model Unit BM30D BM50D BM100D
Max product volume L 30 50 100
Dry cycle Pc/h 800 600 500
Die head structure Accumulating type
Main screw diameter mm 90 100 120
Max plasticizing capacity (PE) kg/h 180 220 280
Driving motor Kw 55 75 110
Accumulating volume L 5.2 6.2 12.8
Oil pump motor power Kw 18.5 22 30
Clamping force KN 280 400 600
Space between platen mm 400-900 450-1200 500-1300
Platen size W*H mm 740*740 880*880 1020*1000
Max.mould size mm 550*650 700*850 800*1200
Platen moving stroke mm 1400 1800 1900
Heating power of die head Kw 20 28 30
Machine dimension L*W*H m 5.2*8.5*3.5 5.6*9.2*3.8 6.0*10.2*4.2
Machine weight T 16 23 25
Total power Kw 115 145 195
Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements.
