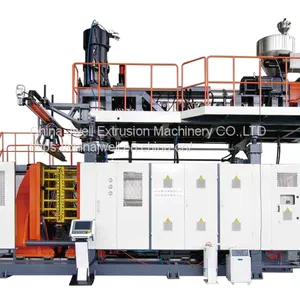

Help CenterJWZ-BM160/230 Blow Molding Machine
Related Products
Performance and advantages

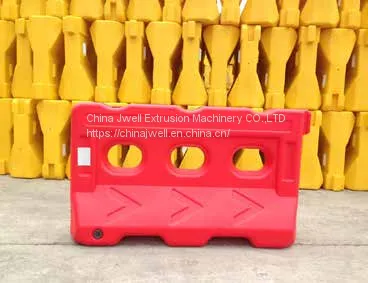

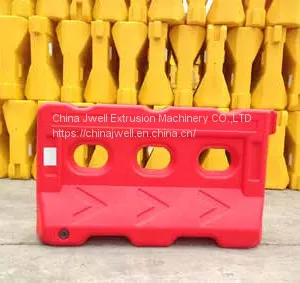

·Suitable for producing different kinds of road pyramid, logistic insulation barrels.
·Optional bottom sealing, product eject, core-pulling movement elements.
·Adopt high output extrusion system, accumulating die head.
·Optional Hydraulic Servo control system.
Technical parameters
Model Unit BM30 BM50 BM100
Max product volume L 30 50 100
Dry cycle Pc/h 600 450 360
Die head structure Accumulating type
Main screw diameter mm 80 90 100
Max plasticizing capacity (PE) kg/h 120 180 190
Driving motor Kw 37 45 55
Accumulating volume L 5.2 6.2 12.8
Oil pump motor power Kw 15 18.5 22
Clamping force KN 280 400 600
Space between platen mm 400-900 450-1200 500-1300
Platen size W*H mm 740*740 880*880 1020*1000
Max.mould size mm 550*650 700*850 800*1200
Heating power of die head Kw 20 28 30
Machine dimension L*W*H m 4.3*2.2*3.5 5.6*2.4*3.8 5.5*2.5*4.0
Machine weight T 12 13.5 16
Total power Kw 95 110 135
Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements.
