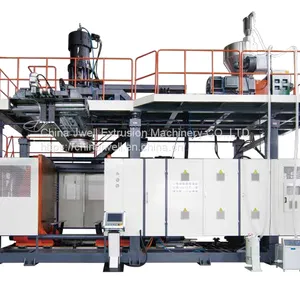

Help CenterJWZ-BM500/1000 Blow Molding Machine
Related Products
Performance and advantages
·Suitable for producing different kinds of pallet.
·Optional bottom sealing,product eject,core-pulling movement elements.
·Adopt high output extrusion system,accumulating die head.
·Hydraulic Servo control system.
Technical parameters
Model Unit BM500 BM1000
Max product volume L 500 1000
Dry cycle Pc/h 250 155
Die head structure Accumulating type
Main screw diameter mm 120/135 120*2
Max plasticizing capacity (PE) kg/h 400 700
Driving motor Kw 90*2 132*2
Accumulating volume L 45/60 75/90
Oil pump motor power Kw 40 55
Clamping force KN 1300 1800
Space between platen mm 950-2000 1000-2700
Platen size W*H mm 1400*1800 1900*2300
Max.mould size mm 1200*1920 1750*2200
Heating power of die head Kw 50 65
Machine dimension L*W*H m 104*8.2*6.5 14*12*8.5
Machine weight T 45 70
Total power Kw 325 460 Note: Informations listed above are for reference only, the production line can be designed by customer’s requirements.
