Feed Water Requirements of RO Water Plant

1.Total water inlet : ≥ 1 m³/h, Raw water pressure:≥0.3MPa (If less than 0.3MPa,the raw water tank and constant pressure system are needed)

2.Water yield : 1/2 m³/h @25℃

3. Pure water quality: Condustivity ≤15µs/cm @25℃

4.Full automatic operation : The system realizes automatic operation by means of liquid level interlocking, in which the pretreatment system is fully automatic (or manually operated)

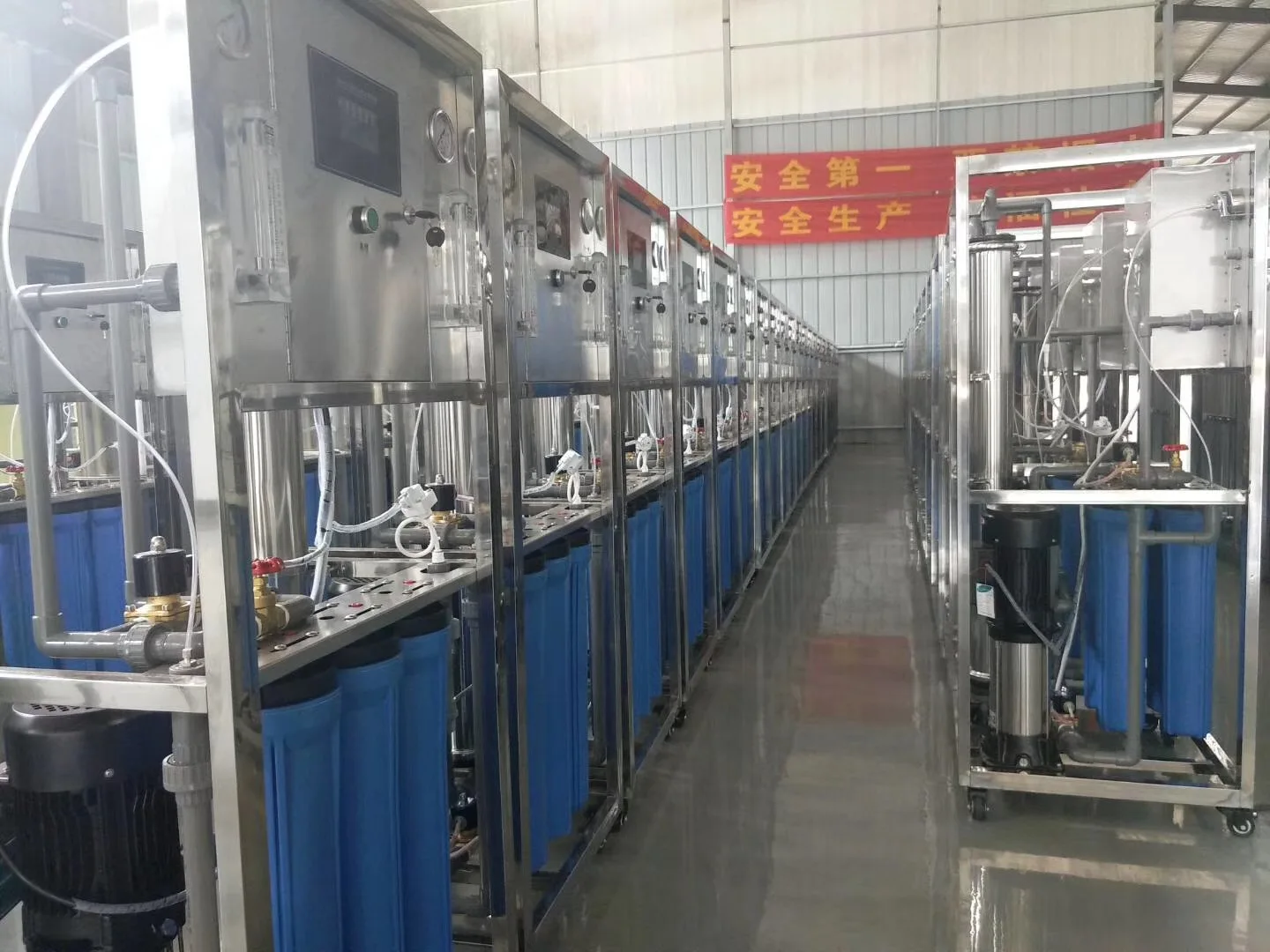

Technical Process of Water Fillter System

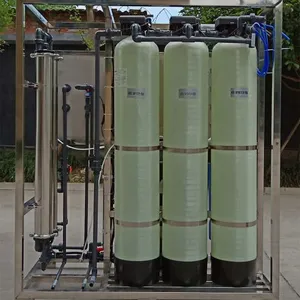

1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.

2. Quartz sand filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect

3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.

4. Softener filter--exchange "ions" of calcium and magnesium with the most common and easiest method.

4.1. Brine box-- regeneration

5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.

6. High pressure pump-- Provide the high pressure to RO membrane.

7. RO membrane-- remove more than 99% ions, bacteria, salt, microorganism, heavy ions, colloid,emdotoxin and other particles in the water.

8. UV lamp/ ozone generator-- disinfection and sterilization.

Model List of RO Water Plant

Features and Advantages of RO Water Plant

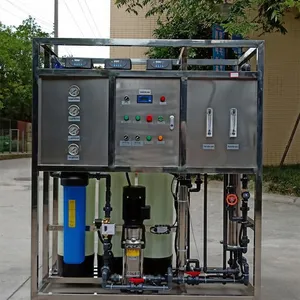

1. Standard integrated appearance, compact structure saving floor space
2.Standard blue glass steel pretreatment tank, beautiful appearance, higher cost of appearance

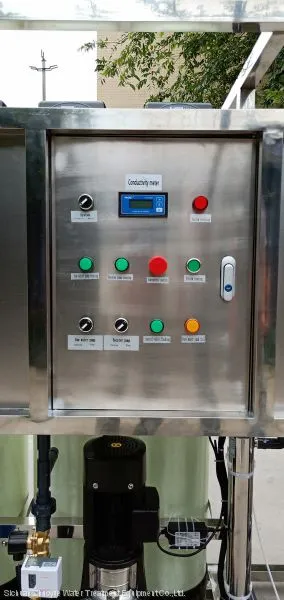

3.Manual and automatic control in case of any emergency to facilitate the usage in emergency situations. Higher cost of electronic control
4, Electrical control with stainless steel 304 rack and shell, with a full closure plate shape, compared to the semi-closed plate shape, higher cost
5, The entire department uses ultra-pure water for ultra-clean PVC pipe fittings, low dissolution, prevent the secondary pollution of pure water
6. The electronic control device adopts one power and one control. Each electronic component has independent layout and does not interfere with each other. The failure rate is lower, and the extended function wiring port is reserved to facilitate the customer's new functions and use later.
7. The pre-treatment regeneration washing function is interconnected with the host electronic control to ensure that the pre-treatment system is flushed and reproduced more fully, and the replacement frequency of consumables is reduced, and the service life is longer.

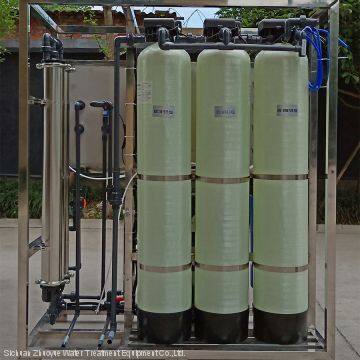

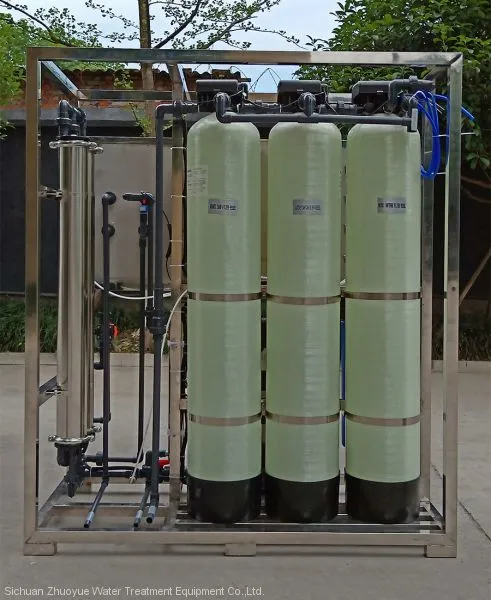

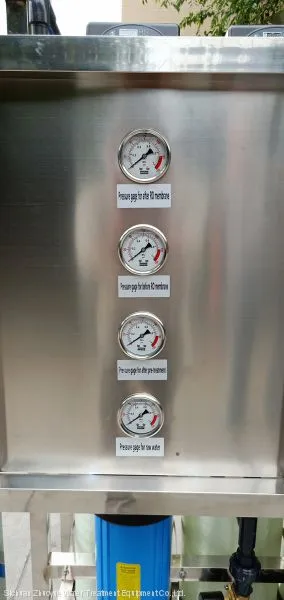

More Details of RO Water Plant

Water Application of RO Water Plant

The ultrapure water equipment in the chemical industry is mainly used in the solvent industry for solvent water, chemical analysis, chemical materials, product cleaning, material separation, concentration, purification, waste recovery and other occasions.

1. Hospital

2. Pesticide, fertilizer and other chemical pure water equipment

3. daily chemical pure water equipment

4. chemical reagents pure water equipment

5. fine chemical pure water equipment

6. shampoo, hand soap

7.beauty hair dye, toothpaste daily necessities
