Laboratory Water Purification System Water Filter, Micro-analysis Compound Ultra Pure Water Machine ZYDM Series
US$ 1203 - 1524
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Zhuoyue
Place of Origin:
China
Model Number:
ZYDM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, Tianjin, Qingdao or other Chinese port
Delivery Detail:
28 days
Related Products
-
Hot Selling 300L Multifunctional Membrane Separation Decolorization System Equipment ManufacturerUS$ 20565 - 20592MOQ: 1 Set -
Multifunctional Membrane Separation Decolorization System Equipment ManufacturerUS$ 20565 - 20592MOQ: 1 Set
-
Ultra Pure Water System/Machine for Hospital Use Biochemical AnalyzerUS$ 650 - 1110MOQ: 1 Piece
-
ZYC Manufacturer Deionized Water Machine for LaboratoryUS$ 1038 - 1600MOQ: 1 Unit
-
Touch Screen Ultrapure Water Treatment Machine for Lab/PharmacyUS$ 1900 - 2500MOQ: 1 Unit
Brand Name
Zhuoyue
Place of Origin
China
Model Number
ZYDM
Products Description

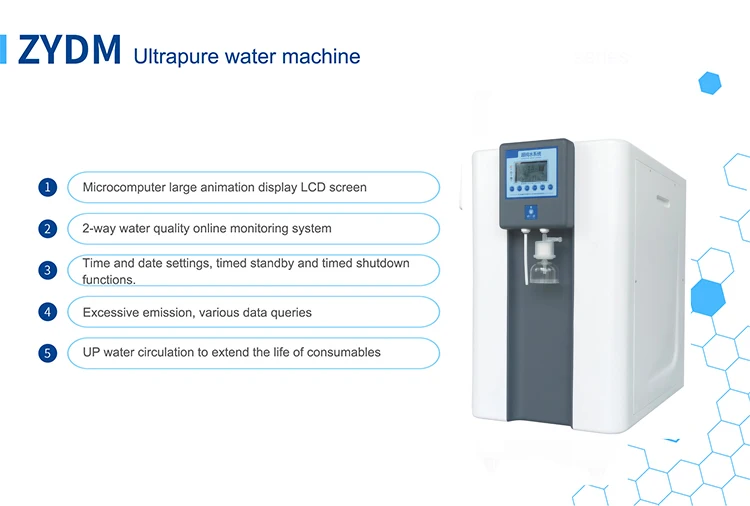

ZYDM Ultrapure Water Machine
ZYDM is multi-function ultrapure water machine with PLC operation and LCD touch screen. It totally meets the standard ofGB/T6682-2008.
Model list

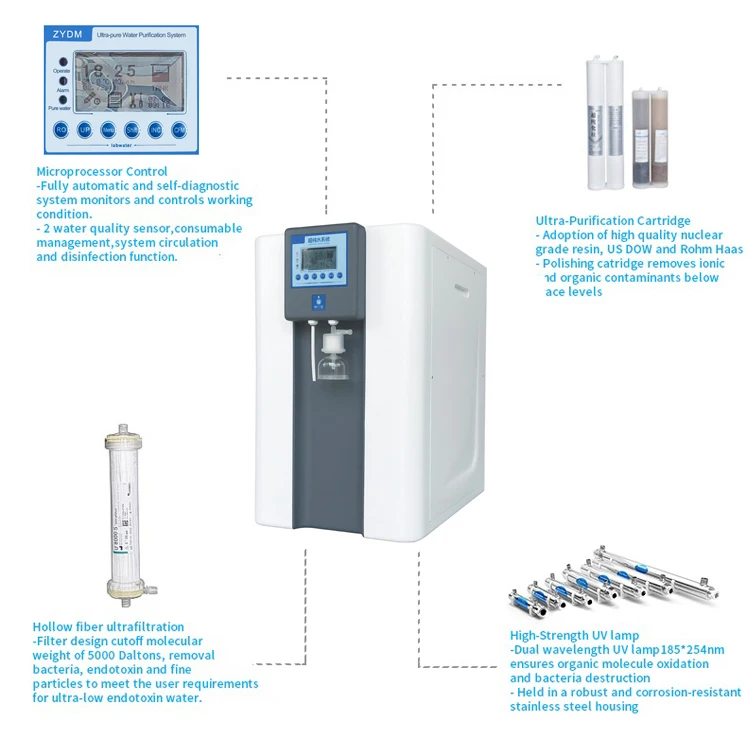

Product features
Fully automatic microcomputer double RO ZYDM control system.
1. Multi-level operation menu.
2. Backlit Liquid crystal display( Resolution:240*128; Size:66*33mm).
3. Real-time animation mode display.
4. Perfect management functions like RO and ultra-pure water making, water taking,system circulation and disinfection,etc.
5.Ultra-pure water circulation to extend the life span of consumable parts within ultra-pure water purification system.
6.Automatic RO membrane anti-fouling flushing and manual forced flushing procedures to extend the life span of RO membrane.
7.Comprehensive system maintenance and safety alarm:
8. Equipped with USB Host interface to support historical alarm records and water taking record data export function, to
facilitate the later access to historical operation conditions data.
9.Adopt more advanced, user-friendly membrane push button to take water.
10.Semi-transparent medical grade PP material do not produce secondary pollution.
11.Humanization design of manual/automatic water taking mode,Timing(1-99min),customization water taking (10-18.25MΩ.cm)
1. Multi-level operation menu.
2. Backlit Liquid crystal display( Resolution:240*128; Size:66*33mm).
3. Real-time animation mode display.
4. Perfect management functions like RO and ultra-pure water making, water taking,system circulation and disinfection,etc.
5.Ultra-pure water circulation to extend the life span of consumable parts within ultra-pure water purification system.
6.Automatic RO membrane anti-fouling flushing and manual forced flushing procedures to extend the life span of RO membrane.
7.Comprehensive system maintenance and safety alarm:
8. Equipped with USB Host interface to support historical alarm records and water taking record data export function, to
facilitate the later access to historical operation conditions data.
9.Adopt more advanced, user-friendly membrane push button to take water.
10.Semi-transparent medical grade PP material do not produce secondary pollution.
11.Humanization design of manual/automatic water taking mode,Timing(1-99min),customization water taking (10-18.25MΩ.cm)

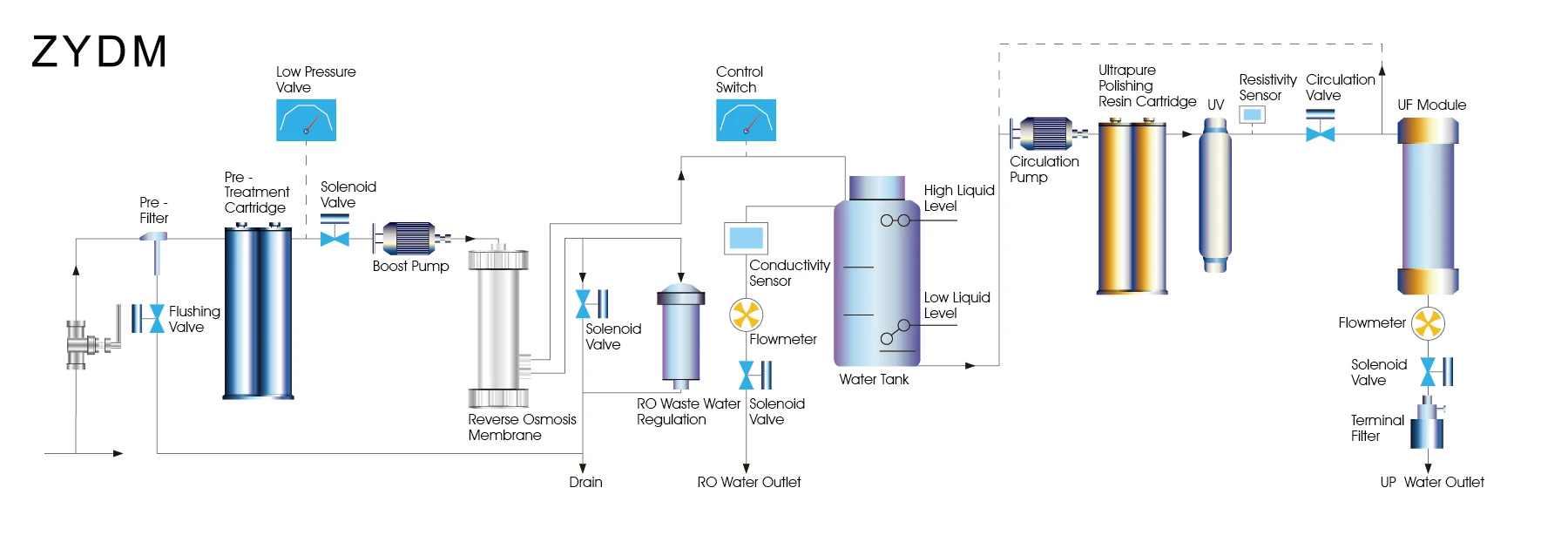

The process flow
1. Pre treatment cartridge consists of 5um PP fiber filter + Activated Carbon filter;
5um PP fiber filter: Remove particals above 5 um, e.g. rust,sediments,Seaweed, suspended matter; Activated carbon filter: Absorb odor, pigment, residual chlorine;
2. 2 Stage RO Membrane
It has high removal rate more than 98% for high valent ions, colloids, bacteria and organic matter (including endotoxin) with molecular weight greater than 300Dalton.
3. Ultrapure polishing resin cartridge
Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water, the replaced H
+ and OH- combined to produce H2O, ultra-purified column filling Rohm and Haas Ultra-pure water for nuclear grade resin, the water resistance is up to 18.25 MΩ.cm.
5um PP fiber filter: Remove particals above 5 um, e.g. rust,sediments,Seaweed, suspended matter; Activated carbon filter: Absorb odor, pigment, residual chlorine;
2. 2 Stage RO Membrane
It has high removal rate more than 98% for high valent ions, colloids, bacteria and organic matter (including endotoxin) with molecular weight greater than 300Dalton.
3. Ultrapure polishing resin cartridge
Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water, the replaced H
+ and OH- combined to produce H2O, ultra-purified column filling Rohm and Haas Ultra-pure water for nuclear grade resin, the water resistance is up to 18.25 MΩ.cm.

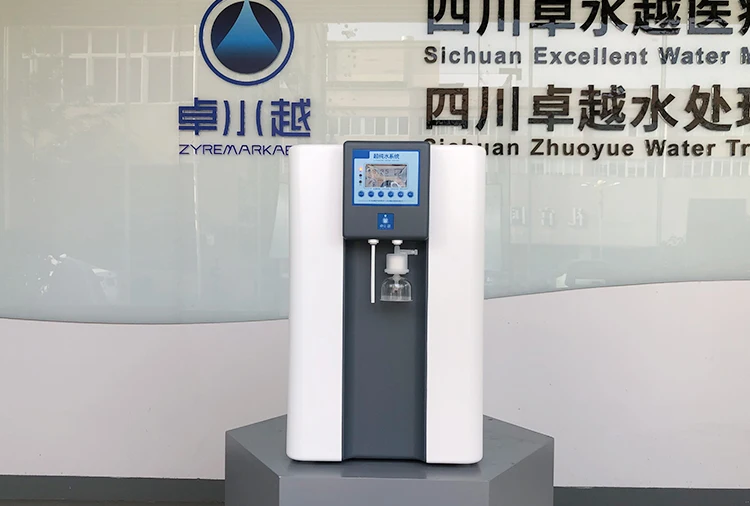

Product exhibition
