Pharmacopoeia purified water equipment manufacturer GMP standard purified water equipment preparation purified water system

Optional Configuration:

1. Pretreatment + Primary RO system+ Secondary RO system + Sterilizer + Circulatory System

2. Pretreatment + Primary Reverse Osmosis + EDI Equipment + Sterilization Device + Circulatory System

3. Pretreatment + Primary Reverse Osmosis + Secondary Reverse Osmosis + EDI Equipment + Sterilization Device + Circulatory System

Note:

(1). Pretreatment: Quartz sand filter + AC filter + Softener filter (or anti-scalant);

(2). Sterilizer: UV lamp, ozone generator, pateurization or multiple effect distillation.

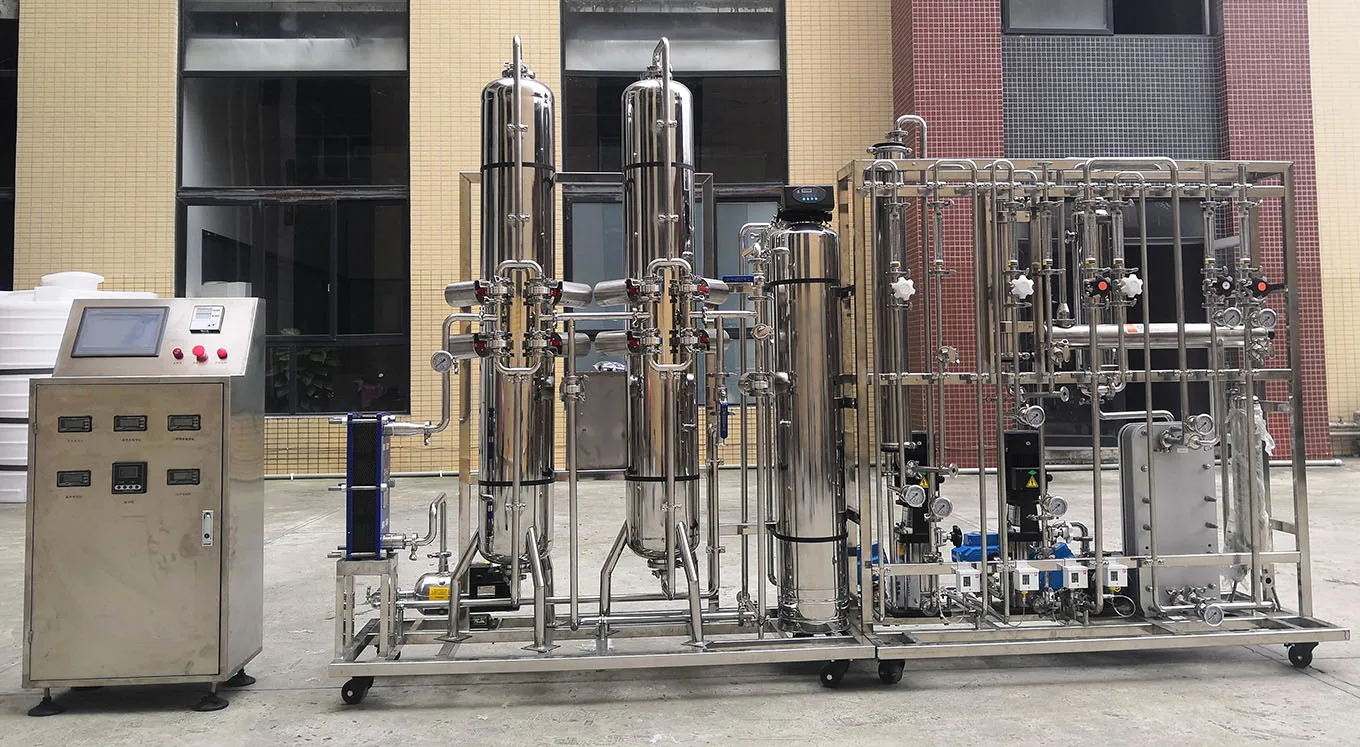

ZYGMP-Double RO  EDI Ultrapure Water System

The core technology of ZYGMP--EDI Ultrapure Water System adopts single-stage or double-stage reverse osmosis system, EDI and other latest processes to design targeted high-quality pure water treatment processes in a targeted manner to meet the purified or distilled water of pharmaceuticals, hospitals, biologics, animal pharmaceutical, laboratory diagnostic reagents, etc. The entire system is composed of SUS304L or SUS316L all stainless steel material combination, and before the water point must be equipped with ultraviolet,ozone disinfection device or can also be pasteurized.

1. Water production: 250-2000lph (or according to customers' requirement)

2. Control: Automatic 7'' PLC touch screen operation

3. Inlet water condition: tap water

4. Water quality: Meet the requirements of GMP and Ch.P. 2015;

                           pure water conductivity: ≤ 5.1us / cm (resistivity ≥ 0.2MΩ.cm)

9. Inlet water condition: Tap water

10. Working pressure: 0.2-0.4 Mpa

11. Water temperature: 5-40 ℃

12. Optional configuration: frequency/constant water supply system,  PH regulating system, pasteurization system, UV lamp, ozone generator, 7'' PLC touch screen control system, EDI system, mixed bed resin, multi-effect distillation machine.

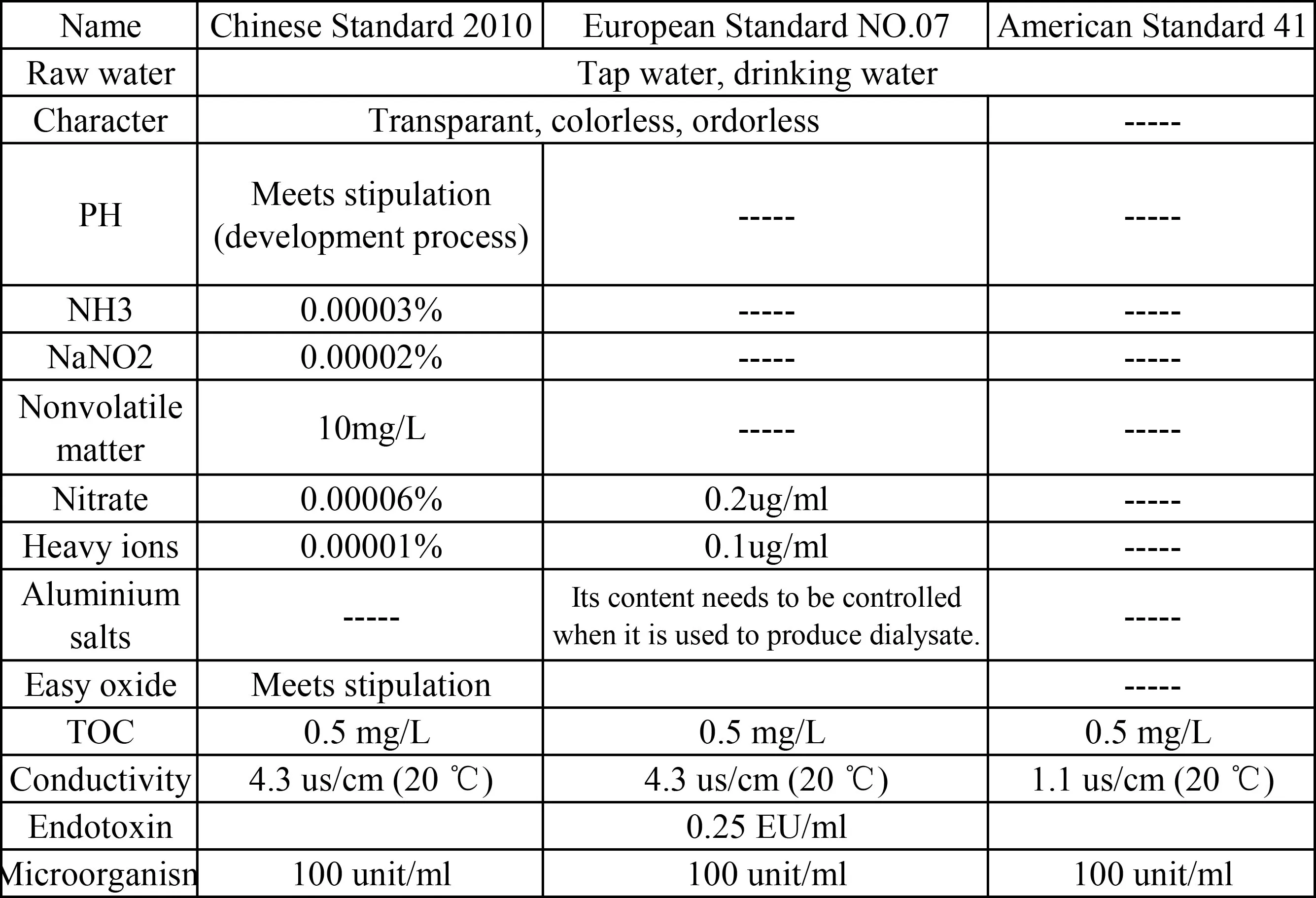

Different Standards of  EDI Ultrapure Water System

The Parameters of EDI Ultrapure Water System

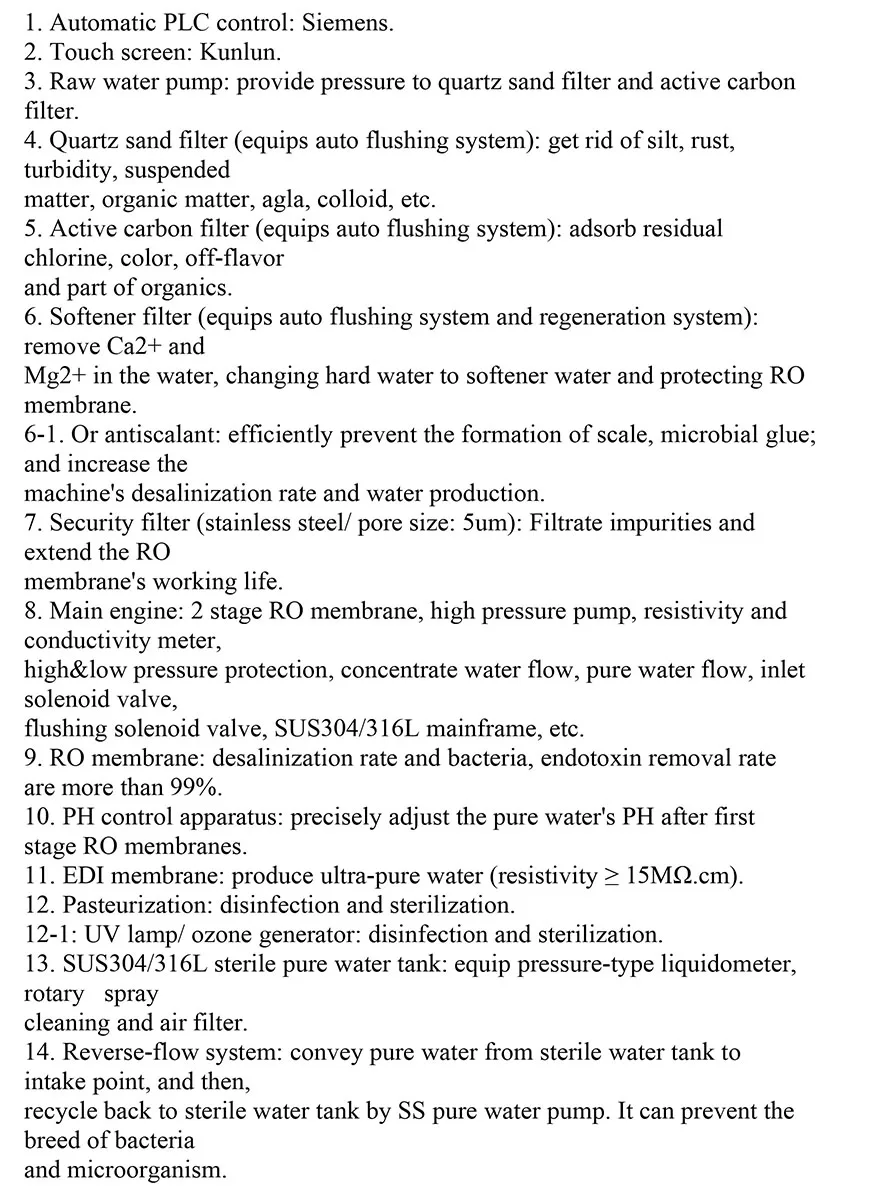

The Working Process of EDI Ultrapure Water System

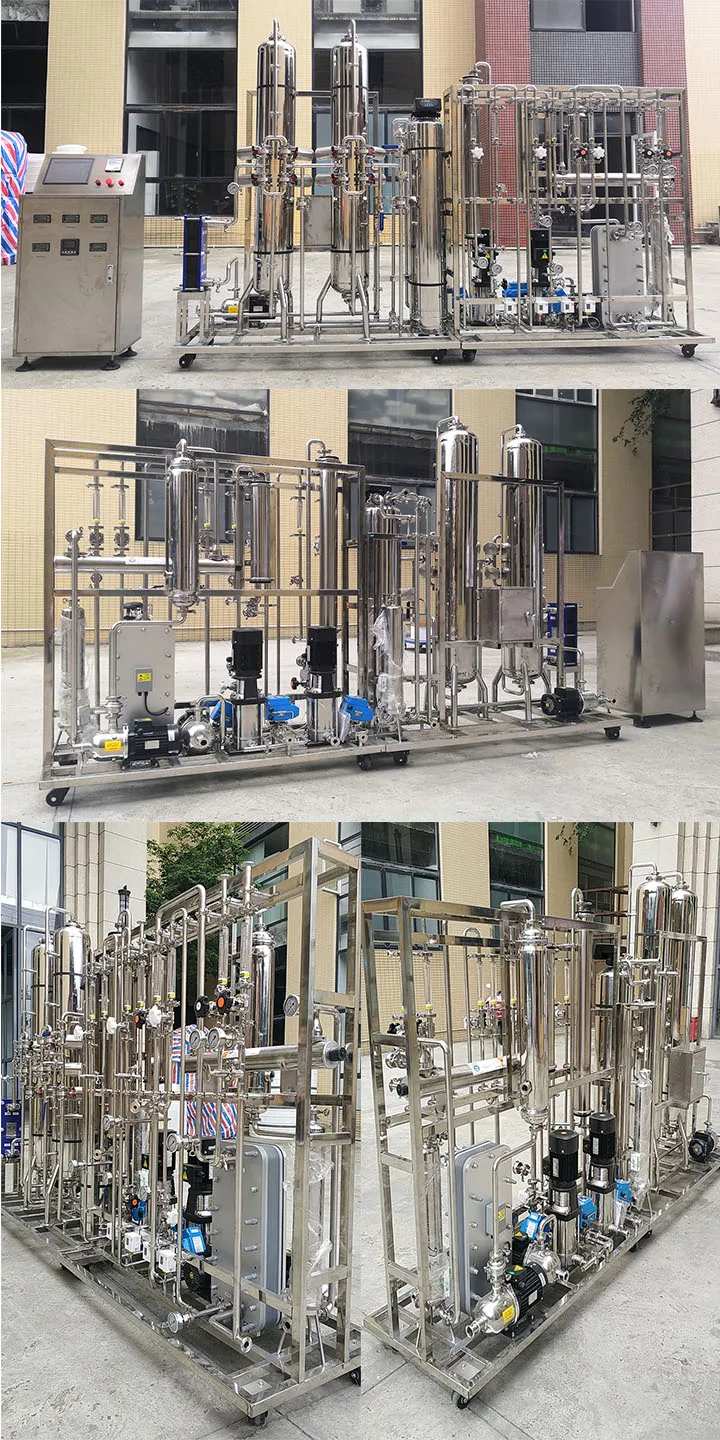

More Details of EDI Ultrapure Water System

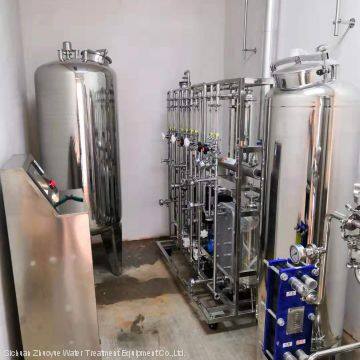

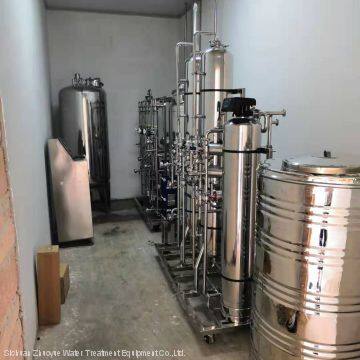

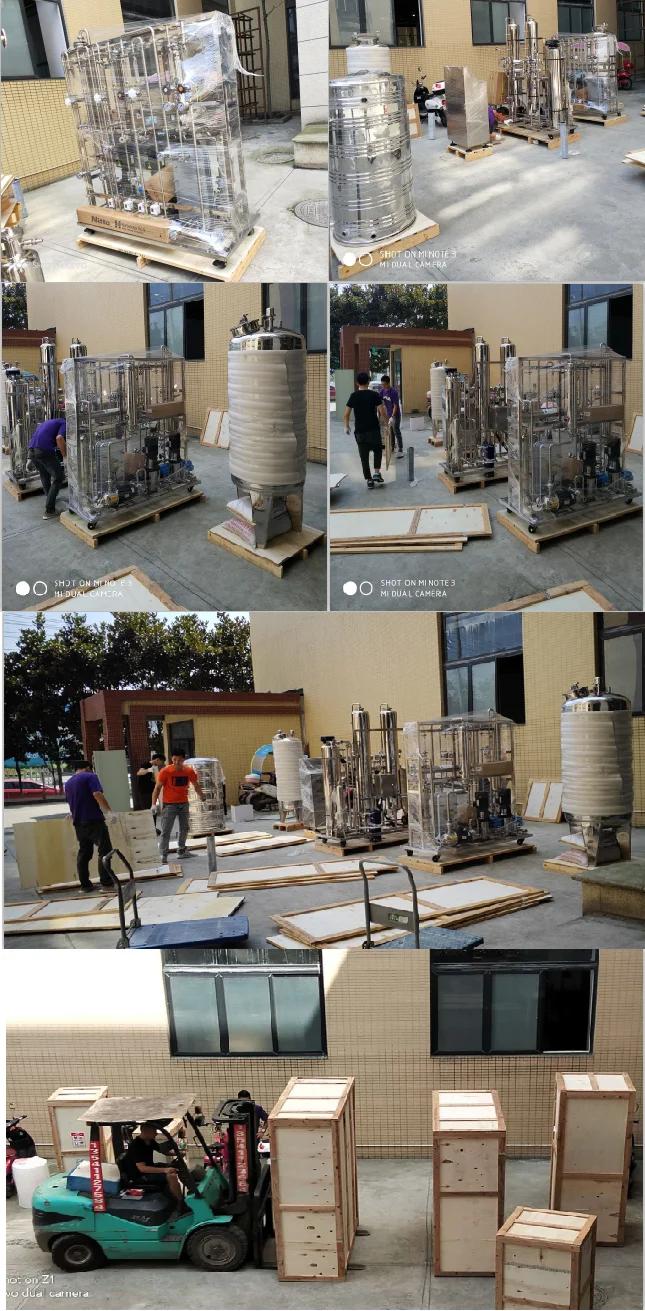

Reference Photoes of Ultra Pure Water Machine
