PVC/UPVC Glazed Corrugated Roof Tile Making Machine Production Line

Plastic PVC / UPVC corrugated glazed roofing tile making extrusion production machine

1. Application and Characteristic of Plastic PVC / UPVC corrugated glazed roofing tile making extrusion production machine
1.1. PVC wave tile width: 880mm or 1040mm, thickness is 1-3mm. (custom produce is available)
1.2. We offer formula guide and staple raw material purchase.
1.3. Professional analyzing and design by considering production cost and tiles's performance.

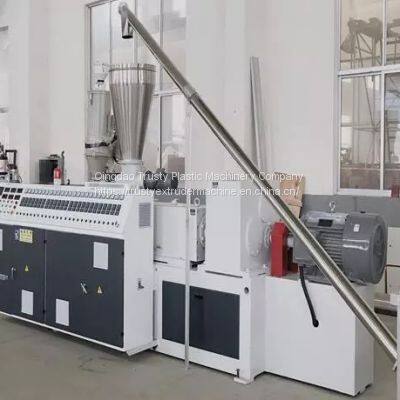

Plastic PVC / UPVC PMMA / ASA PP PET roof tile extruder machine consists conical twin screw extruder SJZ80/156, SJ-50/30 co-extruder, extruding tools, forming machine for main tile and ridge tiles, haul-off, cutter and stacker.

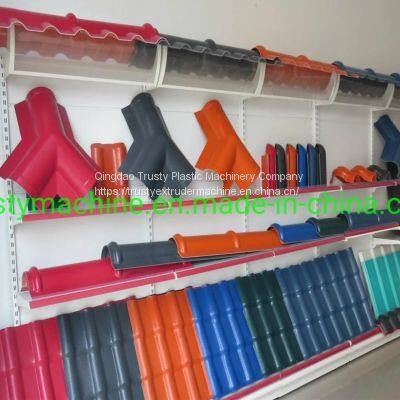

2. Advantages of PVC wave roof tile, which produced by our Plastic PVC / UPVC corrugated glazed roofing tile making extrusion production machine
Wave plate has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.villa



3. Plastic PVC / UPVC corrugated glazed roofing tile making extrusion production machine list

3.1) SJSZ-80/156 Conical twin screw extruder	One unit
3.2) SJ-50/30 Single screw extruder
3.3) Hopper type drying unit
3.4) mould and distributor
3.5) Two roller calendar

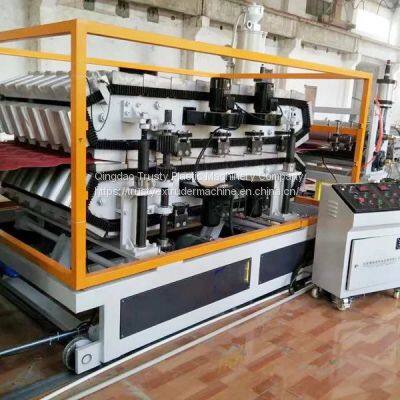

3.6) roof forming unit
3.7) Cutting unit
3.8) Stacker
3.9) ridge roof mould
3.10) oven
3.11) Compressing unit
3.12) Flat board haul off unit
3.13) Electrical unit

4. Technical parameters

Model	SJSZ-80/156 + SJ-50/30
Products width(mm)	880mm/1040mm
Products Thickness(mm)	1mm-3mm
Pitch of waves(mm)	160
Wave Length(mm)	220
Wave Height(mm)	30
Extruder Power(kw)	55
Max extrusion capacity(kg/h)	300-400

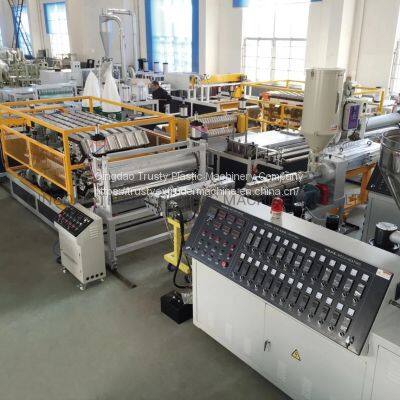

    Photos ofPlastic ASA PVC corrugated /wave roof tile making extrusion machine

Company Profile

Qingdao Trusty Plastic Machinery Co., Ltd. focus on plastic extrusion machnes including:PVC/UPVC wave roof tile extrusion line, PVC door and window profile extrusion line, WPC wood-plastic profile extrusion line, PVC wall panel extrusion line, PVC/PE/PPR pipe extrusin line, PVC/WPC crust foam board extrusion line, PE/PP/PC hollow sheet extrusion line, PVC roof tile extrusion line and PET packing belt extrusion line, etc.

And our extrusion lines are widely exported to Brazil, Chile, Mexico, the Philippines, Italy, Russia, Pakistan, Vietnam, India, Algeria, Egypt and other countries

After Sales Service

1. After the machines are finished, the seller will test all machines before shipment. If the buyer can not
     come to test the machine, we will test the machines and send the sample to buyer.
2. After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install
      the machine and train workers for buyer.
3. We will supply all electricity drawing, machine installation drawing.
4. When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
