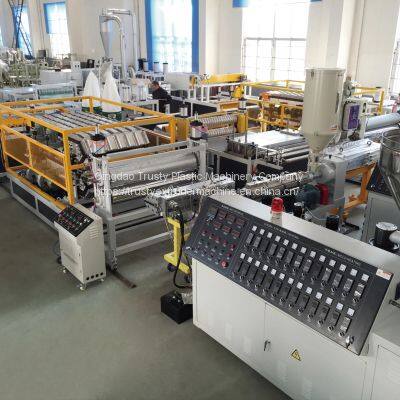

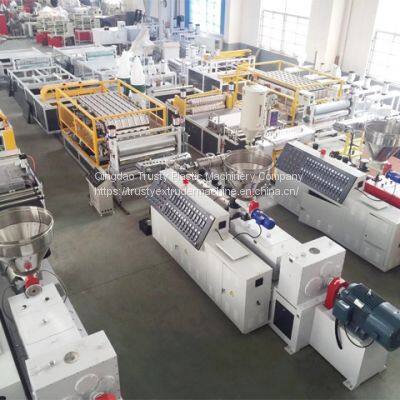

PVC/UPVC Glazed Corrugated Roof Sheet Extruder Machine Production Line
US$ 45000 - 68000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Trusty
Place of Origin:
China
Model Number:
TPM80156
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PVC+ASA Corrugated Wave Roof Sheet Extrusion Machine Production LineUS$ 41000 - 56000MOQ: 1 Set -
PVC / WPC Wood Composite Crust Foam Board Production Line for FurnitureUS$ 46000 - 85000MOQ: 1 Set
-
PP/PE /PC Plastic Hollow Plate/Board/Sheet Extruder Machine Production LineUS$ 53000 - 88000MOQ: 1 Set
-
PVC/UPVC Glazed Corrugated Roof Tile Making Machine Production LineUS$ 51000 - 67000MOQ: 1 Set
-
SPC Floor/PVC Imitation Marble Sheet Extrusion Machine Production LineUS$ 56000 - 83000MOQ: 1 Set
Brand Name
Trusty
Place of Origin
China
Model Number
TPM80156
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Voltage
380V,50Hz,3p or Customized
Application
Plates
Condition
New
Plastic Processed
PVC
Screw Design
Double-screw
PVC/ASA Twin Screw Extruder Glazed Roof Tile Making Machine
Qingdao Trusty Plastic Machinery Company is a professional company specialize in designing and manufacturing plastic extrusion machine. We introduced and absorbed the advanced plastic processing technology, which can provide the technology and machinery one-step service.
Our company's main products are: PVC door and window profile production line, WPC wood-plastic profile production line, PVC wall panel production line, PVC/PE/PPR pipe production line, crust-foamed board production line, PE/PP/PC hollow sheet production line, PVC roof tile production line and PET packing belt production line, etc. According to customers' needs, to achieve diversified processing customization.
Usual sheet width:
880mm, 1050mm
2.5mm, 2.8mm, 3.0mm
Feature:
1. Optional to adopt conical twin screw extruder and parallel twin screw extruder
2. Supply formula guide and staple raw material purchase
3. Professional analyzing and design by considering production cost and tile's performance
4. Single layer or A+B/ A+B+C/ A+B+A layers available
1. Optional to adopt conical twin screw extruder and parallel twin screw extruder
2. Supply formula guide and staple raw material purchase
3. Professional analyzing and design by considering production cost and tile's performance
4. Single layer or A+B/ A+B+C/ A+B+A layers available
Raw material & Final product
| Raw material & formulation | PVC resin, Caco3, lubricant,stabilizing agent, pigment, anti-ultraviolet agent,Pigment etc |
| Central height: | 1000mm |
| Max. Haul-off speed: | 4m/min |
| Operation direction | From right to left (face to the operation panel) |
| Machine color | Blue or as per your request |
| Description final product & Output capacity | Single layers UPVC Roofing tile; Width:880 or 1040mm,Thickness: 1~4.0mm; Wave distance:180mm; Wave height:30mm; Output:250-400kg/h(Depending on CaCO3 proportion) |
Machine List
| Item | Name | Model |
| 1 | Conical twin screw extruder | SJSZ-80 |
| 2 | Single screw extruder | SJ-45X30 |
| 3 | Hopper type drying unit | STG-25 |
| 4 | Extruding mould and distributor | PM1200 |
| 5 | Two roller calender | YH-1200 |
| 6 | Decking roof forming unit | ZSW-1050 |
| 7 | Cutting unit | QG-1100 |
| 8 | Stacker | LJ-6000 |
| 9 | ridge roof mould | One unit |
| 10 | oven | One set |
| 11 | Compressing unit | One set |
| 12 | Flat board haul off unit | One set |
| 13 | Electrical unit | 1 unit |
Technical Parameter
| Motor Model | SJSZ-80/156 + SJ-50/30 |
| Products width(mm) | 880/1050 |
| Products Thickness(mm) | 2mm-3mm |
| Pitch of waves(mm) | 160 |
| Wave Length(mm) | 220 |
| Wave Height(mm) | 30 |
| Extruder Power(kw) | 55 |
| Max extrusion capacity(kg/h) | 300-400 |
After Sales Service
(1)After the machines are finished, the seller will test all machines before shipment. If the buyer can not come to test the machine, we will test the machines and send the sample to buyer.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
(2)After shipment, the seller will send one or two technicians to the buyer' s factory to help the buyer install the machine and train workers for buyer.
(3)We will supply all electricity drawing, machine installation drawing.
(4)When make shipment, we will put some spare electricity parts for free, like the barrel hearers, thermcouples, breakers, relays, and other items which is easier broken.
