Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > High Efficency Energy Saving PE Pipe Extrusion Machine
US$ 45000 - 68000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Trusty
Place of Origin:
China
Model Number:
TPM75
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Plastic PVC Pipe Making Extruder Production LineUS$ 41000 - 69000MOQ: 1 Set -
Factory Supply HDPE/LDPE/PE Pipe Extrusion Making MachineUS$ 38000 - 66000MOQ: 1 Set
-
Factory Price Single Screw Mbbr Filter Media Production LineUS$ 36000 - 66000MOQ: 1 Set
-
COD HDPE Cable Communication Protect Pipe Production LineUS$ 47000 - 73000MOQ: 1 Set
-
Recycled Single Screw Mpp Pipe Extruder Machine Production LineUS$ 31000 - 46000MOQ: 1 Set
Brand Name
Trusty
Place of Origin
China
Model Number
TPM75
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Voltage
380V,50Hz,3p or Customized
Application
Pipe
Condition
New
Plastic Processed
PE
Screw Design
Single-screw
Product Description
Plastic PE PP PPR PVC Water Pipe Extrusion Line / Corrugated Pipe Tube Hose Making Machine / Plastic Pipe Manufacturing Plant / Production Line
Plastic PPR HDPE Pipe Machine/Plastic Corrugated Pipe Tube Machine/Plastic Pipe Production Line/Plastic Pipe Manufacturing Plant/PVC Pipe Making Machine
Qingdao Trusty Plastic Machine Company is the proffesional manufacturer for plastic extrusion line located in Qingdao city China. The company specially good at different type of plastic pipe making machine.
Main parameter of PVC pipe production line extruder machine
| Extruder model | SJSZ-50/105 | SJSZ-55/110 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
| Driving motor (kw) | 15 | 37 | 37 | 55 | 90 |
| Pipe diameter range(mm) | 16-40 | 20-110 | 50-200 | 200-400 | 400-630 |
| Water pump | 3kw | 4kw | 5.5kw | 5.5kw X 2pcs | 7.5kw X 2pcs |
| Vacuum pump | 2.2kw X 2pcs | 4kw | 4kw | 4kw X 2pcs | 7.5kw 5.5kw X 2pcs |
| Caliber Length(mm) | 5000 | 6000 | 6000 | 8000 | 6000, 3000 |
| Water cooling tank | No | No | 5000 | 6000 | 100000 |
| Hauling motor | 0.75kw 4pcs | 2.2kw | 3.7kw | 7.5kw | 18.5kw |
| Hauling belt | 4pcs | 2pcs | 2pcs | 4pcs | 6pcs |
| Cutting motor | 1.1kw 2pcs | 2.2kw | 3.7kw | 3.7kw | 3.7kw |
| Inverter brand | ABB | ABB | ABB | ABB | ABB |
| Contactor brand | Schneide | Schneide | Schneide | Schneide | Schneide |
Main parameter of PE pipe production line extruder machine
| Pipe Diameter | 16-63 | 32-125 | 75-250 | 110-450 | 315-630 | 315-800 |
| Extruder | 65/33 | 75/33 | 90/33 | 120/30 | 120/33 | 150/33 |
| Cavity | single strand | single strand | single strand | single strand | single strand | single strand |
| Downstream | LG63 | LG125 | LG250 | LG450 | LG630 | LG800 |
| Total power(kw) | 70 | 150 | 230 | 380 | 550 | 800 |
Single Screw Extruder
There is 45/33,65/30,65/33,75/30,75/33 ... etc extruders according diameters and ouput.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality sheet extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system.
There is 45/33,65/30,65/33,75/30,75/33 ... etc extruders according diameters and ouput.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality sheet extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel >940, the surface of screw is chromeplated Feeding bush with water cooling system.
Pipe Extrusion Die head
The die head is made by 38Cr moulds materials.
Using mica heating way
The die head is made by 38Cr moulds materials.
Using mica heating way

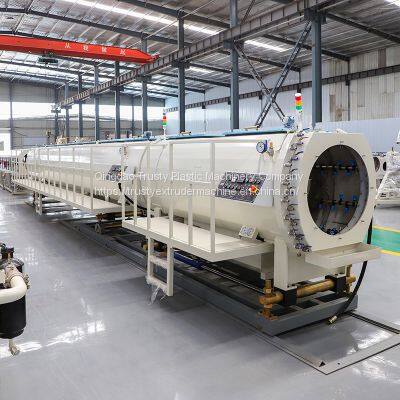

Pipe Vacuum Tank
It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe surface.
It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe surface.

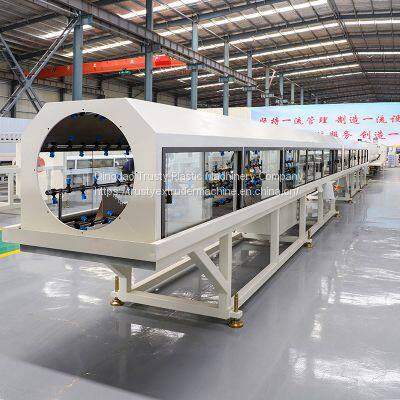

Water cooling tank
it is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.
it is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.

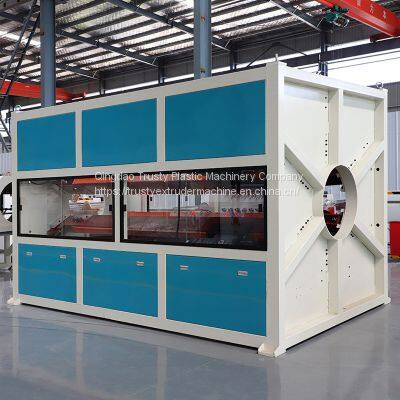

Hual off units
It could be rubber belt or rubber block clamping way.
2 claw, 3 claw, 4 claw ,6 claw, 8 claw, 12 claw made according pipe diameter
It could be rubber belt or rubber block clamping way.
2 claw, 3 claw, 4 claw ,6 claw, 8 claw, 12 claw made according pipe diameter

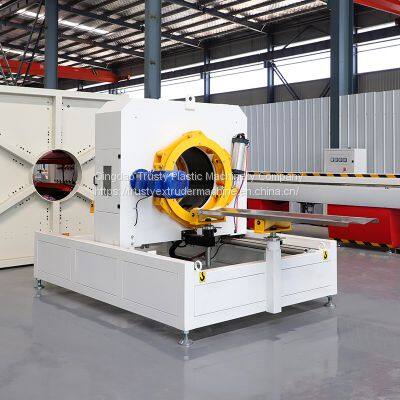

Cutting Machine
Always it is no dust cutting way. The blades will cut the pipe by rotating way with pneumatic powder
Always it is no dust cutting way. The blades will cut the pipe by rotating way with pneumatic powder
Stacking Machine
Length 6000mm
Stacking way:Pneumatic
Length 6000mm
Stacking way:Pneumatic
