Brand New Hangzhou Advance GWL Series Marine Gearbox for Ship Boat

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Business Type:

Manufacturer

Year Established:

2018

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Jingjiang Fuji Technology Co., Ltd.

4Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

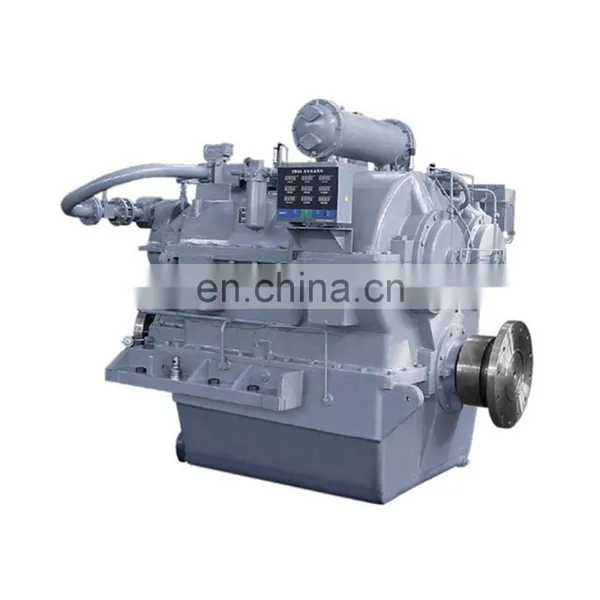

Brand new Advance marine gearbox

GW gearboxes have 6 series, each of which has 10 models. The GWC, GWD, GWS and GWH have the function of reverse and reduction, and the GWL and GWK without reversing function. Input and output shafts can be arranged coaxial or offset (vertically, horizontally or diagonally). The gearboxes have adapted to combined design, and all running parts have been carefully designed and machined to the highest standards for less wasted fuel, smooth operation which can be fitted to most engine models. GW series has been approved by the classfication societies such as CCS, BV, ABS, LR, DNV&GL etc.

Model:	GWL28.30
Type:	Marine Gearbox
Input Speed(r/min):	400~1800
Reduction Ratio(i):	2.06~6.14
Trans. Capacity(kW/r·min-1):	0.781~0.262
Rated Thrust:(kN)	80
Net Weight(kg):	1070
Certification selection:	CCS, BV, GL, LR, ABS, NK,
Lead Time:	15-30 working days
Payment Terms:	T/T ,L/C

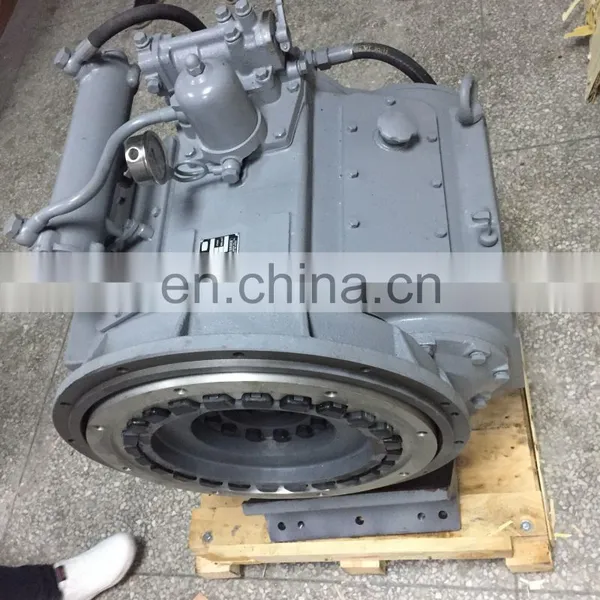

Detailed Image

GWL–series Marine Gearbox
Model	Input Speed (r/min)	Reduction Ratio (i)	Trans. Capacity (kW/r·min-1)	Rated Thrust (kN)	Net Weight (kg)
GWL28.30	400~1800	2.06~6.14	0.781~0.262	80	1230
GWL30.32	400~1800	2.03~6.05	1.066~0.346	100	1460
GWL32.35	400~1800	2.06~6.08	1.346~0.448	113	2250
GWL36.39	400~1800	1.97~5.97	1.838~0.610	140	3000
GWL39.41	400~1600	1.98~5.99	2.397~0.757	175	3250
GWL42.45	400~1600	2.00~5.93	3.147~1.044	220	3980
GWL45.49	400~1400	1.97~5.98	4.102~1.353	270	5280
GWL49.54	400~1200	1.94~6.00	5.412~1.721	284	7900
GWL52.59	400~1200	1.93~5.93	7.059~2.265	300	9800
GWL52.62	400~1200	2.02~5.95	7.326~2.486	300	10700
GWL60.66	400~1200	2.01~6.12	9.250~3.029	450	15000
GWL60.74	400~1200	1.99~6.94	10.449~2.998	550	18000
GWL66.75	300~900	2.05~6.12	13.462~4.514	700	22000
GWL70.76	300~1000	2.05~6.12	13.462~4.514	700	15000
GWL70.85	300~900	1.98~6.05	19.2~6.269	800	30000
GWL75.90	200~1100	2.01~6.02	22.423~7.489	980	34000
GWL78.88	200~800	2.04~6.09	19.101~7.831	1000	35000
GWL80.59	200~800	1.98~5.93	28~9.33	1200	40000
