Home > Industrial Equipment & Components > Power Transmission Parts > Gearbox > Hangzhou Advance Marine Gearbox MB242
Hangzhou Advance Marine Gearbox MB242
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Genuine Advance D300A Marine Gearbox for ShipNegotiableMOQ: 1 -
Genuine Advance MB242 Marine Gearbox for ShipNegotiableMOQ: 1
-
Genuine Advance Marine Gearbox MB242 for Marine EngineNegotiableMOQ: 1
-
Advance HC138 Marine Engine Gear Box Gear Ratio1.48:1-4:1NegotiableMOQ: 1
-
Advance Hc138 Marine Engine Gear Box Reduction Ratio 3:1NegotiableMOQ: 1
Product Description

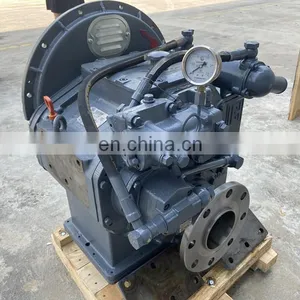

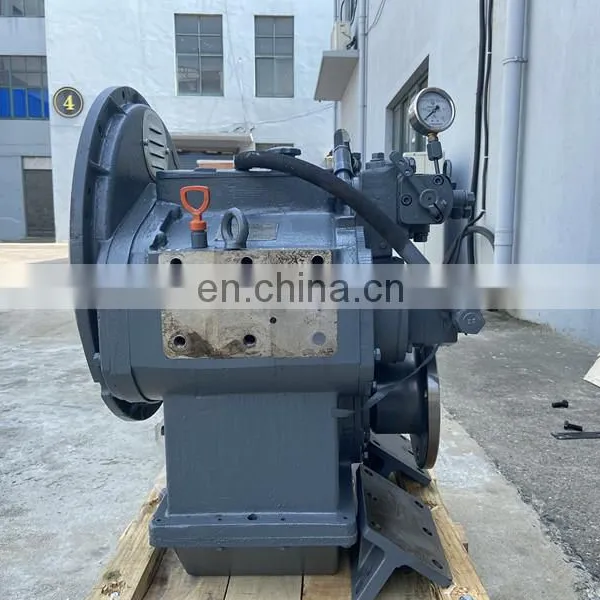

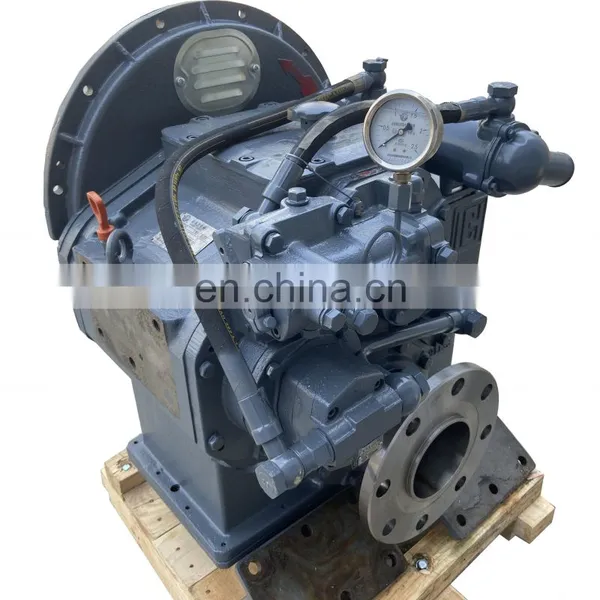

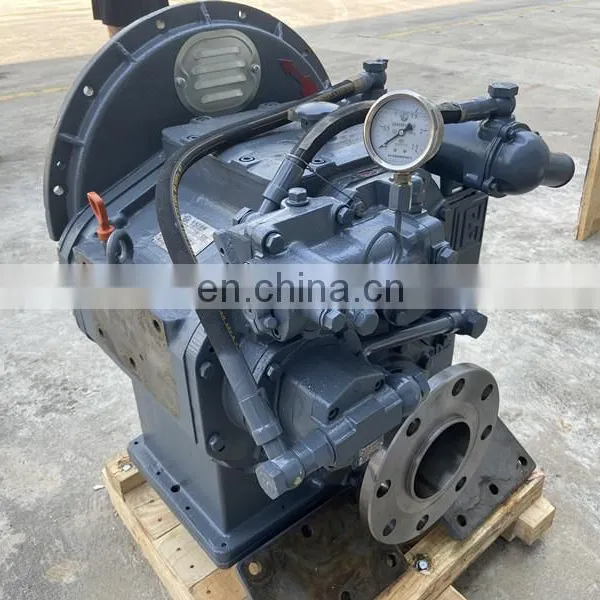

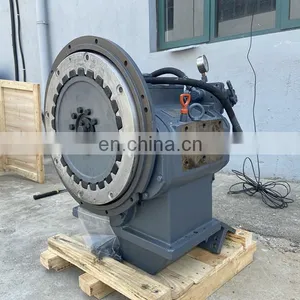

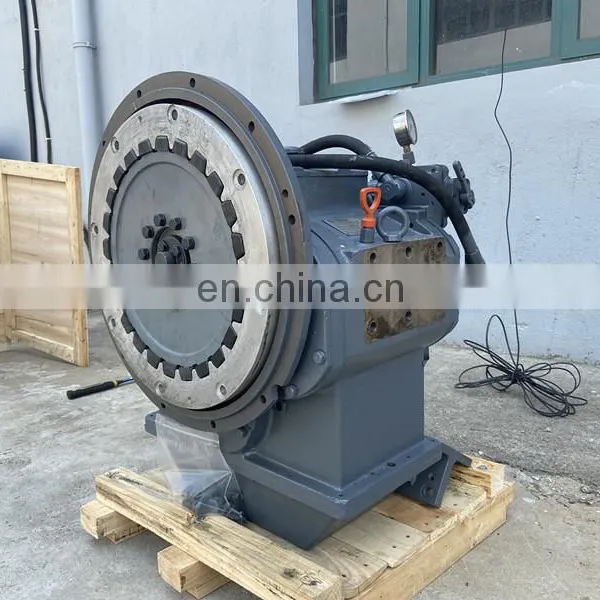

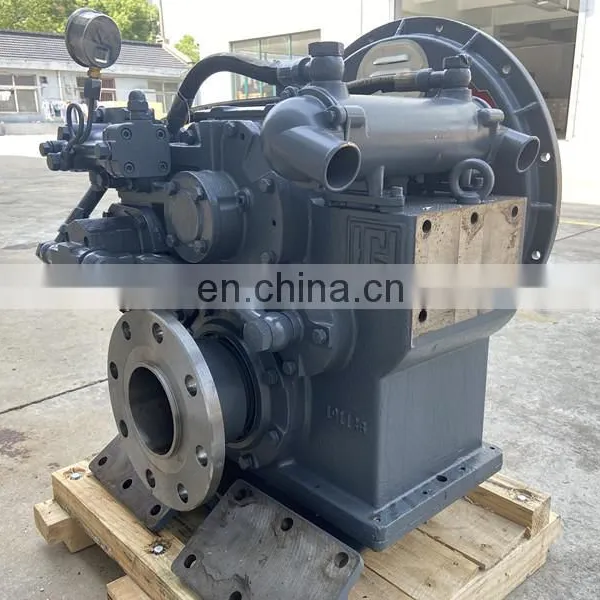

Hangzhou Advance marine gearbox MB242
HC series marine gearbox can be matched to engine and CPP to form main propulsion system of ship, widely used in cargo, oil and container vessels. Control pneumatically or electrically.
Main features:
1. Possess functions of clutch & de-clutching, speed reduction and bearing propeller thrust;
2. Modular design, with PTO and PTI functions;
3. Alternative structure to meet engine room arrangement requirement;
4. Mature and reliable hydraulic control series to satisfy control request on gearbox conditions and multiple clutches;
5. Apply mechanical and automatic control, realizing local emergent control and remote control of the gearbox;
6. Non-standard design is available on request; 7. CPP distributor could be installed at front end of gearbox output on demand.
1. Possess functions of clutch & de-clutching, speed reduction and bearing propeller thrust;
2. Modular design, with PTO and PTI functions;
3. Alternative structure to meet engine room arrangement requirement;
4. Mature and reliable hydraulic control series to satisfy control request on gearbox conditions and multiple clutches;
5. Apply mechanical and automatic control, realizing local emergent control and remote control of the gearbox;
6. Non-standard design is available on request; 7. CPP distributor could be installed at front end of gearbox output on demand.
Product name |
Hangzhou Advance marine gearbox MB242 for boat |
Ratio |
2.00,2.54,3.04,3.52,3.95,4.53 |
Center distance |
242mm |
Rated propeller thrust |
30KN |
Input speed |
1000-2500RPM |
Flywheel size |
SAE 14,11.5 |
Weight |
385KG |
Package |
Wooden case |
Warranty |
12 months |
Application |
inboat,ship |
Detailed Image
