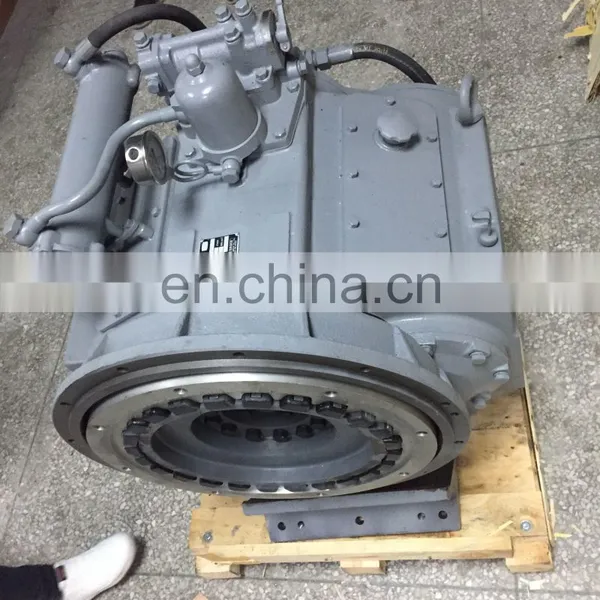

Brand New Hangzhou Advance MV100A Light High-speed Marine Gearbox for Ship Boat photo-2

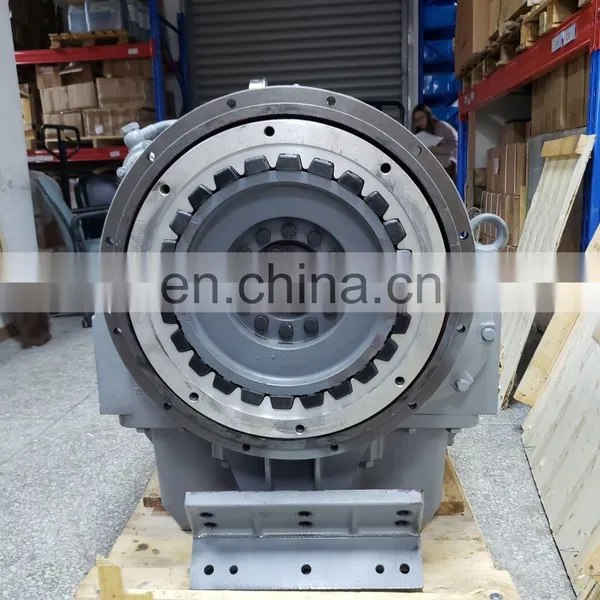

Brand New Hangzhou Advance MV100A Light High-speed Marine Gearbox for Ship Boat photo-3
Brand New Hangzhou Advance MV100A Light High-speed Marine Gearbox for Ship Boat photo-4

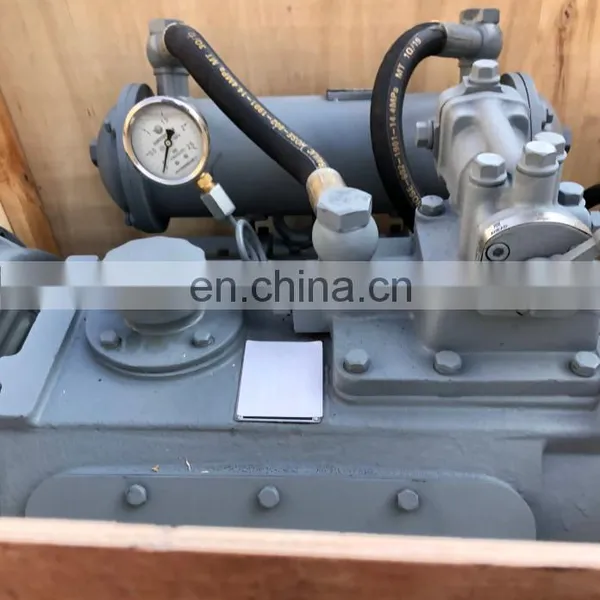

Brand New Hangzhou Advance MV100A Light High-speed Marine Gearbox for Ship Boat photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

Brand new Advance marine gearbox

MV100A marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Angle between input and output is 7°at different side, which makes it suitable for special engine layout. /HCA/HCM/HCV series light high-speed marine gearboxes self-developed by the company are designed of power ranging 20kW~2300kW, ratio ranging 1.5~3.5:1 and complete in specifications. Product with ‘Q’ in code is with cast iron housing, with ‘M’ aluminum housing and with ‘A’ and ‘V’ with down angle transmission structure. These products enjoy high market share, are widely used on various yacht, traffic boat, passenger boat. Product design and manufacturing capability are in national leading and international advanced level.
Main features:
1. Possess functions of clutch & de-clutching, speed reduction and bearing propeller thrust;
2. Compact in structure, small in volume and light in weight;
3. High rated input speed and high manufacturing precision;
4. Good complete-machine performance, low noise and small vibration;
5. Match high-speed diesel engine, mainly used on medium-to-small high-speed boats;
6. Apply mechanical and automatic control, realizing local emergent control and remote control of the gearbox.

Marine Gearbox Model:
MV100A(7°Down Angle)
Input Speed(r/min):
1000-3000
Reduction Ratio(i):
1.23 1.28 1.62 2.07/2.56/2.87
Trans. Capacity(kw/rpm):
0.10/0.09/0.08
Rated Thrust(KN):
20
Center Distance(mm):
0
Control Way:
Push-and-pull flexible shaft
Flywheel :
6135Ca SAE14 11.5
Bell Housing:
6135Ca SAE1 2 3
Certification selection:
CCS, BV, GL, LR, ABS, NK,
Lead Time:
15-30 working days
Payment Terms:
T/T ,L/C
MEDIUM-LOW POWER SERIES
Model
Input Speed (r/min)
Reduction Ratio(i)
Trans. capacity(kw/rpm)
HC027
1500-3200
1.50 1.96 2.48/3.0/3.48
0.019/0.018/0.014
HC038A
1500-3200
1.51 2.032.52/2.92/3.45
0.028/0.025/0.02
HC35
1500-3000
1.5 2.04 2.48/3/3.32
0.03/0.026/0.022
HC65
1000-2500
1.53 2.03 2.5/2.96 3.5
0.048/0.044
MV100A
1000-3000
1.23 1.28 1.62 2.07/2.56/2.87
0.10/0.09/0.08
HCV120
1500-2500
1.509 2.016/2.524
0.10/0.076
HCQ138
1000-2600
1.03 1.28 1.50 2.03 2.48/2.95
0.11/0.098
HCA138
1000-2600
1.095 1.28 1.5 2.03 3.24/3.0
0.11/0.098
HC200
1000-2200
1.48 2.00 2.28
0.147
HC201
1000-2500
2.48 2.96/3.53
0.147/0.132
HCV230
1000-2200
1.49 1.96 2.48
0.184/0.170/0.146
