Product introduction
DYZC-10B hand-held DC resistance tester, also known as transformer DC resistance tester, DC resistance quick tester and grounding continuity tester, is safe, precise and reliable with microprocessor technology and four wire method. It is mainly used to measure the resistance of transformer winding, winding resistance of transformer, continuity test of grounding downlead, wire resistance of cable, contact resistance of switch, connector, relay, coil, motor, as well as the connection resistance between metal components of equipment shell, lightning strip, ground beam, structure, cabinet, steel bar, water pipe, window, guardrail, radiator, assembly line and other objects. It is widely used in telecommunications, electricity, meteorology, machine rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, lightning rods, etc.

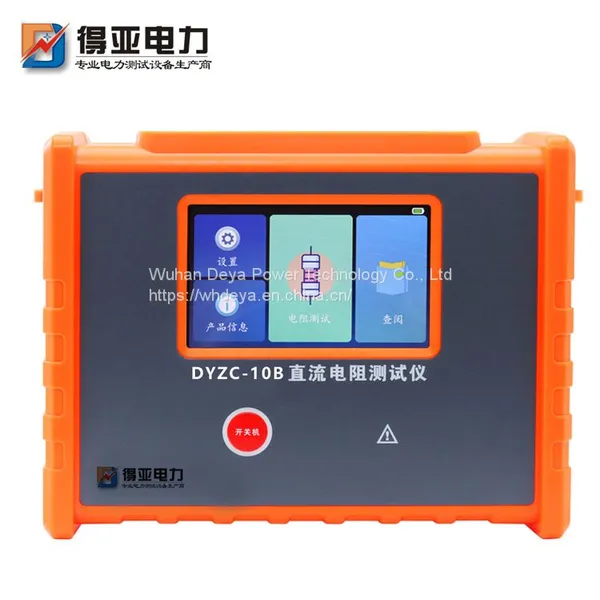

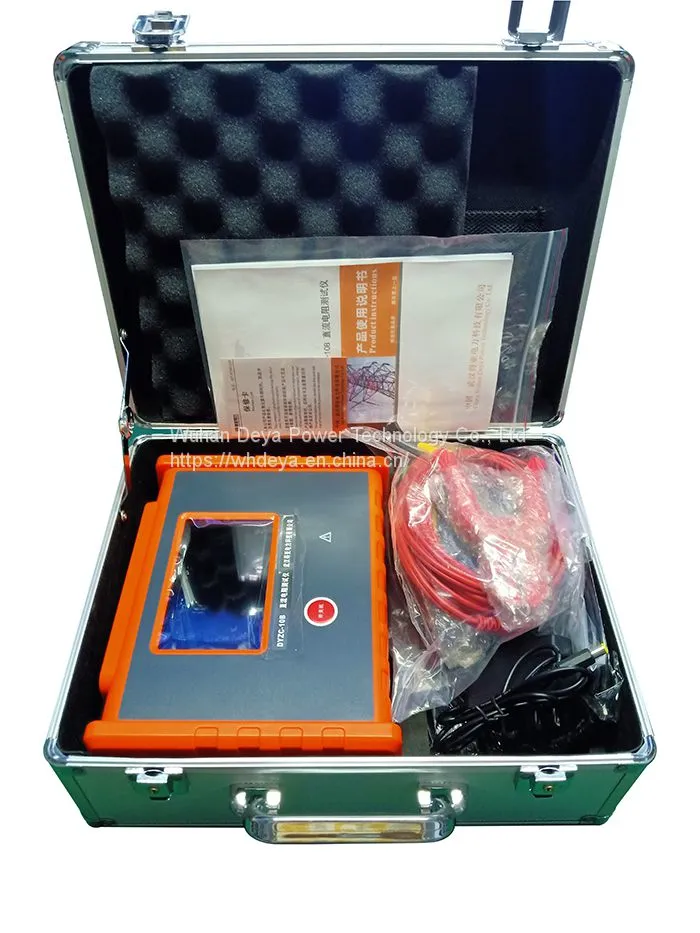

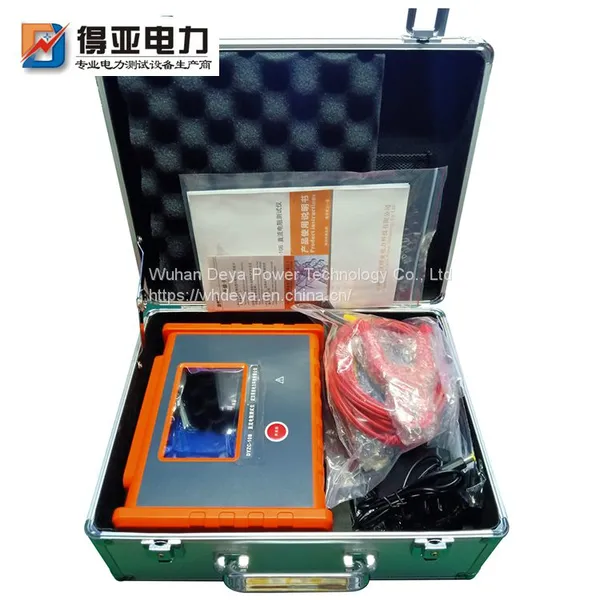

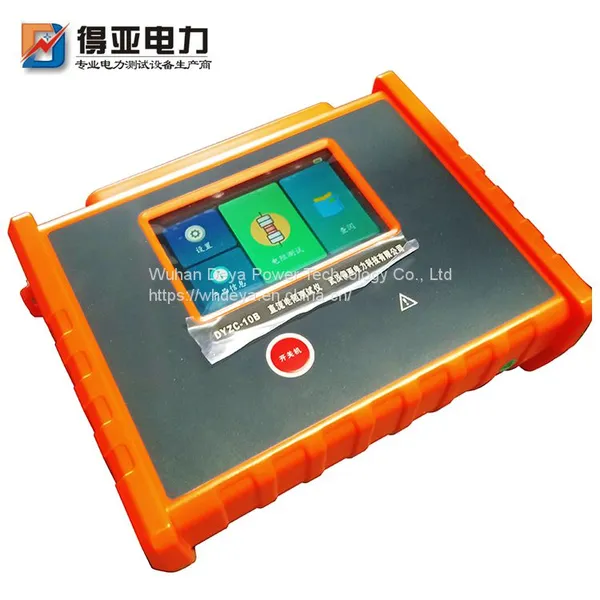

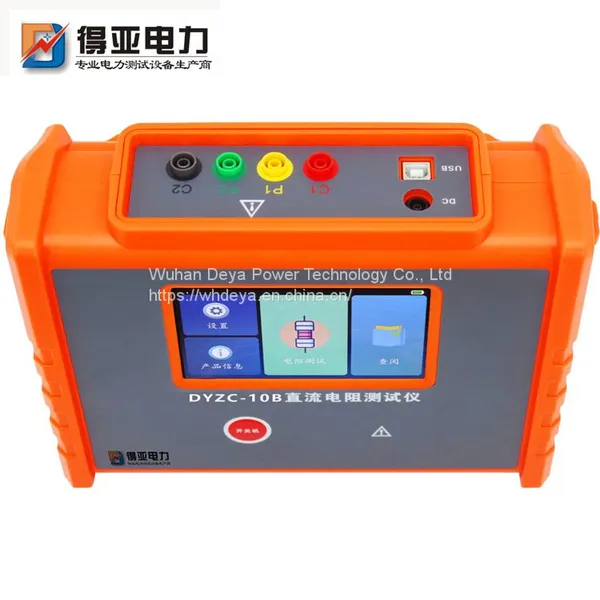

DYZC-10B hand-held DC resistance tester consists of host, monitoring software, test line, communication line, etc. The hand-held portable design of the host is convenient for on-site application, with charging function without on-site power search, full-color large screen LCD display, easy to use touch screen operation, and port overload prevention function. Large capacity storage of 500 groups of data, resistance measurement range: 10.0u Ω - 50.00K Ω, measurement accuracy: ± 0.2% FS ± 10dgt. The upper computer software has the functions of reading, looking up, saving and reporting historical data.
Range and accuracy
| Measuring current | measuring range | accuracy | resolving power |
| 10A | 10.0uΩ~1000.0uΩ | ±0.2%FS±10dgt | 0.1uΩ |
| 1.00mΩ~100.00mΩ | ±0.2%FS±10dgt | 0.01mΩ | |
| 5A | 100.0mΩ~1000.0mΩ | ±0.2%FS±10dgt | 0.1mΩ |
| 1A | 1.000Ω~10.000Ω | ±0.2%FS±10dgt | 0.001Ω |
| 0.1A | 10.00Ω~100.00Ω | ±0.2%FS±10dgt | 0.01Ω |
| 10mA | 100.0Ω~1000.0Ω | ±0.2%FS±10dgt | 0.1Ω |
| 1mA | 1.000KΩ~10.000KΩ | ±0.2%FS±10dgt | 0.001KΩ |
| 10.00KΩ~50.00KΩ | ±0.2%FS±20dgt | 0.01KΩ | |
| Note: Reference condition of error range in the above table: 25 ºC± 5 ºC, maximum error under working environment0.5%FS±10dgt. | |||
