Home > Products > Accessories > JORC Ultra high Pressure Auto Drain Solenoid Valve with Timer 250 Bar
JORC Ultra high Pressure Auto Drain Solenoid Valve with Timer 250 Bar
- T/T Credit Card
You May Like
-
Wholesale high quality measuring water, gas and oil High precision manometer Air Pressure Gauge
-
Wholesale Factory direct supply top quality Industrial Oil Pressure Gauges 0-300 PSI
-
Hot sell Zero Loss Automatic electronic solenoid drain valve for big capacity compressor air dryer
-
Auto Drain Valve for High Pressure Compressor 40 bar air dryer machine
-
HIROSS auto drain valve for screw air compressor spare parts
-
HIROSS 1/2\" air compressor drain solenoid valve
Product Description

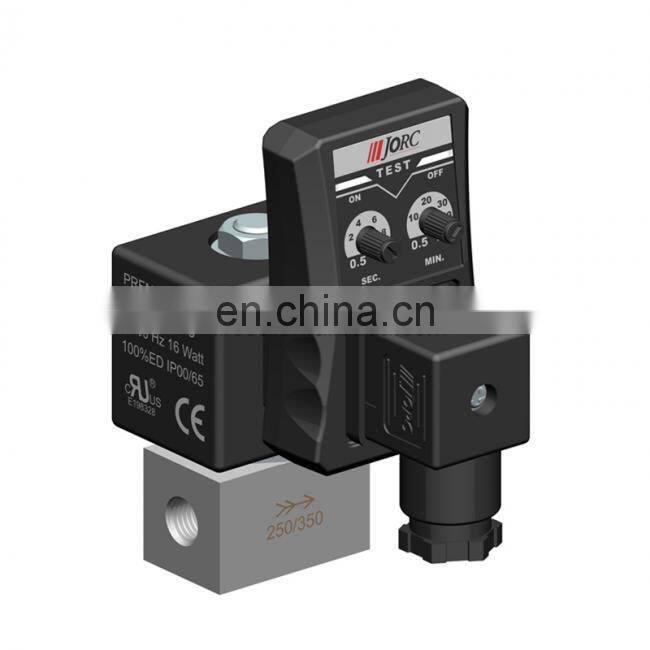

JORC Auto Drain Solenoid Valve
The MIC-HP250 ultra-high pressure electronic drainage valve is matched with the analog circuit solid-state electronic timer and the solenoid valve to realize the timing and automatic discharge of condensed water in the compressed air system.MIC-HP250 ultra-high pressure electronic drainage valve is widely used in filters, separators, dryers, gas storage tanks, drip feet and other compressed air system components. The discharge time and interval time can be adjusted according to different needs.
Characters
Imported IC chip, High quality in low price.
A model is suitable for all applications, easy installation, fully automatic and maintenance free.
Interval time and discharge time is adjustable and have a test button.
Pressure 250 Bar, various pressure and port can be choose.
Full stainless steel valve
CE Certificate, level of protection is IP65, insulation grade is H.
Fluororubber seal.
Timer | ||
Interval Time | 0.5-45mins | |
Discharge Time | 0.5-10 seconds | |
Manual Test Switch | yes | |
Supply Voltage | 24-240V AC/DC 50/60Hz( 380V can be customized) | |
Current Consumption | Max. 4mA | |
Oprating Temperature | -40℃~60℃ | |
Environmental protection | IP 65 | |
Case Material | ABS Plastic FR Grade | |
Indicators | Yellow, valve open | |
Yellow, valve closed | ||
Valve | ||
Type | 2/2-way direct acting valve | |
In/Out Ports | 1/4,1/2 female | |
Max. working pressure | 250bar | |
Operating Temperature | 2℃/55℃ ambient | |
Media Temperature | Max.90 ℃ | |
Main body | stianless stell | |
Insulation | Thermal Group H Grade (180 ℃) | |
Environmental protection | IP 65 | |
Supply Voltage | 24V--~240V ±10% 50/60HZ | |
Mounting | in any position | |
About Us
Hiross (Zhangzhou) Industrial Machinery Co.,Ltd, has specialized in Compressed Air Drying and Purifying Equipment for more than 10 years,is a professional manufacturer engaged in the research, development, production, sale and service of refrigerated air dryer,desiccant air dryer,air filter,air filter element,dehumidifier,and other accessories.
We are located in Zhangzhou City with convenient transportation access,only 1 Hour distance to Xiamen Port. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In recent years, our company has obtained I S O 9 0 0 1,C E,G C C A certificates. Selling well in all cities and provinces around China, Our products are available in 30 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, UK, Mexico, Spain, Serbia,Italy, Finland, Australia, Philippines, Pakistan, Thailand, Indonesia, India,Africa.Our products have been widely used in kinds of industry including petroleum, chemical, electric power, food, medical, biological pharmaceutical,textile industry.We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, welcome to contact our customer service center about your sourcing requirements.
Company Profile
Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Contact Us
- Jingjiang Fuji Technology Co., Ltd.
- Contact nameJack Xu Chat Now
- Phone86-188-52690200
- Addressrenminlu
Product Categories
New Products
-
HIROSS auto drain valve compressor parts for air compressor main parts of electronic compressor
-
Hot-selling zero-loss large-capacity automatic electronic solenoid drain valve
-
Electronic Timer Automatic Drain Valve
-
Jorc auto solenoid drain valve for Spare parts for refrigerated air dryer for air compressor
-
1/2\" Electronic Auto Drain Valve with Timer for Air Compressor Condensate
-
HIROSS Air Compressor Auto Drain Valve
-
Auto solenoid drain valve for Spare parts for refrigerated air dryer for air compressor
-
Manometer Liquid Filled Pressure Gauge Wholesale brass pressure gauge manometer
-
Zero gas loss aluminium alloy auto drain valve for air compressor air tank air filter
-
MIC-HP350 Bar Ultra high Pressure Auto Drain Valve
-
HR0912 Hiross Zero Loss Auto Drain Valve for Compressor Air Dryer
-
Auto Drain Valve for High Pressure Compressor 40 bar
-
JORC High Pressure 40bar Auto Drain for Comrpessed Air System
-
Shockproof type stainless steel glycerin filled pressure gauge
-

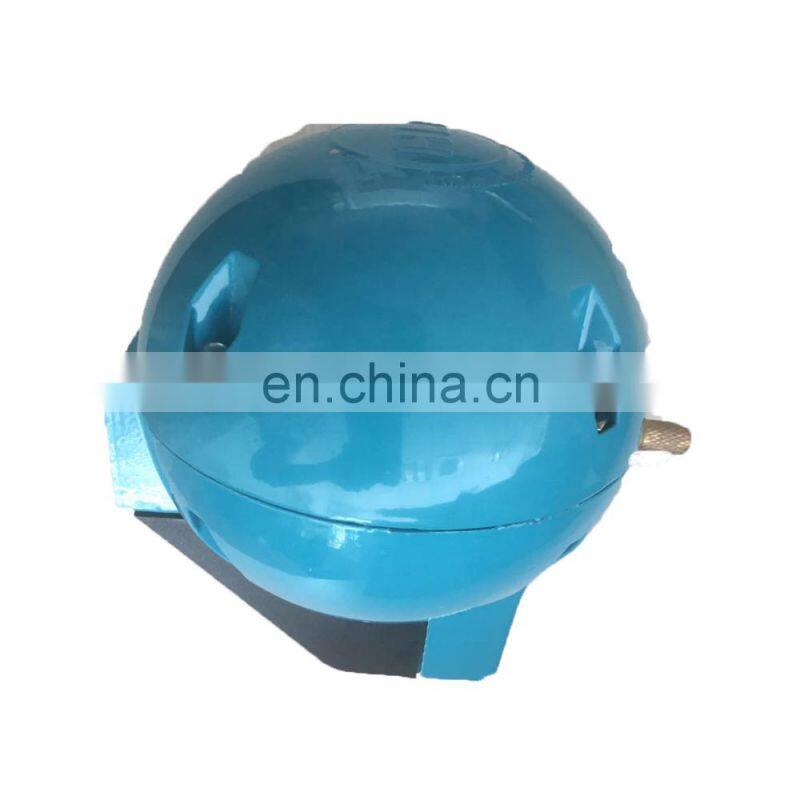

1/2\" BSP float ball Jorc auto drain solenoid valve JAD20
-
Zero Loss Automatic electronic solenoid drain valve for big capacity compressor air dryer
-

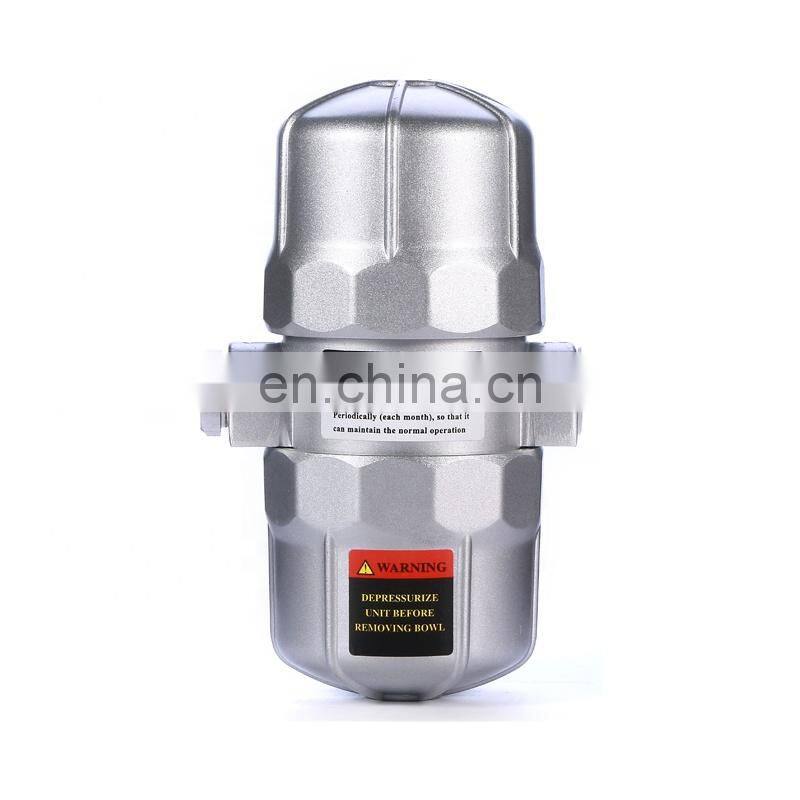

PA-68 Pneumatic auto drain valve
-
PA-68 auto drain trap
-
Air compressor 1/2\" Pneumatic auto water drain valve
-

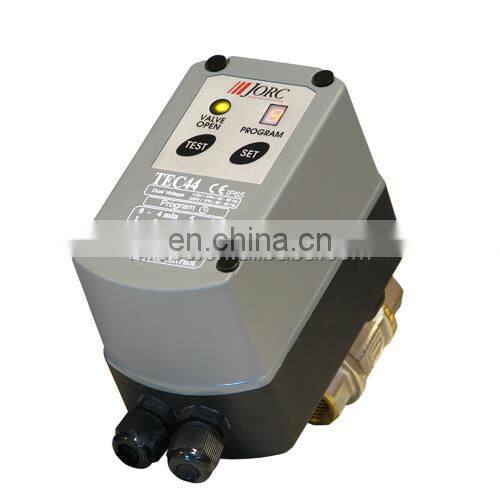

Zero Air Loss Condensate Drain Valve For compressed Air And Gas
-

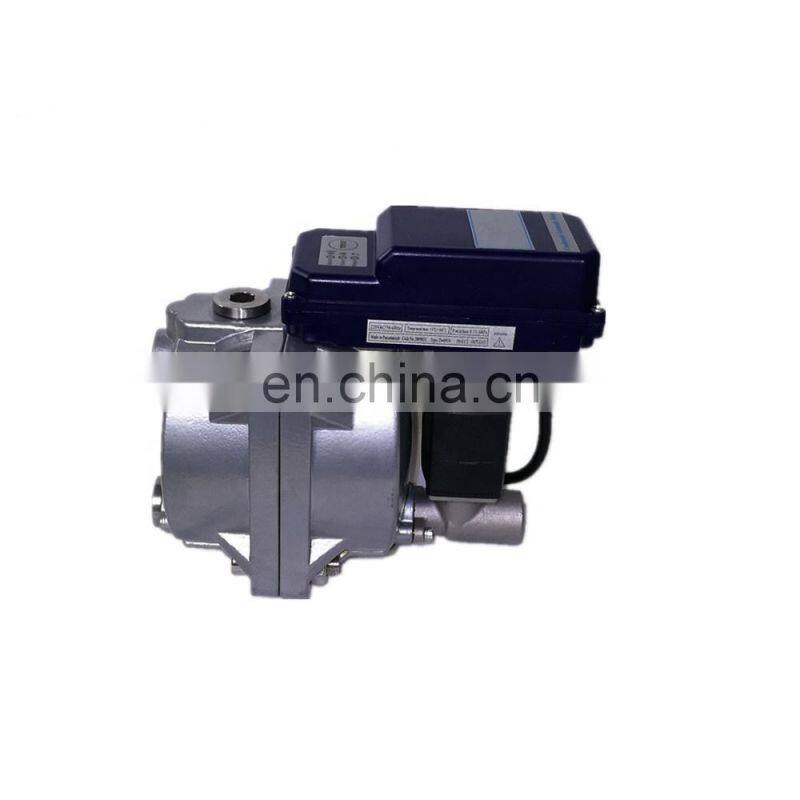

Zero Loss Auto Condensate Drain Valve
-

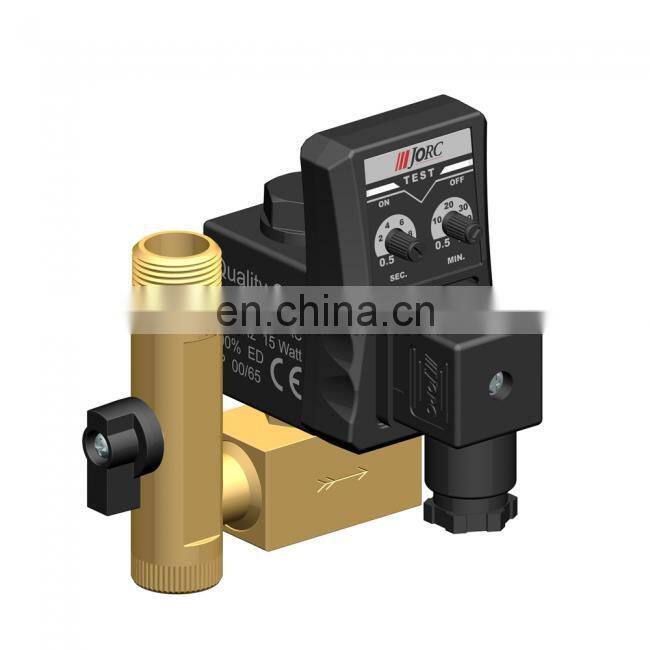

JORC 1/2\" AC230V Automatic Drain Solenoid Valve with Time Control
-
OEM 1/2\" Pneumatic condensate Auto drain valve, auto drain for tank filter dryer
-

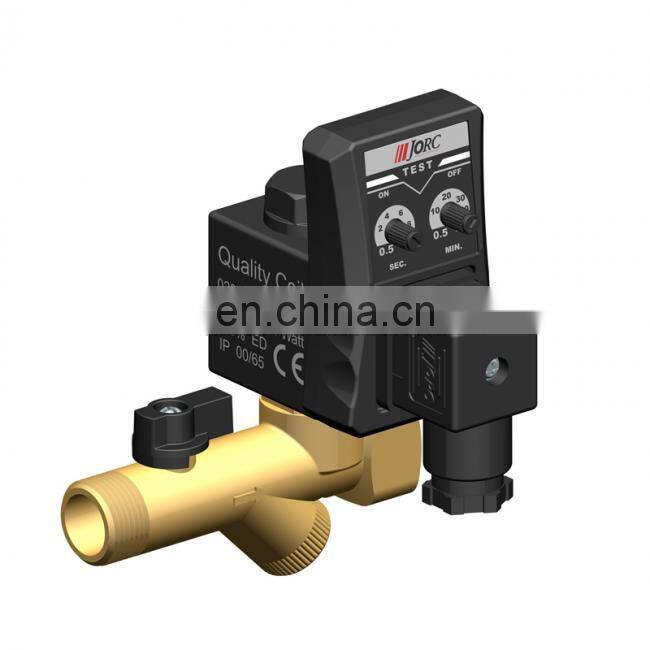

1/2\" Electric Timer Auto Drain Valve 110V
