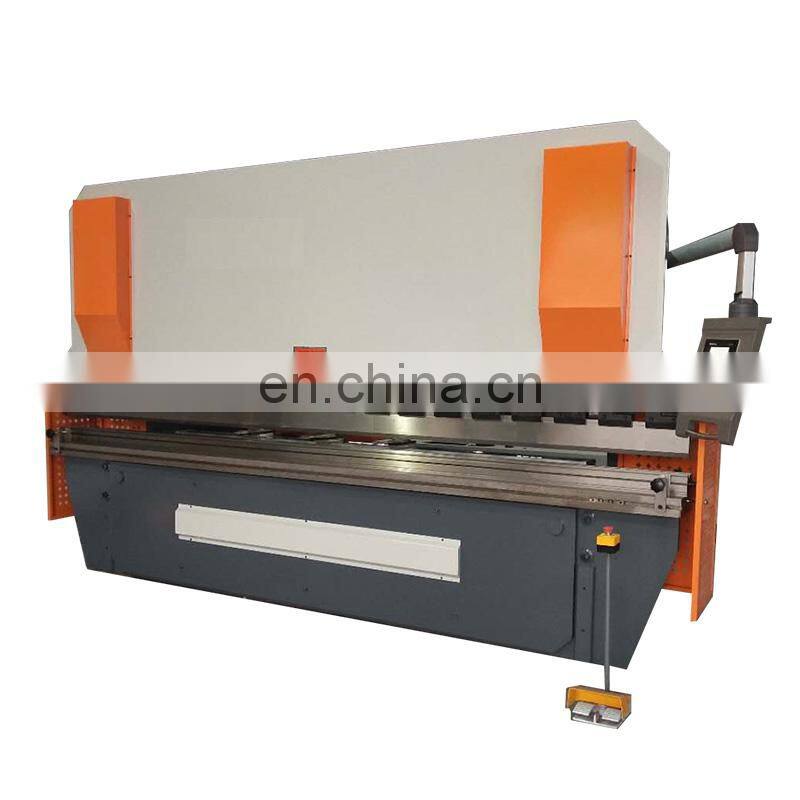

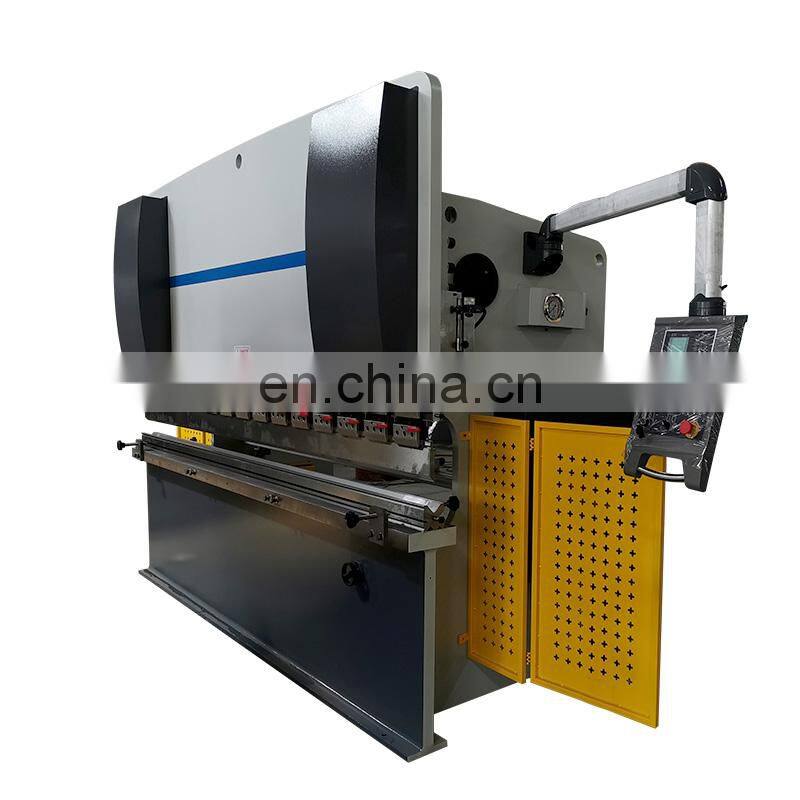

Hydraulic Press Brake Sheet Bending Machine WC67Y-80/3200 China Cheap Price Hydraulic Press Brake Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hydraulic Press WC67Y-125/3200 China Hydraulic Press Brake Machine
-
Horizontal Hydraulic Steel Plate Rolling Machine W12-4X1500 in Metal Machinery
-
Sheet Metal Punching Machine JH21- 60 Hydraulic Punching Machine for Metal Working
-
Wmtcnc New Sheetrollingmachine W12 Hydraulic Plate Rolling Machine 4 Roll Plate Rolling Machine
-
WC67Y-100x2500 Hydraulic Press Brake Machine With for Metal Working
-
W12 CNC Hydraulic Sheet Metal Plate Rolling Machine
Product Description
Product Description

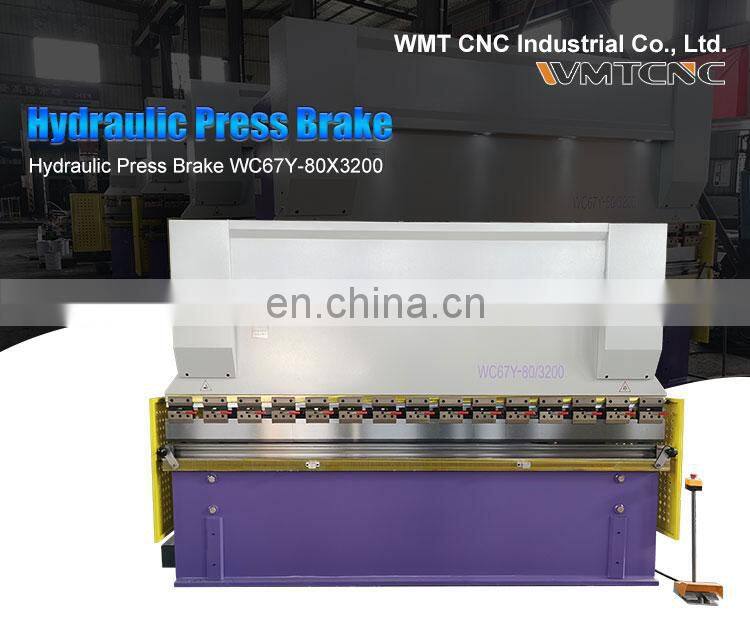

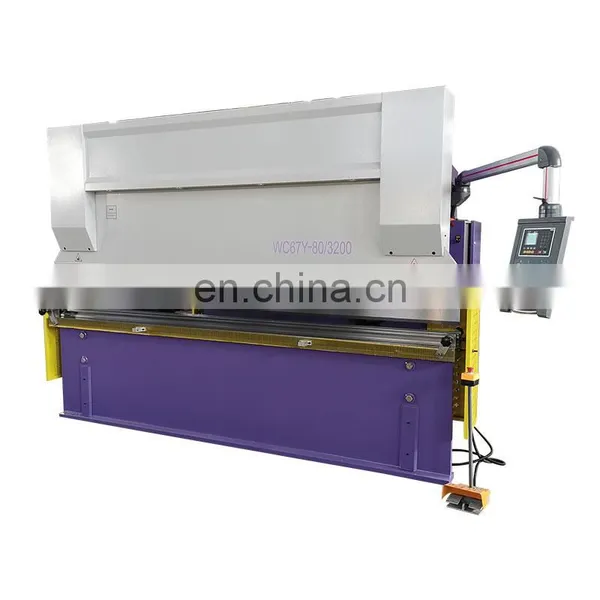

Hydraulic Press Brake WC67Y-80/3200:

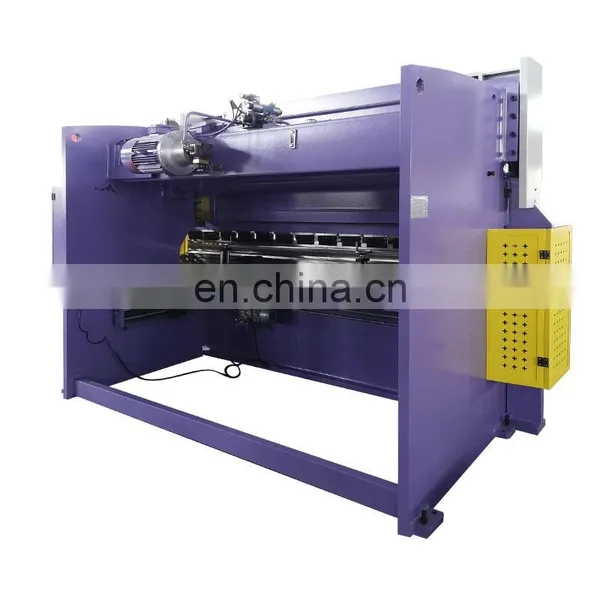

The whole structure of Press Brake:
-Totally European design, streamlined looking, Monoblock, Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
-PRESS BRAKE is Equipped with the Estun user-friendly interface, the E21 provides all main press brake functionality.
-Automatic tonnage and stroke adjustment for bending angles. Perfect bending results with easy angle input and operation of machine.

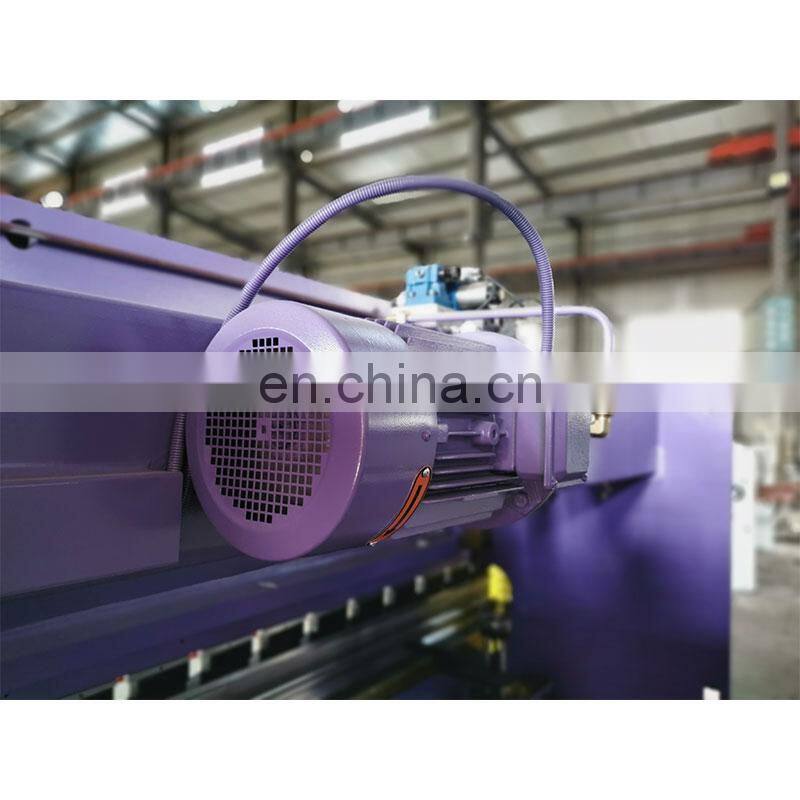

1. Hydraulic system
-Adopt integrated hydraulic control system, more reliable and easy for maintenance. Hydraulic system is from Rexroth, Germany.
-All pipes, flange and joint with vibrations proof and leakage proof design and setting.
-All seals in cylinder is DZ from Taiwan, the most famous brand, good quality and high performance.
-Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.
-The hydraulic system is made in compliance with current regulations.
2. Electrical system
-Electrical Cabinet under the standard of IP55, Electrical under international CE Standard, safe and reliable, strong anti interference capability.
-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
-Front Side and back safety guards, Foot pedal conforming to CE regulation.
3. Synchro control system
-Patented hydro-mechanical system for exact parallelism and a high repeat accuracy.
-The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.
-Adopt steel torsion bar synchro system, simple in structure and high in accuracy, ensures the parallelism between beams is used for the synchronism.
4. Mould and dies
-The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation.
-Upper and buttom die can be sectioned according to customer’s requirement.

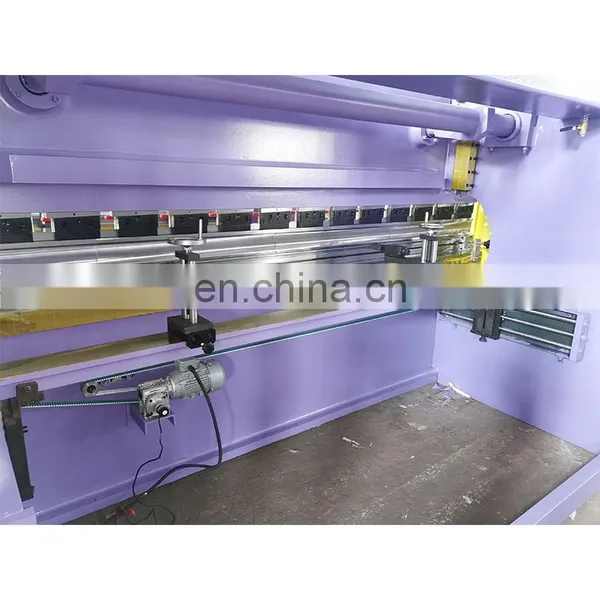

5. Backgauge
-Back gauge fingers with two gauging steps used one for short and the other for long bending depths.
-Back Gauge positioning fingers move along linear bearings with ±0.05 mm. positioning tolerance.

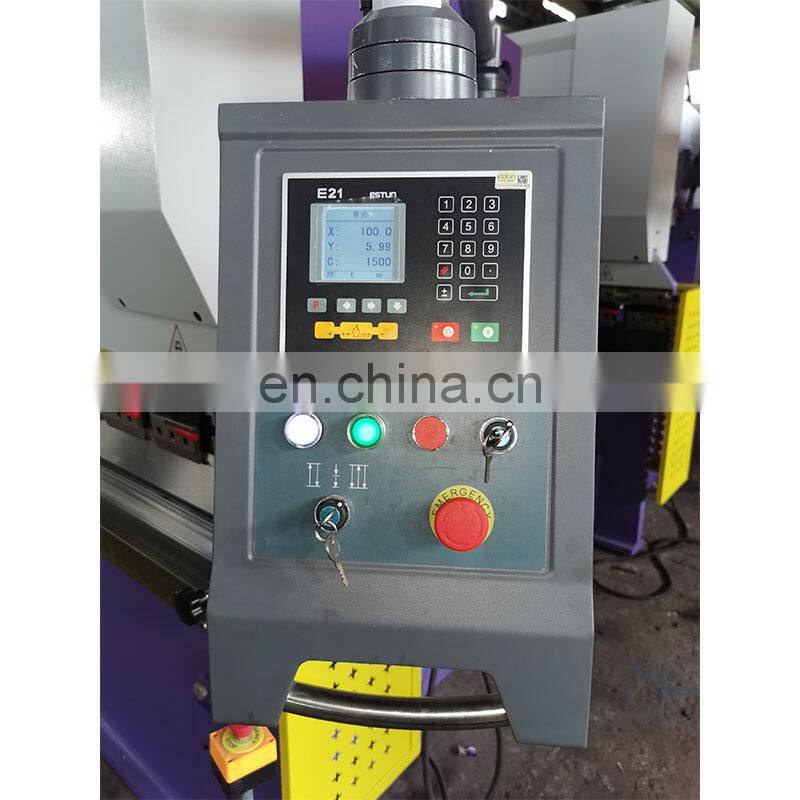

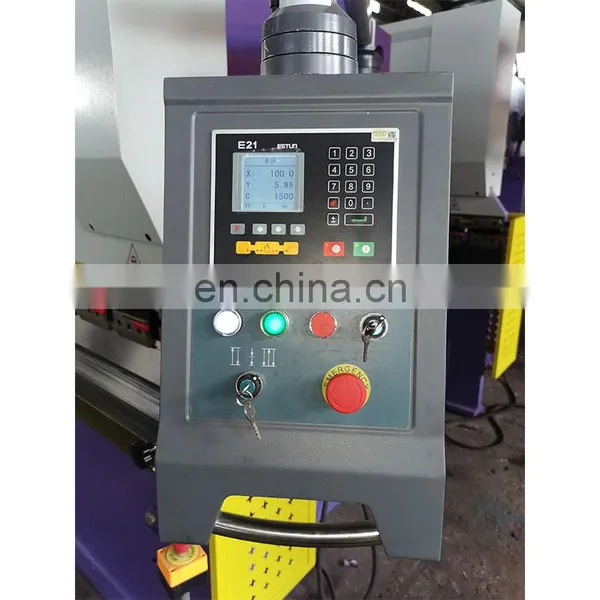

6. E21 NC Controller
-Backgauge and block control
-Control for AC motors, frequency inverter
-Intelligent positioning
-Stock counter
-Holding/decompression time setting
-Program memory of up to 40 programs, up to 25 steps per program
-One side positioning
-Retract function
-One key backup/restore of parameters
-mm/inch
-Chinese/English
Name | Unit | Value | |
Model | WC67Y-80/3200 | ||
Nominal pressure | KN | 800 | |
Length of working table | mm | 3200 | |
Worktable Height | mm | 800 | |
Distance between uprights | mm | 2600 | |
Thickness of uprights | mm | 40 | |
Throat depth | mm | 250 | |
storke | mm | 120 | |
Open height | mm | 380 | |
Motor power | KW | 7.5 | |
Gear pump | L | 16 | |
Weight | KG | 5500 | |
Dimension | mm | 3500x1450x2200 | |

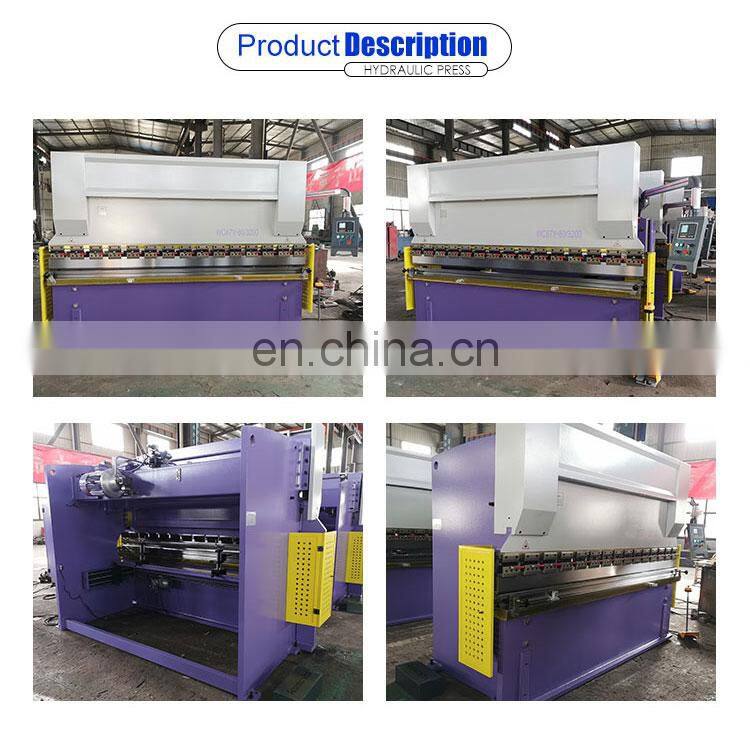

Details Images
Standard accessories:
Gear pump; E21 NC controller;
Main electric parts; Hydraulic system;
Sealing rings; Ball screw and line guide;
Casting connector; Hydro-cylinder; Variable frequency drives
Casting connector; Hydro-cylinder; Variable frequency drives

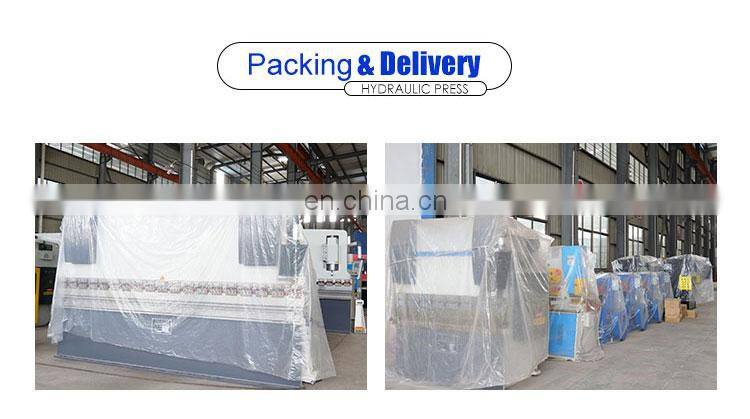

Package&Delivery

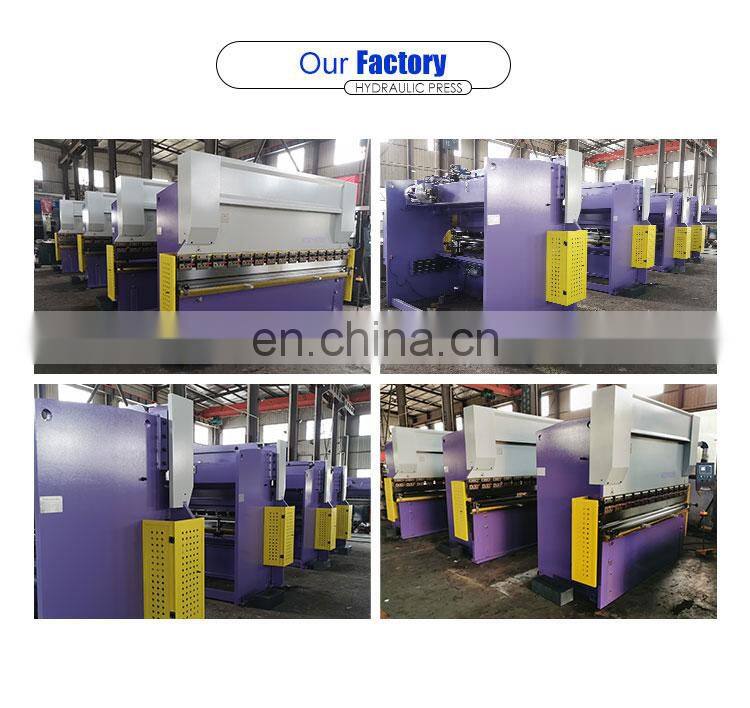

Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
