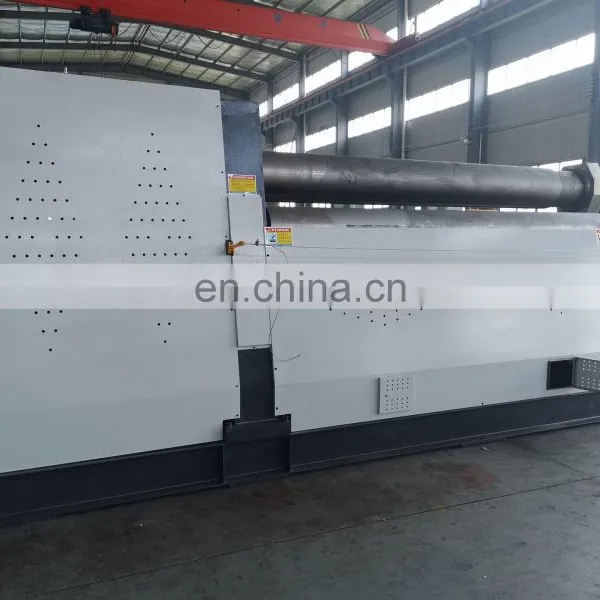

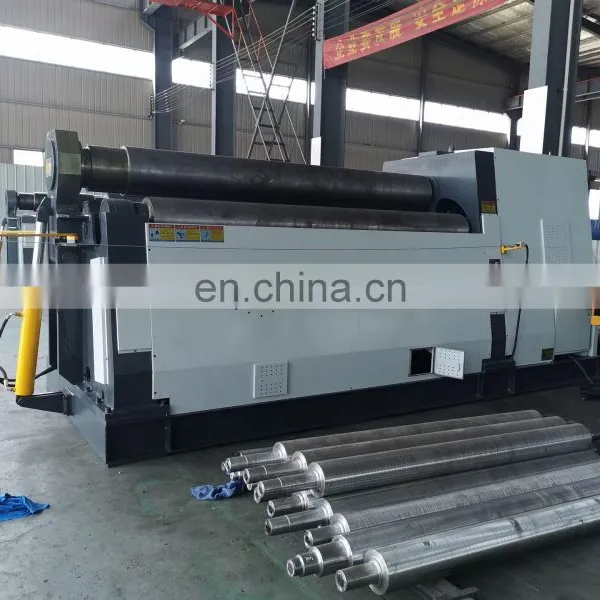

W12 CNC Hydraulic Sheet Metal Plate Rolling Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QC12Y-6X5000 CNC Hydraulic Shearing Machine For Sheet Metal Cutting With CENegotiableMOQ: 1 -
Rolling Machine W12 Sheet Metal 4 Roller Cnc Plate Bending Machine/rolling MachineNegotiableMOQ: 1
-
QC12Y 4X3200 Hydraulic Swing Beam Shearing MachineNegotiableMOQ: 1
-
QC11Y-16/6000 Hydraulic Guillotine Shearing Machine With CENegotiableMOQ: 1
-
W1112X2000 3 Roller Steel Sheet Metal Hydraulic Plate Bending Rolling MachineNegotiableMOQ: 1
Product Description
Introduce:
1. The machine adopts the four-roller structure with the upper roller as the main drive, both upward and downward movement through hydraulic motors powered.
2. The lower roller makes vertial movements and imposes a force on the piston through the hydraulic oli in the hydraulic cylinder so as to clamp the plate tight.
3. Side rollers are arranged on the two sides of the lides of the lower roller, and make inclining movement along the guide rail, and provide drive through the screw, the nut, the worm and the leadscrew.
4. The advantage of the machine is that the preliminary bending and rolling of the top ends of the plates can be conducted on the same machine.
Max. rolling thickness when full loaded |
Common Mild Steel |
≤10MM |
|||
SS304/316L |
≤6MM |
||||
Max. pre-bending thickness when full loaded |
Common Mild Steel |
≤8MM |
|||
SS304/316L |
≤4MM |
||||
Max. rolling width(Cylinder Length) |
3200MM |
||||
Min. roll diameter when max. specification |
500MM |
||||
yield limit S245 |
245 MPA |
||||
yield limit S355/AISI304 |
345Mpa |
||||
Upper roller diameter |
300MM |
||||
lower roller diameter |
270MM |
||||
lower roller speed |
80MM/MIN |
||||
Side roller diameter |
220MM |
||||
Side roller speed |
80MM/MIN |
||||
Working roller |
Material |
42CRMO |
|||
Hardness |
HB240-286 |
||||
Hydraulic system pressure |
20MPA |
||||
Rolling speed |
4.5M/MIN |
||||
Main motor power |
11 KW |
||||
Cone accessory |
NO standard |
||||
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
