QC11Y-16/6000 Hydraulic Guillotine Shearing Machine With CE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
W1112X2000 3 Roller Steel Sheet Metal Hydraulic Plate Bending Rolling MachineNegotiableMOQ: 1 -
QC12Y 10X3200 Sheet Metal Shearing Machine Steel Plate Hydraulic Shearing MachineNegotiableMOQ: 1
-
Model EB2000 Magnetic Bending MachineNegotiableMOQ: 1
-
Small Hobby Machine UB100 Cheap Univerl Bending MachineNegotiableMOQ: 1
-
Model EB2500 Magnetic Bending MachineNegotiableMOQ: 1
Product Description
Features:
1. All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.2. Integrated hydraulic transmission system,with good reliability.
3. Triple support rolling guide rail to eliminate gaps of support and enhance shearing.
4. Mechanical rear stopper with manual fine tuning and digital indication.
5. Clearance in between shearing blades adjusted by hand wheel to be quick,accurate and convenient.
6. Rectangular blades with four cutting edges to prolong working life,adjustable shearing angle to reduce deformation of the sheet.
7. Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
8. Function of shearing in sections,function of aligning with light.
9. Optional:rear material holding device(or for other choice).
Specification | Shear Thickness | Shear Width | Number of Stroke | Backgauge Rang | Shearing Angle | Motor Power |
mm | mm | min-1 | mm | (°) | kw | |
QC11Y-16×2500 | 16 | 2500 | 8-15 | 20--800 | 0.5-2°30' | 18.5 |
QC11Y-16×3200 | 16 | 3200 | 7-15 | 20--800 | 0.5-2°30' | 22 |
QC11Y-16×4000 | 16 | 4000 | 6-15 | 20--800 | 0.5-2°30' | 30 |
QC11Y-16×5000 | 16 | 5000 | 6-15 | 20--800 | 0.5-2.5° | 30 |
QC11Y-16×6000 | 16 | 6000 | 5-15 | 20--800 | 0.5-2.5° | 37 |

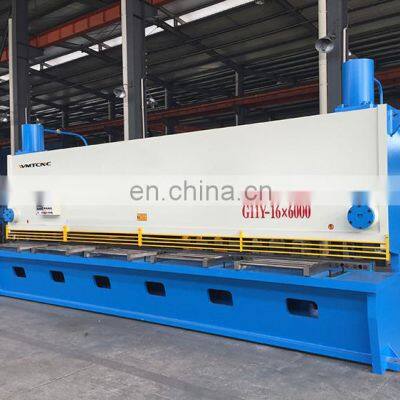

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
