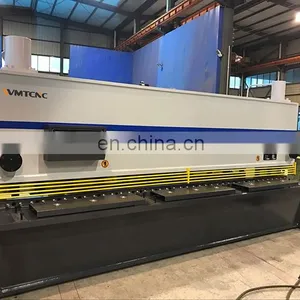

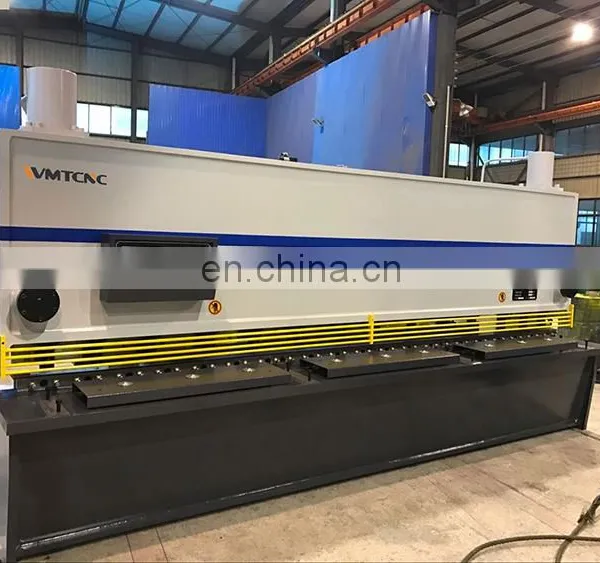

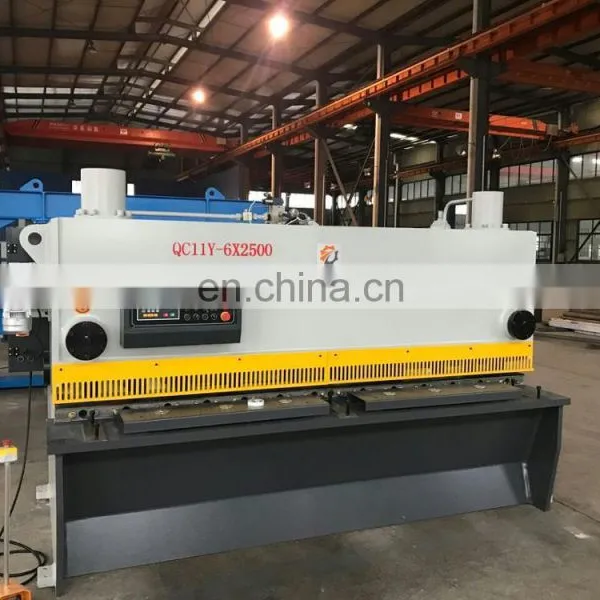

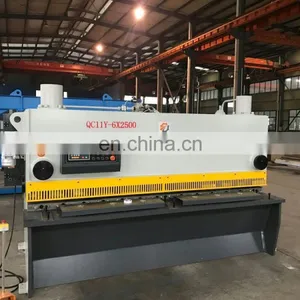

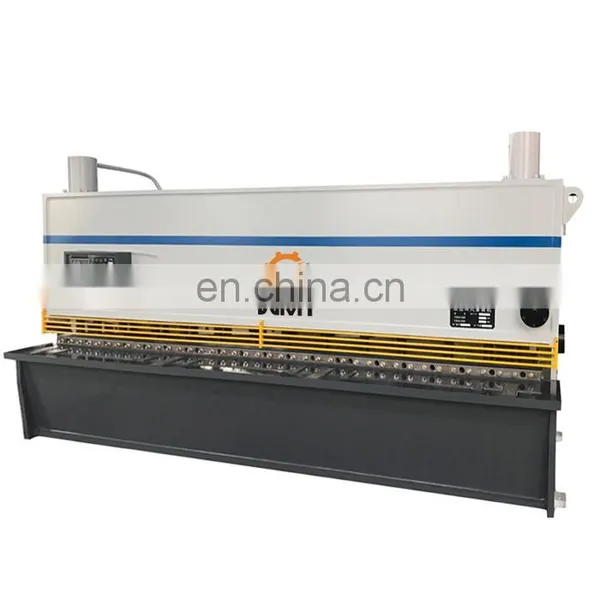

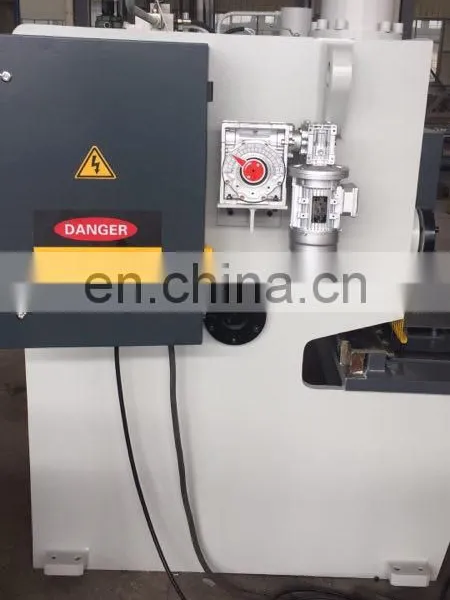

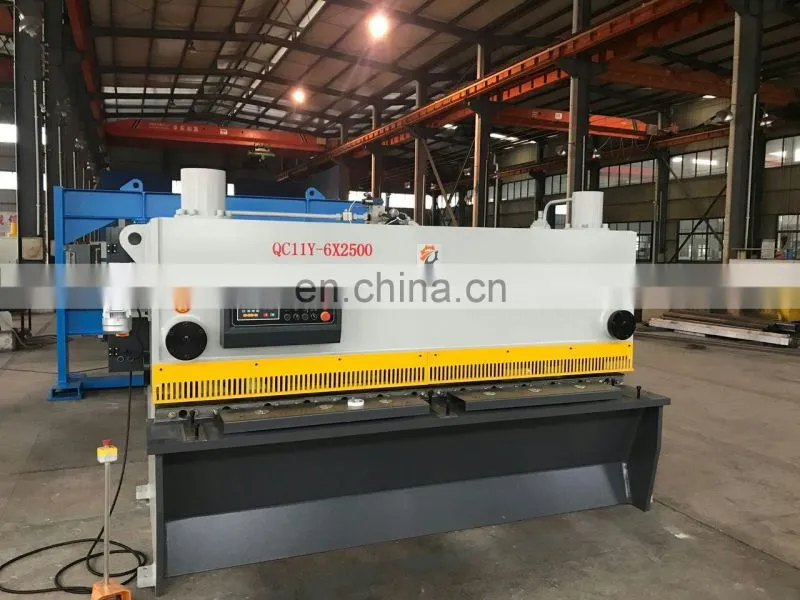

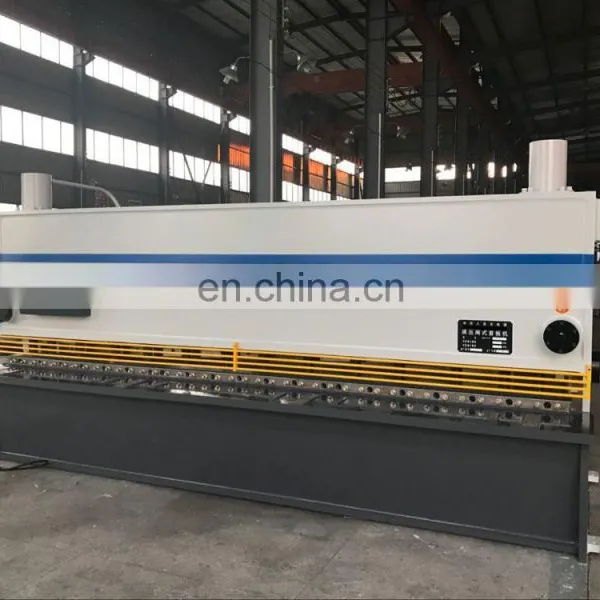

QC11Y-6/2500 Hydraulic Guillotine Shearing Machine
- 1000 per Month
- T/T Credit Card
- AP-1 AP-2 mini size DIY use arbor press machine
- RBM30HV round bending machine with CE for metal sheet
- HRBM50HV Hydraulic Round Bending Machine for Metal Working
- China cheap price WC67Y 80/3200 hydraulic press brake
- WC67Y 160/3200 China cheap price hydraulic press brake machine with E21
- WC67Y 80/2500 China cheap price hydraulic press brake machine
Product Description
1.All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.
2.Integrated hydraulic transmission system,with good reliability.
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing.

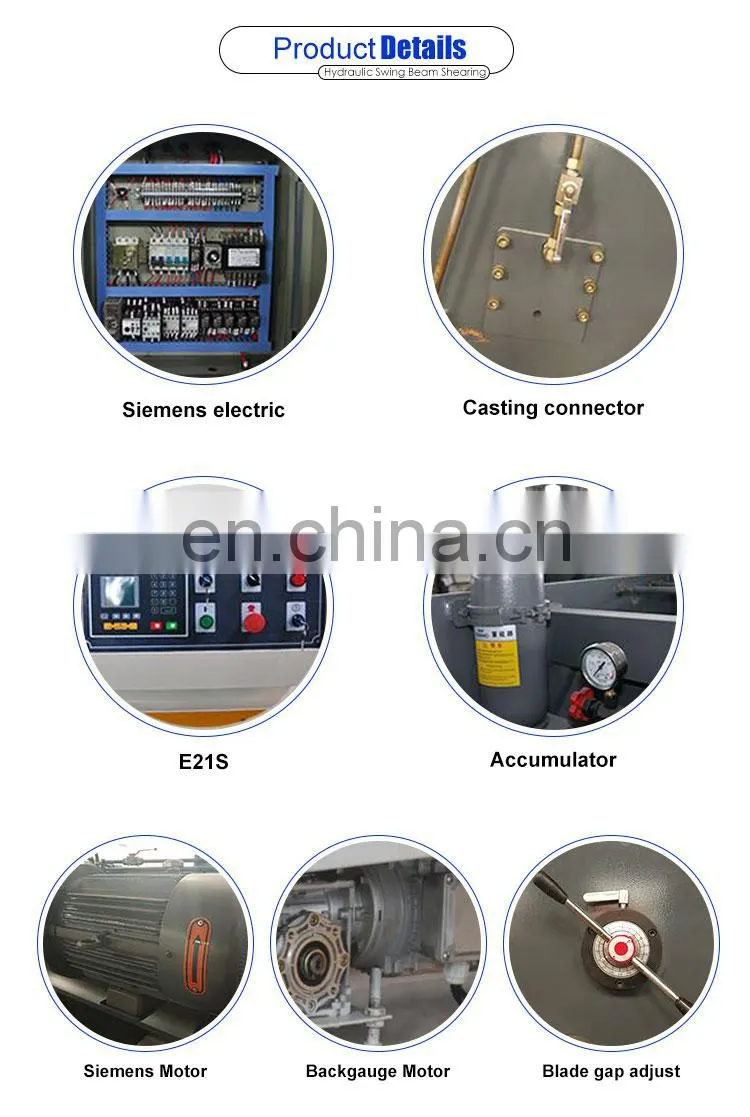

4.Mechanical rear stopper with manual fine tuning and digital indication.
5.Clearance in between shearing blades adjusted by hand wheel to be quick,accurate and convenient.
6.Rectangular blades with four cutting edges to prolong working life,adjustable shearing angle to reduce deformation of the sheet.
7.Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
8.Function of shearing in sections,function of aligning with light.
9.Optional:rear material holding device(or for other choice).
Specification | Shear thickness | Shear width | Stroke | Backguage range | Shear angle | Throat height | Motor power |
mm | mm | mm | mm | degree | mm | kw | |
QC11Y-6/2500 | 6 | 2500 | 16~35 | 20~500 | 1.5 | 800 | 7.5 |
QC11Y-6/3200 | 6 | 3200 | 14~35 | 20-500 | 1.5 | 800 | 7.5 |
QC11Y-6/4000 | 6 | 4000 | 10~30 | 20-500 | 1.5 | 800 | 7.5 |
QC11Y-6/5000 | 6 | 5000 | 10~30 | 20~600 | 1.5 | 900 | 11 |
QC11Y-6/6000 | 6 | 6000 | 8~25 | 20~600 | 1.5 | 1000 | 11 |
