WC67Y-63/2500 factory sales cheap press brake machine price with CE

Name: WC67Y-63/2500 factory sales cheap press brake machine price with CE
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

Features of hydraulic press brake:
1. Hydraulic press brake all Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity. Hydraulic upper transmission, steady and reliable.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high
precision.
3. Ensure the high control precision, bending accuracy and repositioning accuracy are also reach to the high level.
hydraulic press brake back gauge can be multi-axes controlled.
4. Back gauge distance, upper ram stroke can be adjusted by motor-drive, manual operation micro-adjust equipment, numerical display.
5. Our hydraulic press brake machine worktable full deflection compensation.
6. Adopt integrated hydraulic system, more reliable and easy for maintenance.
7. Travel limit protection, full hydraulic press brake machine guarding with safety interlocker.
8. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
9. Inch, single mode being designed for the hydraulic press brake machine and reversing and maintain time can be controlled by the time relays.
10. Safe fence and the electric interlocker have been designed for the hydraulic press brake machine to ensure the operation safety.
11. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
12. Control system for hydraulic press brake: Estun NC E21, CNC DELEM DA41, DA52, DA66T, etc.

Specification	Nominal pressure	Distance between uprights	Ram stroke	Throat depth	Motor power
Specification		kn	mm	mm	mm	kw
WC67Y-63/2500	630	2050	100	250	5.5
WC67Y-63/3200	630	2600	100	250	5.5
WC67Y-80/3200	800	2600	100	250	5.5
WC67Y-80/4000	800	3200	100	250	7.5
WC67Y-100/2500	1000	1900	120	320	7.5
WC67Y-100/3200	1000	2600	120	320	7.5
WC67Y-100/4000	1000	3200	120	320	7.5
WC67Y-100/5000	1000	4000	120	320	7.5

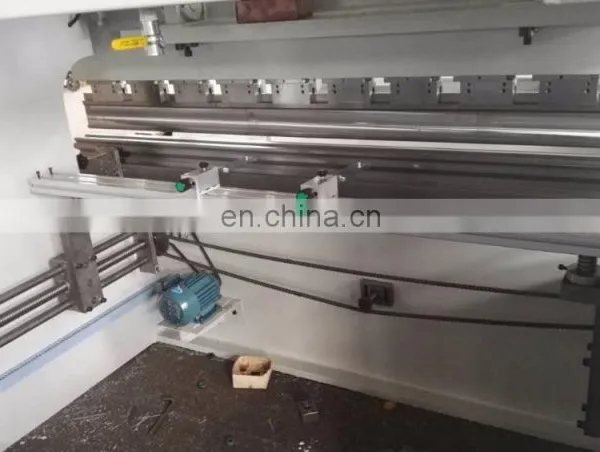

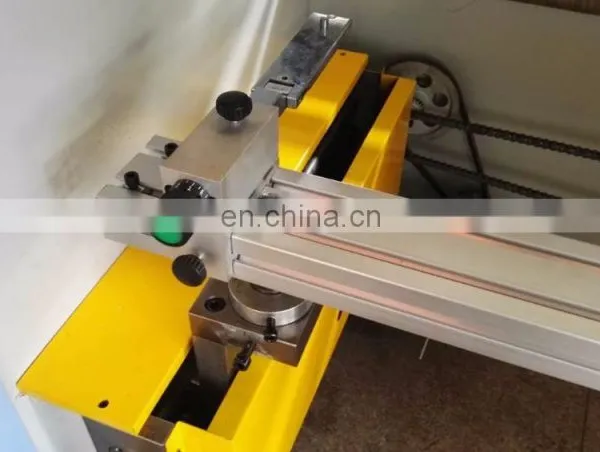

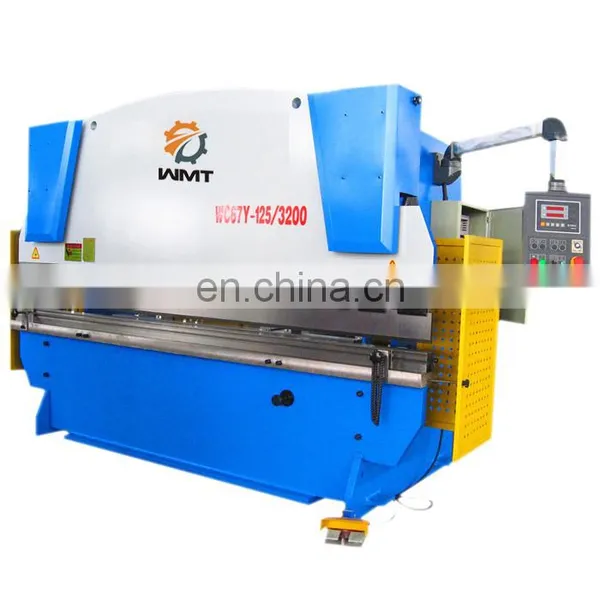

Detailed Images

Company Profile

Professional Service

FAQ

Q1: How is the warranty?

A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?

A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?

A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?

A4: One set only.

Q5: How about your quality?

A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?

A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?

A7: Yes, we can design and manufacture according to your specific requirements.
