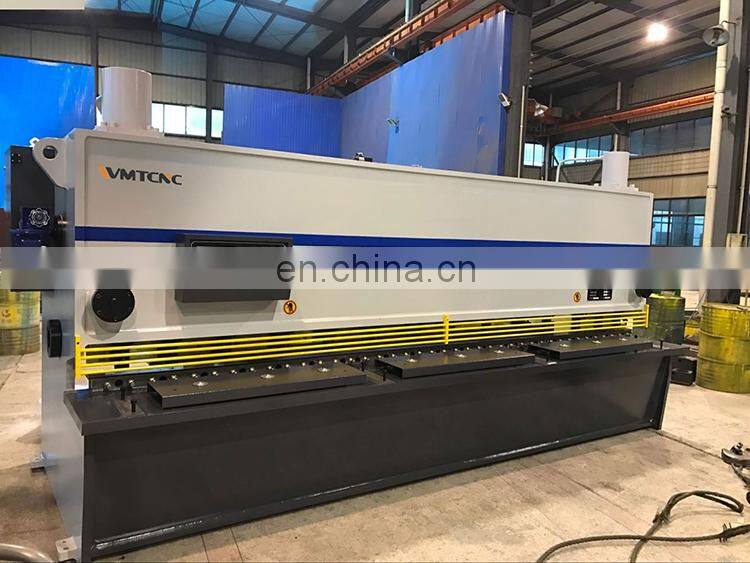

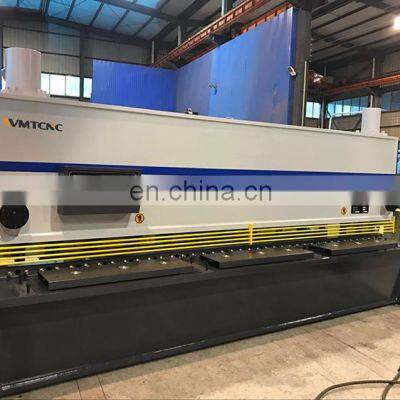

QC11Y-12/3200 Guillotine Shearing Machine Stainless Steel Metal Sheet Iron Plate Sheet Cutting Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QC11Y-12/4000 12mm Hydraulic Shearing Machine SpecificationNegotiableMOQ: 1 -
QC12Y-4X2500 ESTUN E21S CNC Hydraulic Shearing Machine For Sheet Metal Steel Plate CuttingNegotiableMOQ: 1
-
QC12Y 8X2500 Metal Sheet Shearing Machine Price With CE CertificateNegotiableMOQ: 1
-
WC67Y-63/2500 Factory Sales Cheap Press Brake Machine Price With CENegotiableMOQ: 1
-
WC67Y 160/4000 China Cheap Price Hydraulic Press Brake MachineNegotiableMOQ: 1
Product Description
1.All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.
2.Integrated hydraulic transmission system,with good reliability.
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing.
4.Mechanical rear stopper with manual fine tuning and digital indication.
5.Clearance in between shearing blades adjusted by hand wheel to be quick,accurate and convenient.
6.Rectangular blades with four cutting edges to prolong working life,adjustable shearing angle to reduce deformation of the sheet.
7.Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
8.Function of shearing in sections,function of aligning with light.
9.Optional:rear material holding device(or for other choice).
2.Integrated hydraulic transmission system,with good reliability.
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing.
4.Mechanical rear stopper with manual fine tuning and digital indication.
5.Clearance in between shearing blades adjusted by hand wheel to be quick,accurate and convenient.
6.Rectangular blades with four cutting edges to prolong working life,adjustable shearing angle to reduce deformation of the sheet.
7.Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
8.Function of shearing in sections,function of aligning with light.
9.Optional:rear material holding device(or for other choice).
Specification
Specification | Shear Thickness | Shear Width | Number of Stroke | Backgauge Rang | Shearing Angle | Motor Power |
mm | mm | min-1 | mm | (°) | kw | |
QC11Y-12×2500 | 12 | 2500 | 10-20 | 20--800 | 0.5-2.5° | 15 |
QC11Y-12×3200 | 12 | 3200 | 6-20 | 20--800 | 0.5-2.5° | 15 |
QC11Y-12×4000 | 12 | 4000 | 6-20 | 20--800 | 0.5-2.5° | 15 |
QC11Y-12×5000 | 12 | 5000 | 5-15 | 20--800 | 0.5-2.5° | 15 |
QC11Y-12×6000 | 12 | 6000 | 6-15 | 20--800 | 0.5-2.5° | 30 |
