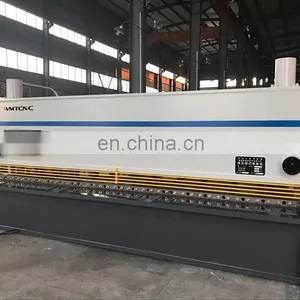

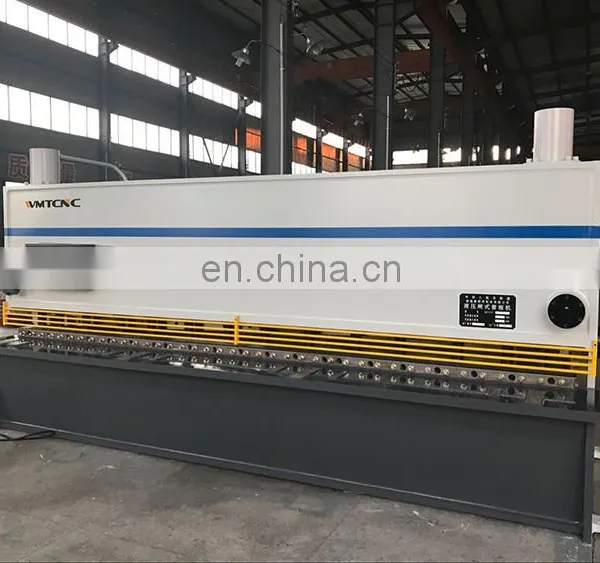

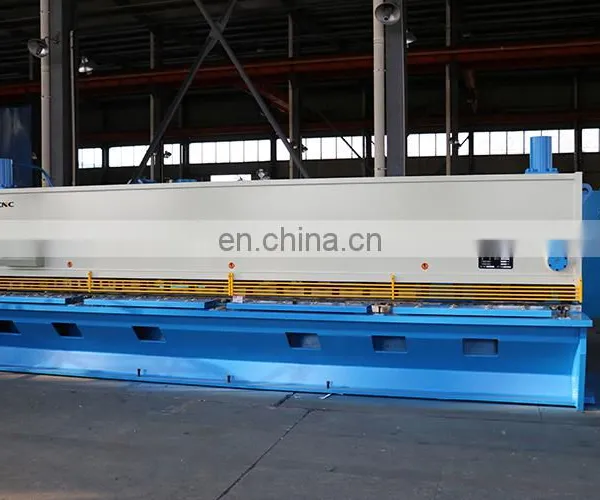

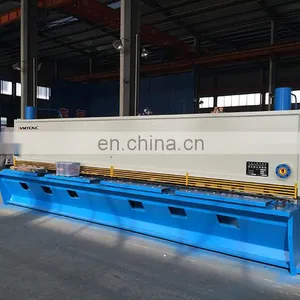

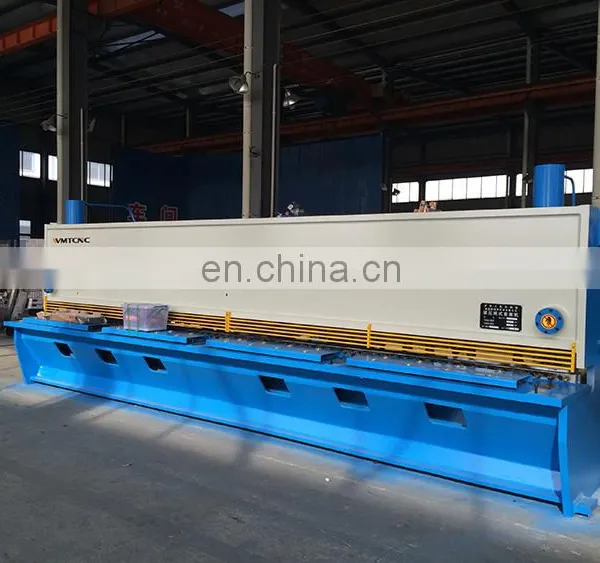

QC11Y-12/4000 12mm hydraulic shearing machine specification

Name: QC11Y-12/4000 12mm hydraulic shearing machine specification
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

1.All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.
2.Integrated hydraulic transmission system,with good reliability.
3.Triple support rolling guide rail to eliminate gaps of support and enhance shearing.
4.Mechanical rear stopper with manual fine tuning and digital indication.
5.Clearance in between shearing blades adjusted by hand wheel to be quick,accurate and convenient.
6.Rectangular blades with four cutting edges to prolong working life,adjustable shearing angle to reduce deformation of the sheet.
7.Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
8.Function of shearing in sections,function of aligning with light.
9.Optional:rear material holding device(or for other choice).

Specification

Specification	Shear Thickness	Shear Width	Number of Stroke	Backgauge Rang	Shearing Angle	Motor Power
	mm	mm	min-1	mm	(°)	kw
QC11Y-12×2500	12	2500	10-20	20--800	0.5-2.5°	15
QC11Y-12×3200	12	3200	6-20	20--800	0.5-2.5°	15
QC11Y-12×4000	12	4000	6-20	20--800	0.5-2.5°	15
QC11Y-12×5000	12	5000	5-15	20--800	0.5-2.5°	15
QC11Y-12×6000	12	6000	6-15	20--800	0.5-2.5°	30
