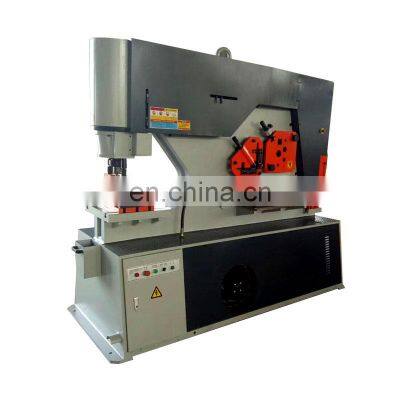

Q35Y Hydraulic Punching and Shearing Machine With Competitive Price
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Q35Y-20 Cheap Hydraulic Punching and Shearing Machine for Metal Working
-
W11-4/2000 4mm Cheap Rolling Machine With CE for Sale
-
W11-8/2000 8mm Roll Machinery Factory Promotion Sale Cheap Rolling Machine
-
W11-6/2000 6mm With CE for Sale Cheap Rolling Machine
-
WC67Y-100/3200 Hydraulic Press Brake Machine With E21
-
WC67Y-40/2500 Cheap Hydraulic Press Brake Machine With CE

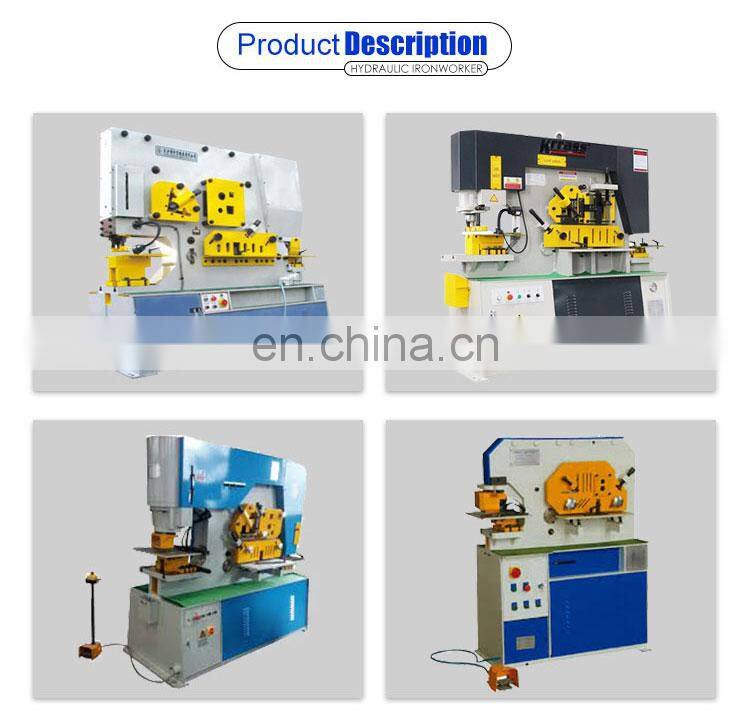

Product Description
Product Description
Machine features of punching and shearing machine:

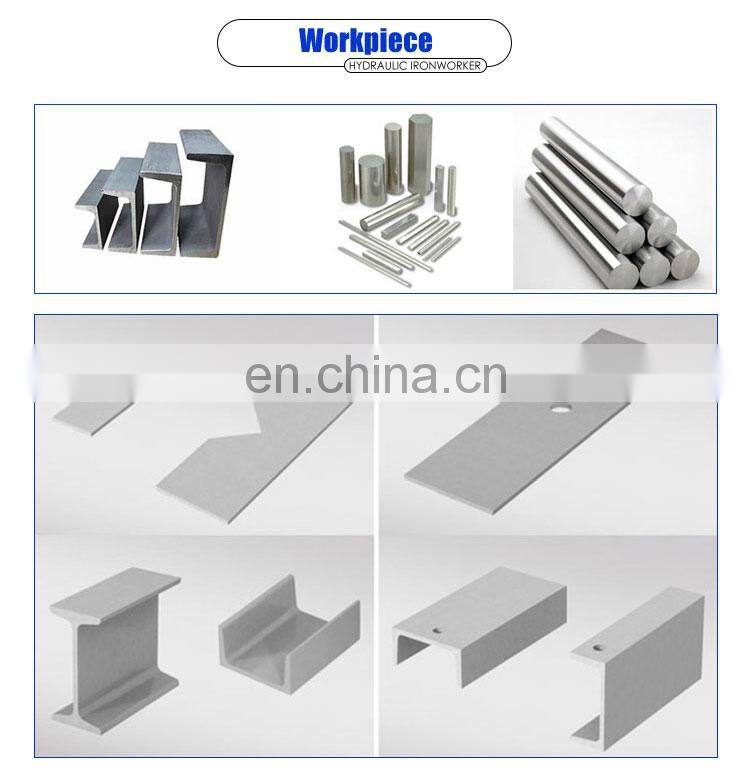

Its series of products are ideal equipment for cutting all kinds of angle steel, I-beam, U-shape steel, right angle or 45 degree angle steel. Multi-workstations make it possible to finish series operations simultaneously on one machine, such as punching, shearing and notching, Dual-piston-type combined punching and shearing machine allows two-man operation at the same time (stamping +another work station), German Rexroth’s integrated hydraulic valve block ensures the stability of the machine, Through Thermal Effect of annealing processing, the entire rack is able to keep its shape forever, without deformation. The introduction of imported brand accessories ensures the parts’ service life and use precision.
(1) Punching: effective punching can be achieved with the machine, and stamping die is easy to be replaced.
(2) Bar cutting: you can quickly cut the round bar and square steel, if you want to cut U-shaped, I-beam or T-profile section steel only by exchanging the cutting blade and the operation procedure is very simple.
(3) Angle cutting: you can cut several 90 ° and 45 ° angles with the help of special dies.
(4) Metal Sheet Bending: it is very easy to fulfill the daily metal sheet bending work by making the bending moulds.
(5) Notching: The machine is equipped with a large-shaped slotting blade head, which can meet your general use, as to, special shaping blade head can be customized.
Model | Q35Y-16 (IW-60) | Q35Y-20 ( IW-90) | Q35Y-25 (IW-120) | Q35Y-30 (IW-140) |
Working pressure（KN） | 600 | 900 | 1200 | 1400 |
Max. cutting thickness（mm） | 16 | 20 | 25 | 26 |
Max. cutting length(mm) | 400 | 480 | 600 | 600 |
Tensile strength of sheet metal | ≤450 | ≤450 | ≤450 | ≤450 |
PUNCHING METRIC(mm) | ||||
Max. Capacities | 25×16 | 30×20 | 35×25 | 38×26 |
Max. Stroke Length | 80 | 80 | 80 | 80 |
Throat Depth Standard | 305 | 355 | 400 | 600 |
Working Height | 1030 | 1084 | 1142 | 1209 |
SHEARING | ||||
Flat Bar | 250×16 | 330×20 | 300×25 | 355×30 |
Alternative | 400×8 | 480×10 | 600×16 | 600×20 |
Blade Length | 410 | 485 | 620 | 610 |
Working Height | 890 | 894 | 891 | 897 |
ANGEL CUTTING | ||||
At 90°cut | 125x125×12 | 140x140×12 | 160×160x16 | 180x180×16 |
At 45°Mitre | 70×10 | 70×10 | 70×10 | 70×10 |
Working Height | 1130 | 1139 | 1200 | 1220 |
SECTION CUTTING | ||||
Round / Square Bar | 45 | 50 | 60 | 65 |
Channel / I bar | 130×65 | 160×88 | 200x100 | 280×122 |
T bar | 90×12 | 90×12 | 90×12 | 90×12 |
NOTCHING | ||||
Material Thickness | 10 | 13 | 14 | 16 |
Width | 57 | 57 | 57 | 57 |
Depth: Vee -Rect. | 60-90 | 60-90 | 60-90 | 60-90 |
Working Height | 890 | 883 | 886 | 898 |
Details Images
Package&Delivery
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
