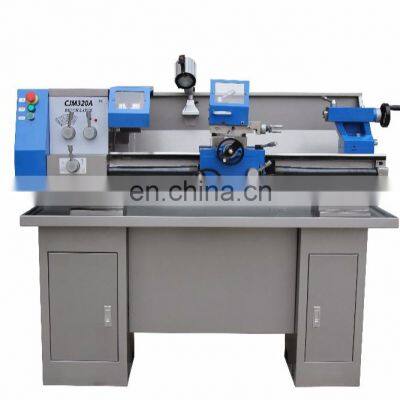

CJM320A Mini Lathe CNC Bench Lathe Machine With CE Standard
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AT125 Multi Purpose 3 in 1 Mini Metal Lathe Machine for Hobby and EducationNegotiableMOQ: 1 -
CS6266C Lathe Machine With Good RigidityNegotiableMOQ: 1
-
CJM320A Small Lathe Machine Mini Metal Lathe Machine Price With CENegotiableMOQ: 1
-
CW61125B Heavy Horizontal Lathe Machine for Metal CuttingNegotiableMOQ: 1
-
CW61160B Heavy Horizontal Lathe Machine for MetalNegotiableMOQ: 1
High Performance Bench Lathe Machine Price CJM320 with CE Standard
Features:

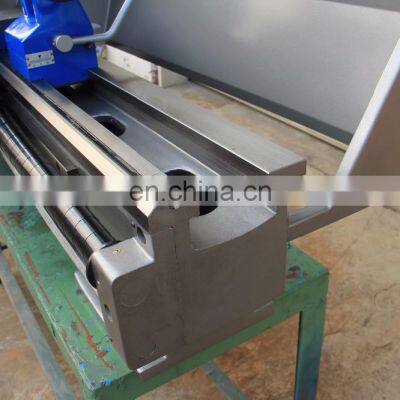

1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.

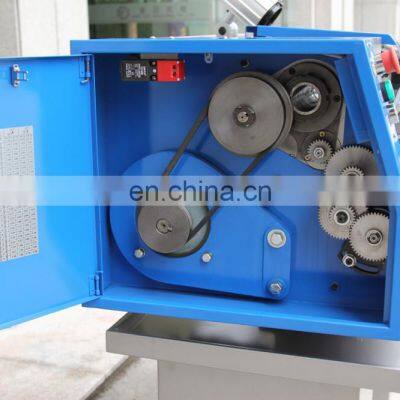

3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
5. Spindle speed range 60-1600rpm.
6. Two different lengths of bed are available.
7. With or without cabinet according to requirement.
Specification | Model CJM320A |
Max. swiming over bed | 320mm |
Max. swing over cross slide | 210mm |
Max. length of work piece | 750mm(36") |
Spindle Bore | 38mm |
Spindle Taper | MT5 |
Max. lateral stroke over tool post | 170mm(6") |
Metric pitches | 0.5-4 mm |
Inch pitches | 9-40 T.P.I |
Longitudinal-feed range | 0.025-0.34mm/r |

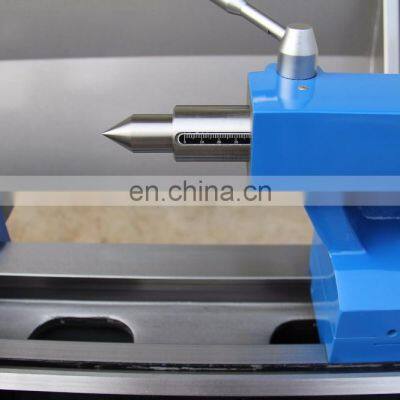

Max. travel of tailstock sleeve | 70mm(2-3/4") |
Tailstock sleeve taper | MT3 |
Spindle speeds range | 60-1600r/min(50hz) |
Motor | 1.1Kw |
NW/GW (without stand) | 320/340Kg |
Packing size (without stand) | 1500*650*115 mm |
Packing size | 158*810*1450 mm |
Standard Accessories:
· 3-jaw chuck,
· Dead center
· Chasing dial indicator
· Change gears set
· Splash guard
· Oil gun
· Tool box and tools
Optional Accessories:
· 4-jaw chuck
· Face plate
· Steady rest
· Follow rest
· Live center
· Toolpost cover
· Chuck guard
· Leadscrew guard
