Specification of lathe CW61160B
|
Specification |
Unit |
CW61160B |
|
Bed way |
|
One integrated floor bed |
|
Swing over bed |
mm |
1600 |
|
Swing over toolpost |
mm |
1200 |
|
Center distance |
mm |
6000 |
|
Spindle bore |
mm |
130 |
|
Spindle taper |
mm |
φ140 MT6 |
|
Spindle speed kinds forward |
r/min |
21 kinds |
|
Spindle speed kinds reverse |
mm/r |
12 kinds |
|
Forward |
mm/r |
3.15--315 |
|
Reverse |
mm/r |
3.5--278 |
|
Toolpost feed range |
mm/r |
56 kinds |
|
vertical |
mm |
0.1-12 |
|
horizontal |
mm/min |
0.05-6 |
|
Upper toolpost |
mm |
0.025-3 |
|
Metric thread range |
mm |
44 kinds 1-120 |
|
Inch thread range |
mm |
31 kinds 24-1/4t.p.ii |
|
Module thread range |
mm |
45 kinds 0.5-60 |
|
Pitch thread range |
mm |
38 kinds 1/2-56DP |
|
Upper toolpost travel |
mm |
300 |
|
Toolpost rapid movement speed vertical |
mm |
3740 |
|
Toolpost rapid movement speed horizontal |
mm |
1870 |
|
Center rest |
mm |
935 |
|
Tailstock sleeve diameter |
mm |
160 |
|
Tailstock travel |
mm |
300 |
|
Tailstock taper |
|
MT 6 |
|
Motor power |
KW |
18.5 |
|
Bed width |
mm |
755 |
|
Loading amount |
kg |
8000 |

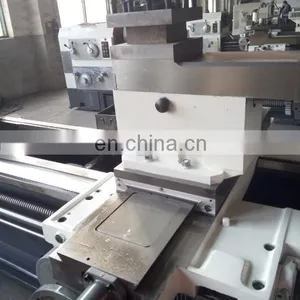

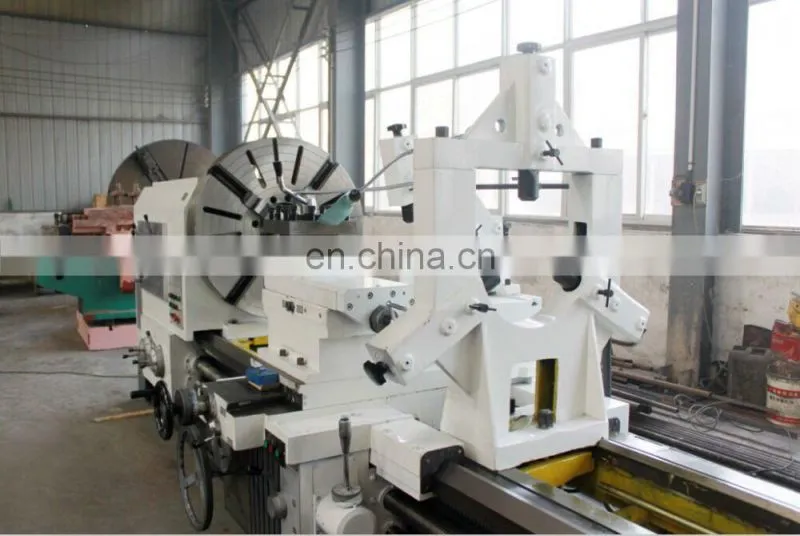

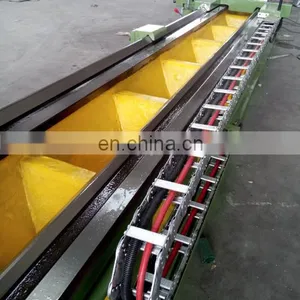

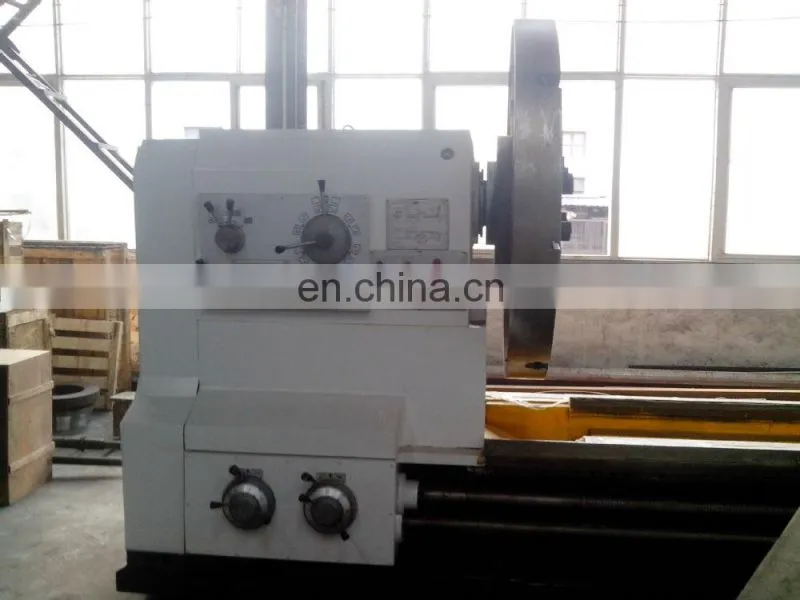

Pictures of Lathe CW61160B
