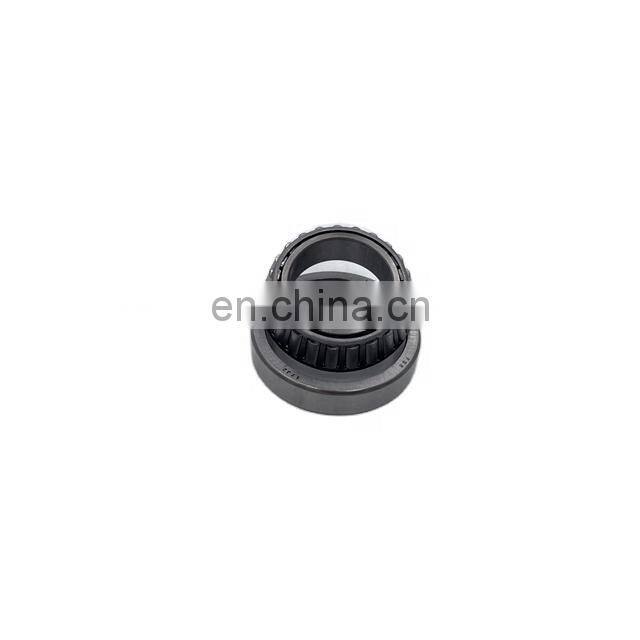

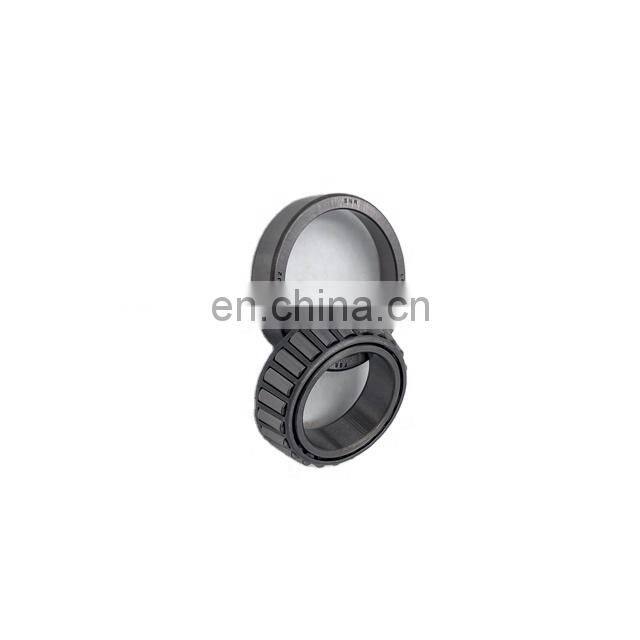

Tapered Roller Bearing LM68149/LM68111 2007407A1 Size 34.98x59.975x15.875 for Russia Cars a Low Price in Stock
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Front Bearing of the Niva Hub 32008kit 6-2007108A Kit Tapered Roller Bearing Size 40*68*19 for VAZ 2121 a Low Price in Stock
-
Hot Sale 7305(30305)/7307(30307 ) Kit Tapered Roller Bearing Size 25x62x18.25 35*80*22.75 for GAZ Car
-
Front Hub Bearing KRONER 7804 2101-3103025 Tapered Roller Bearing for VAZ 2101-07 a Low Price in Stock
-
Front Hub Bearing KRONER 7804/7805 2101-3103025/2101-3103020 Tapered Roller Bearing for VAZ 2101-07 a Low Price in Stock
-
Tapered Roller Bearings KRONER 7805 2101-3103020 26*57.15*17.462 Front Hub Bearing VAZ 2101-2107 in Stock
-
Hot Sale EPK 7305 30305 Tapered Roller Bearing Size 25x62x18.25 5 for GAZ Car
Product Description
Product name | tapered roller bearing LM68149/LM68111 2007407A1 size 34.98x59.975x15.875 in stock |
Usage | Single-row Taper Roller Bearing |
Size | 34.98x59.975x15.875 |
Car Make | Car Automobile transport Cranes and Loaders Truck Crane Cranes and Loaders Loader Tractor |
Place of Origin | China |
Brand Name | VLBG |
Model Number | LM68149/LM68111 2007407A1 |
Warranty | 12Months |
Inner diameter | 34.98MM |
Outside diameter | 59.975MM |
Height | 15.875MM |
Bearing type | Friction bearings |
Certificate | ISO9001/TS16949 |
Outer cage width | 11.938MM |
Weight | 0.175 kg |
Number of raceways | 1 |
Load capacity dynamic | 35.7 kN |
Load capacity static | 48.5kN |
Maximum speed with grease lubrication | 6400rpm |
Maximum speed with liquid lubrication | 8500 rpm |
single-row tapered angular contact roller bearing LM68149/LM68111
Designation : LM68149/LM68111
Dimensions, mm: 34.98x59.975x15.875
Inner diameter (d) - 34.98 mm.
Outer diameter (D) - 59.975 mm.
Working width (T) - 15.875 mm.
Width (height) (B) - 16.764 mm.
Outer cage width (C) - 11.938 mm.
Size (a) - 13.2 mm.
Size (r2 min.) - 1.2 mm.
The size of the mating parts (da min.) - 45.5
Size of mating parts (Da) - 53
Mating parts size (db min) - 39
The size of the mating parts (rb max.) - 1.2
The size of the mating parts (Db) - 56
Weight - 0.175 Kg
Load capacity dynamic (C) - 35.7 kN
Load capacity static (C0) - 48.5 kN
Maximum speed with grease lubrication - 6400 rpm
Maximum speed with liquid lubrication - 8500 rpm
Estimated coefficient (e) - 0.42
Estimated coefficient (Y0) - 0.79
Estimated coefficient (Y1) - 1.44
Number of raceways - 1
Seal - Not
Dimensions, mm: 34.98x59.975x15.875
Inner diameter (d) - 34.98 mm.
Outer diameter (D) - 59.975 mm.
Working width (T) - 15.875 mm.
Width (height) (B) - 16.764 mm.
Outer cage width (C) - 11.938 mm.
Size (a) - 13.2 mm.
Size (r2 min.) - 1.2 mm.
The size of the mating parts (da min.) - 45.5
Size of mating parts (Da) - 53
Mating parts size (db min) - 39
The size of the mating parts (rb max.) - 1.2
The size of the mating parts (Db) - 56
Weight - 0.175 Kg
Load capacity dynamic (C) - 35.7 kN
Load capacity static (C0) - 48.5 kN
Maximum speed with grease lubrication - 6400 rpm
Maximum speed with liquid lubrication - 8500 rpm
Estimated coefficient (e) - 0.42
Estimated coefficient (Y0) - 0.79
Estimated coefficient (Y1) - 1.44
Number of raceways - 1
Seal - Not
Description of angular contact roller bearing LM68149/68111 2007407A1
Angular-stop single-row roller bearing 2007407A1 GOST with tapered rollers and increased load capacity.
Split bearing with an outer ring that is tapered on the inside diameter and an inner double flanged ring that is machined on the
outside diameter for taper rollers, held by a pressed steel cage. Can be used at temperatures from -40 °C to +120 °C. Perceives
radial and axial load in one direction. Increased load capacity compared to similar bearings.
Advantages and disadvantages of roller bearings 2007407A1
A feature of the contact type (linear) helps the bearings:
1.5, twice the tonnage of related ball bearings
guarantee very high support strength
Possibility to reduce the dimensions of the racks
better perceive vibration, shock loads
The disadvantages of roller bearings 2007407A1 include:
high requirements for bearing alignment
excessive heat, noise
minimum possible turnover
Angular contact roller bearing 2007407A1
Types of bearings
Angular contact roller bearings 2007407A1 are produced in four types: lead, tapered, 4 and 2 in-line. The design of each type
provides reliability, trouble-free operation and good wear resistance. When choosing a roller bearing, remember the following:
speed
type and parameters of loading
required service life
working conditions
In addition, it is necessary to take into account the noise level, cage type, dimensions of angular contact bearings 2007407A1.
Device and use2007407A1
The best option: the use of this type of roller bearings in combination with other products that compensate for axial stresses.
Angular contact bearings 2007407A1 dampen predominantly radial, group loads.
There are closed and open angular contact roller bearings, and devices with small or large cages that hold significant
longitudinal stresses. Bearings 2007407A1 are made of steel grade 100Cr6 according to CAE52100. Some models have an alloy cage.
Angular contact bearings usually include a PA cage.
Roller bearings of this type are used in gearboxes, generators, extruders, fans, multipliers, vertical spindles. Bearings
2007407A1 have become an integral part of rotary units in metallurgical, machine-tool, printing, handling equipment.
Application of bearing LM68149/68111
Tapered roller bearings consist of an outer ring, an inner ring, rollers and a cage. This bearing contains tapered rollers for its rolling element, which are oriented to the inner ring of the back of the rib on the roller large end face. The racing path surfaces of the inner ring and outer ring and the roller contact surface are designed so that the respective apexes converge at a point on the bearing center line. Bearings are classified into standard, intermediate and steep types, according to their contact angle (α). The larger the contact angle, the greater the resistance of the bearing to axial load.
