Home > Products > Tapered roller bearing > Big Stock Russia Lada Vaz 2101-2107 Lada Image 7804,7805 Oe Number 21010-3101800-86 Front Wheel Bearing Kit

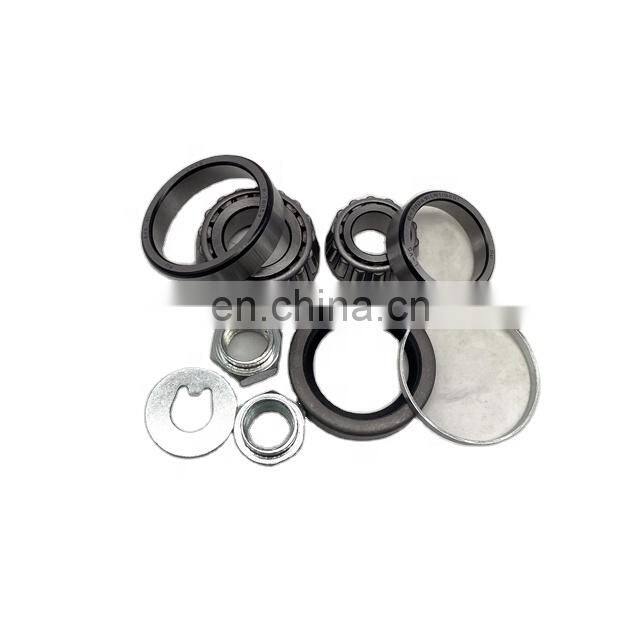

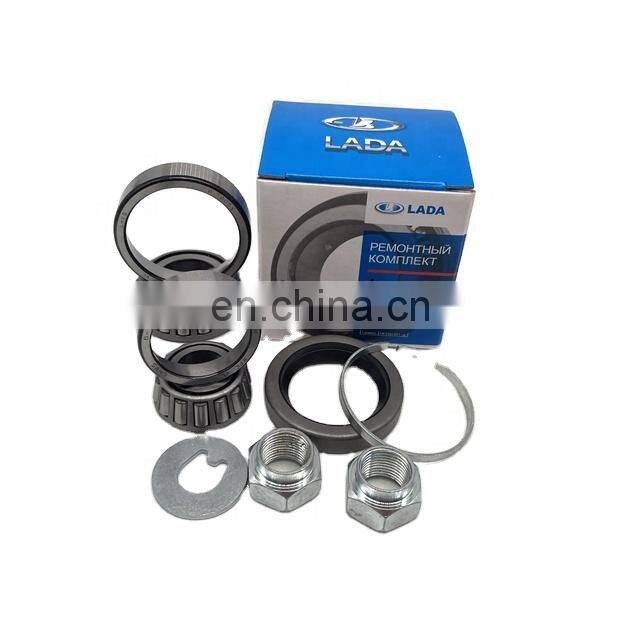

Big Stock Russia Lada Vaz 2101-2107 Lada Image 7804,7805 Oe Number 21010-3101800-86 Front Wheel Bearing Kit
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
VAZ-2121 2123 lada sport packing Front hub repair kit 21210-3101800-86 tapered roller bearing 2007108 32008 kit with big stock
-
front bearing of the Niva hub LADA image 21210-3101800-86 32008kit kit tapered roller bearing size 40*68*19 for VAZ 2121
-
Low price 21010-3101800-86 6-7804y 6-7805y front wheel auto bearing tapered roller bearing kit lada sport for VAZ 2101-2107
-
21210-3101800-86 Vaz-2121 2123 Front Hub Repair Kit Lada Image Packing 2007108 32008x Front Wheel Bearing Kit
-
L68111 / L68149 inch bearing 34.988x59.974x15.875mm (2pcs) inch tapered roller bearings
-
Promotional High Quality Home Use 7307 30307 26800350 Single Row Taper Roller Bearing
Product Description
Product Description
The bearing is a roller, angular contact, tapered (or this type is also called "with tapered rollers"), single-row, basic design, wide series. This design allows it to be used as hub bearings (VAZ front bearings). It is made according to the sixth degree of accuracy. contact angle? this type is from 10 to 18 °. With an increase in the taper of the outer ring, the axial load capacity increases and the radial load capacity decreases. During operation, very small and vice versa, excessively large gaps should be avoided, which can lead to an unacceptable increase in operating temperature and even destruction of bearing parts.
Bearing Specifications 7804, 7805:
Inner diameter - 19.05 mm;
Outer diameter - 45.25 mm;
Width - 15.494 mm;
Weight - 0.129 kg;
The number of rollers in the bearing - 14 pcs.;
Roller dimensions - 5.82 / 6.5x15.494 mm;
Load capacity dynamic - 27.5 kN;
Static load capacity - 27.5 kN;
The maximum rated speed is 11000 rpm.7805 bearing:
Inner diameter - 26 mm;
Outer diameter - 57.15 mm;
Width - 17.462 mm;
Weight - 0.226 kg;
The number of rollers in the bearing - 14 pcs.;
Roller dimensions - 6.3 / 7.06x12.4 mm;
Load capacity dynamic - 37.8 kN;
Static load capacity - 42.8 kN;
The maximum rated speed is 8000 rpm.
OE number:
21010-3101800-86 2101-3103020 2101-3103025 2101-3103034 2101-3103038 2101-3103079 00001004044171
Applicability:
VAZ 2101-2107
Designation GOST 520-2011 (27365-87): | 7804 7805 |
ISO 355, DIN 720 designation: | 6-7804 У, 6-7805 У |
Size: | 40x68x19 |
Packing: | VLBG single box packing, lada image famous brand original packing, customer packing |
Application: | VAZ-2121 (Niva), VAZ-2123 (Niva) |
OEM, ODM: | all available |
Packing & Delivery
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
