21210-3101800-86 Vaz-2121 2123 Front Hub Repair Kit Lada Image Packing 2007108 32008x Front Wheel Bearing Kit

21210-3101800-86 Vaz-2121 2123 Front Hub Repair Kit Lada Image Packing 2007108 32008x Front Wheel Bearing Kit photo-1
21210-3101800-86 Vaz-2121 2123 Front Hub Repair Kit Lada Image Packing 2007108 32008x Front Wheel Bearing Kit photo-2

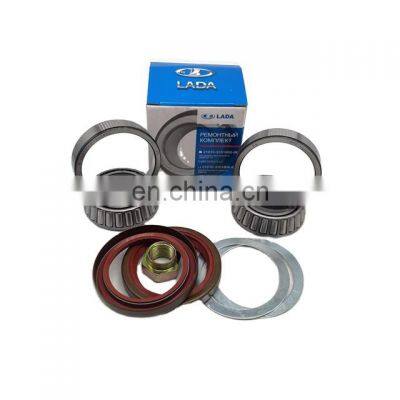

21210-3101800-86 Vaz-2121 2123 Front Hub Repair Kit Lada Image Packing 2007108 32008x Front Wheel Bearing Kit photo-3

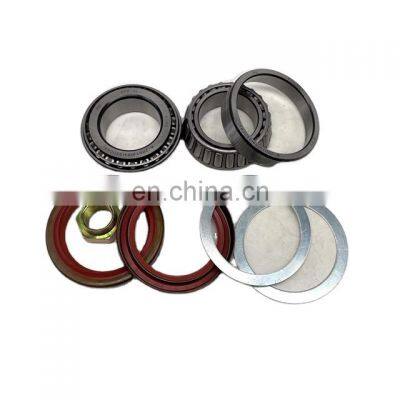

21210-3101800-86 Vaz-2121 2123 Front Hub Repair Kit Lada Image Packing 2007108 32008x Front Wheel Bearing Kit photo-4
21210-3101800-86 Vaz-2121 2123 Front Hub Repair Kit Lada Image Packing 2007108 32008x Front Wheel Bearing Kit photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2018
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description
The bearing is roller, angular contact, tapered (or this type is also called "with tapered rollers"), single-row, basic design. The bearing belongs to a series of extra light diameter. The degree of accuracy is 6 (reflected on the right in the number, separated by a hyphen). Most often, such products are manufactured with increased load-carrying capacity, which is reflected in the bearing number with the index A. Separators can be made of both steel and PCB. Since the main purpose of this product is the front bearing of the Chevrolet Niva hub, most motorists prefer steel (index A). However, it is worth knowing that if a bearing with such a cage scatters (which is not surprising, given the quality of our roads), it can damage the support. Textolite separator (letters AE to the right of the number) in this case will not be able to cause harm.
Bearing Specifications 2007108 Inner diameter - 40 mm; Outside diameter - 68 mm; Width - 19 mm; Weight - 0.278 kg; The number of rollers in the bearing - 21 pcs .; Roller dimensions - 7 / 11x19 mm; Dynamic lifting capacity - 40 kN; Static lifting capacity - 52 kN; The maximum rated speed is 7000 rpm.
6 - normal accuracy; 2 - dimensional series (increased height); 00 - basic design; 7 - roller bearing with tapered rollers; 1 - narrow series; 08 - code designation of the inner diameter. The marking of imported roller bearing 32008 can be deciphered as follows: 320 - narrow series tapered roller bearing; 08 - coding of the inner diameter.
Applicability:
Repair kit hub VAZ 2121-213 front AvtoVAZ LADA 21210-3101800-86 Hub bearing VAZ-2121,2123 set AvtoVAZ Repair kit hub VAZ 2121-213 front AvtoVAZ Repair kit hub front right left VAZ 2121 CS748 Repair kit hub VAZ 2121-213 front AvtoVAZ [ORG] 21210-3101800-86_set of wheel bearings ass! VAZ 2121
Designation GOST 520-2011 (27365-87):
2007108А
ISO 355, DIN 720 designation:
32008
Size:
 40x68x19
Packing:
VLBG single box packing, famous brand original packing, customer packing
Application:
VAZ-2121 (Niva), VAZ-2123 (Niva)
OEM, ODM:
all available

Analog number:

21210310180086
Packing & Delivery
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your's requestion
Company Profile
Established in 2009,Shandong Vanlin bearing Co., Ltd is located in jinan western industrial area, jinancity, shandong province.
Our company is an enterprise integrating R&D, production, sales and service. The company specializes in the production of
industrial bearing, agriculture bearing, Automotive bearings, Petroleum Drilling Bearing and so on. We can provide hub units,
wheel bearing and kits, tensioner pulley, clutch assembly bearing, gearbox bearing and other bearings
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and doing exporting by ourself.

Q:What’s your after-sales service and warranty?
A:1.12 months warranty or 30000km;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q: Do you provide samples ? is it free or extra ?
A: Samples and trial order are both available, the sample can be free if it's not a big value, customer is supposed to take the
courier charge.

Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, can also customize packaging box as per your
