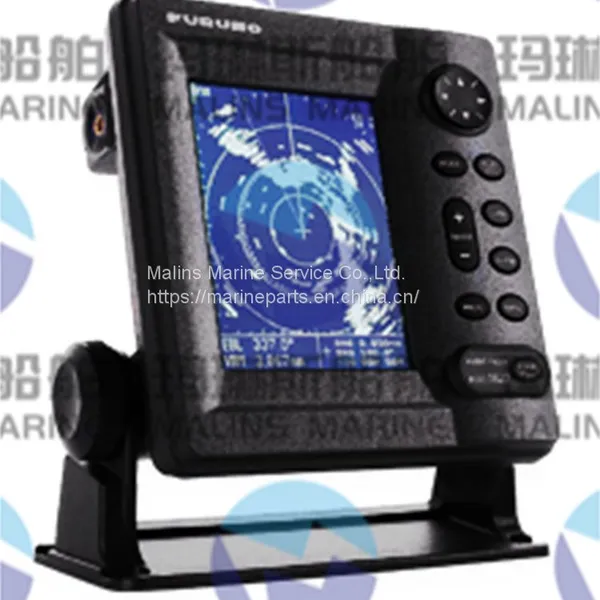

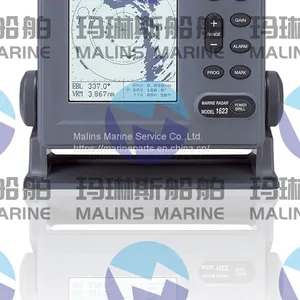

Furuno 1623 series Marine Radar LCD Display

Specifications

ANTENNA

Type                                       Mirostrip radiator enclosed in 380 mm radome

Beamwidth                            Hor. 6.2", Vert. 25°

Rotation Speed                     41 rpm (0.125 to 0.75 nm)

                                               31 rpm(1 to 2 nm)

                                               24 rpm(3 to16nm)

RF TRANSCEIVER

Frequency                              9410+30 MHz (X-band)

Pulselength & PRR                0.08 μs/3000 Hz (0.125 to 0.75 nm)

                                                0.3 μs/1200 Hz(1 to 2 nm)

                                                0.8 μs/600 Hz (3 to 16 nm)

Peak Output Power               2.2 kW nominai

IF Amplifier                            IF: 60 MHz

                                                BW: 15 MHz (0.125 to 0.75 nm)

                                                5 MHz(1 to 16 nm)

DISPLAY

Display Unit                           6" monochrome LCD, 4 gray tones,

                                               240 x 320 pixels,

                                               90mm(W)x120mm(H)

Accuracy

Range:                                   1.0% of range in use or 8 m,

                                               whichever is greater

Bearing:                                 EBL accuracy ± 1°

Range and Range Ring Interval

Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16 nm

Ring:  .0625  .125  .125  .25  .25  .5  .5  1  1  2  2  3  4nm

Echo Trail                             Interval: 30s, 1, 2, 6 min,or continuous

Interface (NMEA 0183 format)

BWC, BWR, DBK, DBS, DBT, DPT, GGA, GLC, GLL, GTD,

HDG, HDM, HDT, MTW, MWV, RMA, RMB, RMC, VBW, VHW,

VTG, XTE, ZDA

ENVIRONMENT

Temperature  (IEC 60945 Test method)

Antenna Unit:                      -25°C to +70°C

Display Unit:                        -15°C to +55°C

Water resistance   (IEC 60529 Test method)

Antenna Unit:     IEC IPX6, CFR46 (USCG)

Display Unit:       IEC IPX5, CFR46 (USCG)

POWER SUPPLY

12 to 24 VDC, 42 W (max), 8 W (in Watchman mode)

115/230 VAC with optional rectifer PR-62

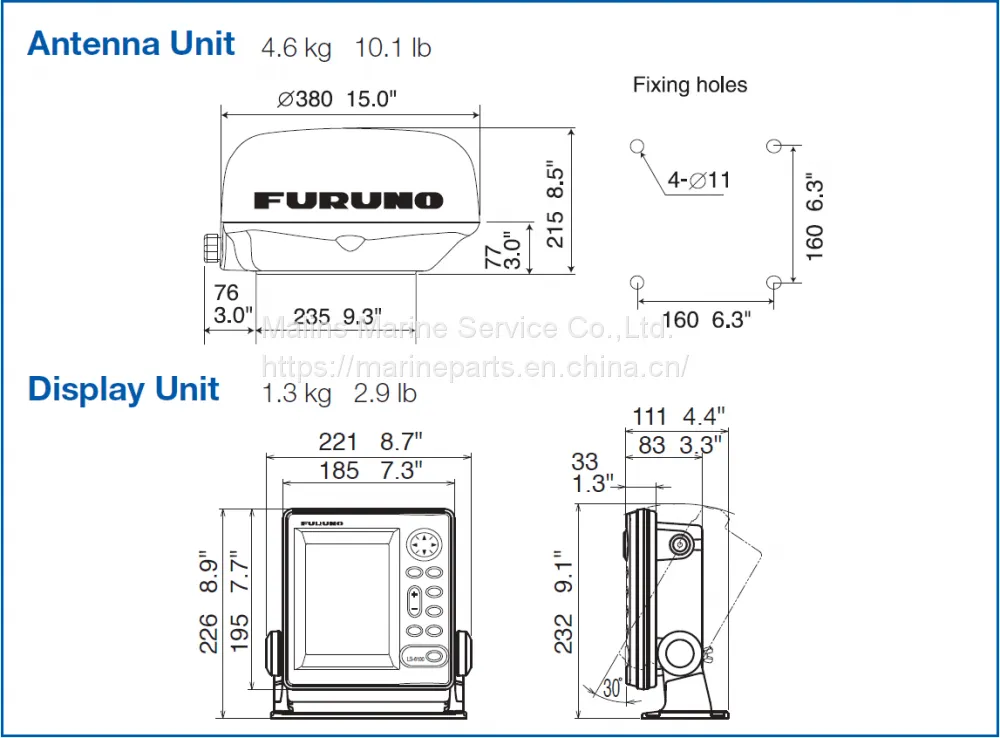

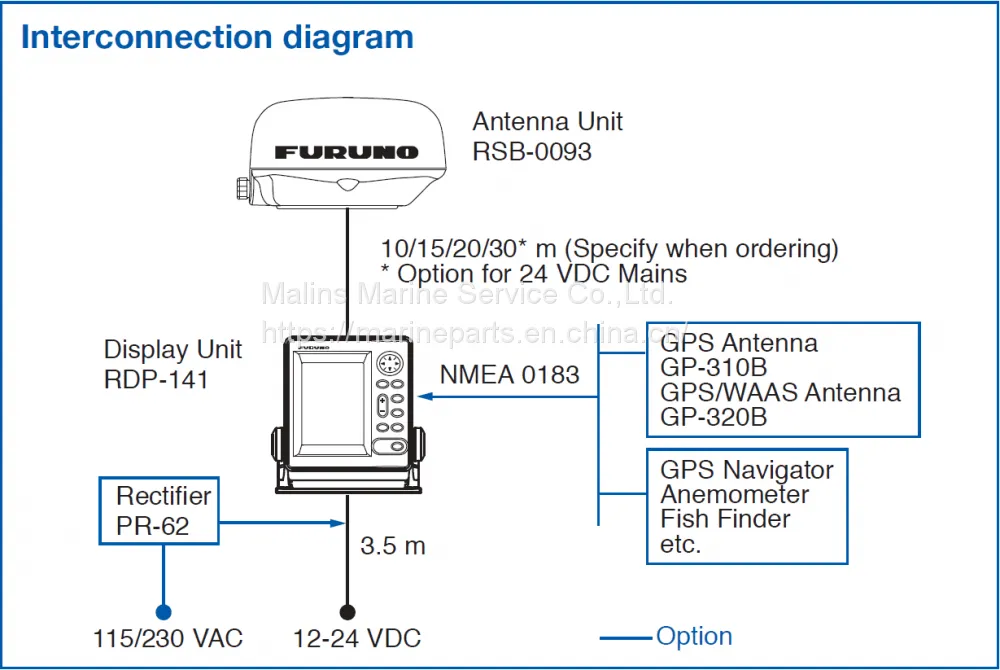

EQUIPMENT LIST

Standard

1. Display Unit                                                                        1 unit

2. Antenna Unit                                                                       1 unit

3. Antenna Cable 10/15/20 m (Specify when ordering)          1 pc

4. Power Cable 3.5 m                                                             1 pc

5. Spare Parts & Installation Materials                                    1 set

Option

1. Retifier PR-62 for 115/230 VAC mains

2. NMEA Cable, 5 m (MJ-A7SPF0007-050)

3. NMEA Cable, 0.5 m branched (MJ-A1 5A7F0004-005)

4. NMEA Cable, 2 m 7P to 7P (MJ-A15A7F0005-020)

5. Antenna Bracket OP03-93

6. External Buzzer XH3-BZ-L 970

7. Antenna Cable, 30 m (for 24 VDC Mains)

Features

Small in size, big on powder, clariy and advanced rader features

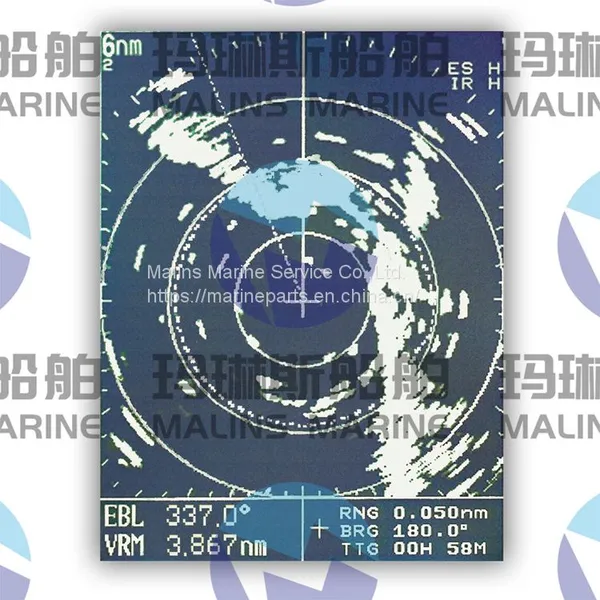

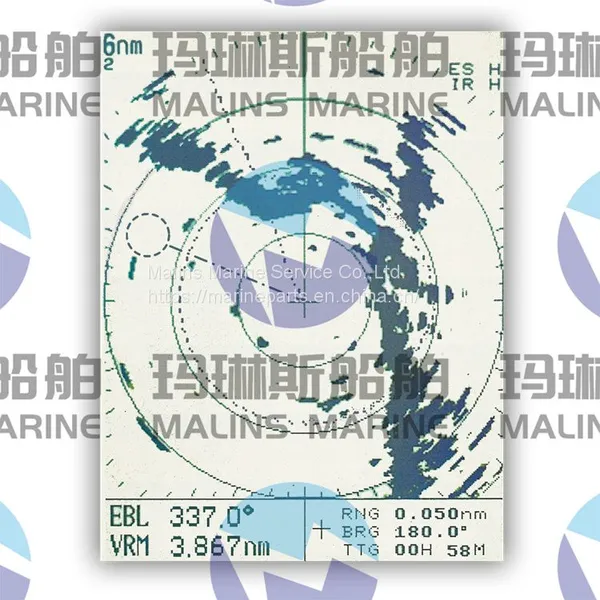

The slim-line monochrome LCD display and lightweight radome antenna make it ideal for power or sail boats as small as 17 feet. This 2.2kW radar has a 16 nautical mile range, yet will zoom down to 1/8 nautical mile for tight navigation in harbors and inlets. The 1623 radar lets you readily identify objects, thanks to a high definition 6" Silver Bright LCD screen that clearly separates targets. Plus, the four-tone target display lets you easily differentiate between stronger and weaker echoes, helping to alert you of any danger.

User-friendly operating modes

The 1623 features many user-friendly operating modes, including normal, Off-center, Zoom, and Watchman mode. In Watchman, mode, the antenna is stopped and transmission is off, while the screen displays useful navi data only. The Radar wakes up at specified time intervals (5, 10, or 20 minutes) and operates for one minute. If a target enters the Guard Zone, an audible alarm sounds and the Radar goes into normal operating mode, cancelling the Watchman mode. The alarm may also be set to work for a target leaving the Guard Zone.

Big rader features in a compact display

Standard features include EBL's (Electronic Bearing Lines), EVRM's (Electronic Variable Range Markers), TLL (Target Latitide/Longitude) output, Echo Trail, Guard Zone Alarm, Ran Clutter rejection, and automatic control of tuning sensitivity. These features ensure optimum performance in detecting and ranging targets of interest. You can also set a waypoint mark, or 'lollipop,' to show the location of a destination waypoint that you've set on a connected GPS Navigator or Chart Plotter
