Furuno 1815 series Marine Radar 001-489-540-00 Signal Cable

SPECIFICATIONS

ANTENNA

Type                                           Φ488 mm (19") radome

Beamwidth                                 Horizontal 5.2°, Vertical 25°

Rotation Speed                          24 rpm

RF TRANSCEIVER

Frequency                                   9410 ±30 MHz (X-band)

Pluselength & PRR                     0.08 μs/360 Hz (0.0625-0.5 NM)

                                                    0.3 us/360 Hz (0.75-2 NM)

                                                    0.8 us/360 Hz (3-36 NM)

Peak Output Power                     4 kW

IF Frequency                               IF :60 MHz

                                                    BW: 20 MHz (0.0625 to 0.5 NM)

                                                            4.5 MHz (0.75 to 36 NM)

DISPLAY

Display Type                                       8.4" color LCD

Effective Display Area                        128.2 (W) x 170.9 (H) mm

Pixel Number                                      480 x 640 (VGA)

Presentation Mode                             Head-up, Course-up*, North-up*, True view*

                                                           True motion**

Target tracking (TT)*                           Up to 10 targets

AIS                                                      Up to 100 targets

                                                           * Heading data required

                                                           **Heading data and position data required

Language                                           English, French, Spanish, German, Italian,Portuguese, Danish, Norwegian,                                                                                 Russian,Chinese, Thai, Vietnamese, Indonesian,Burmese, Korea, Japanese

Accuracy                                            Range : 1.0% of range in use or 0.01 NM, whichever is greater

                                                           Bearing: EBL accuracy±1°

Range and Range Ring Interval         Range : 0.0625, 0.125, 0.25 0.5, 0.75, 1, 1.5, 2,3, 4.6,8, 12, 16, 24, 36 NM

                                                           Ring : 0.03125, 0.0625, 0.125, 0.125, 0.25, 0.25,0.5,0.5,1,1,2,2,3, 4, 6, 12 NM

EchoTrail                                            Type: True* or relative trails

                                                           Interval: 15, 30s, 1,3, 6, 15, 30 min, or continuous

                                                           * Heading data required

Minimum Range                                  25m

Range Discrimination                          25 m

Interface (NMEA0183 format)             Input: ALR, BWC, BWR, DBT, DPT, GGA, GLL,GNS, GSA,GSV, HDG, HDT, HDM,                                                                              MTW,MWW, RMB, RMC, THS, TTM, VDM,VHW, VTG, WWR, wwT, XTE, ZDA

                                                             Ouput : ACK, RSD, Tll, TTM

ENVIRONMENT

Temperature                                          Antenna Unit: -25 °C to +55 °C

                                                              Display Unit : -15 °C to +55 °C

Waterproofing                                        Antenna Unit: IPX6

                                                               Display Unit : IP56

POWER SUPPLY              12 -24 VDC: 3.2-1.6A

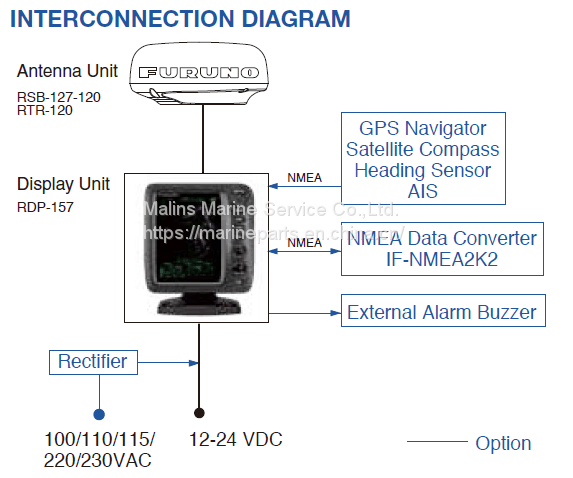

EQUIPMENT LIST

Standard

1. Display Unit RDP-157

2. Antenna Unit RSB-127-120

3. Antenna Cable 10/15/20/30 m specify when ordering

4. Power Cable 3.3 m

5. Spare Parts & Installation Materials

Option

1. Antenna Bracket OP03-209

2. External Buzzer OP-3-21

3. NMEA Data Converter IF- NMEA2K2

4. Flush Mount Kit

FEATURES

Affordable color radar with advanced features

The Furuno 1815 is a standalone Radar package that features an 8.4” color LCD screen and stylish, low-profile 4kW radome antenna. It is designed for a wide variety of vessels, including pleasure craft, workboats and small fishing boats that require an easy-to-use, true color Radar at an affordable price point.The unit allows you to select from several adjustable display colors to ensure that it can be viewed in a variety of conditions. The gimbal mount allows the display to swivel when desktop mounted, allowing the user to adjust the display angle for optimal viewing comfort.

Automatic gain reduction ensures a sharp picture

The automatic gain reduction on the 1815 makes use of algorithms that have been refined over many decades of Furuno experience and innovation. This means the 1815 is second to none in clutter rejection. With no input from the user, this Radar will automatically eliminate unnecessary echoes and present a clear display image with every sweep of its antenna. This ensures that you will be able to acquire other vessels, buoys and objects on the sea surface in good weather, or when sudden fog and storms make the visibility poor.

Fast Target Tracking and other new Furuno features

Furuno’s Fast Target Tracking (TT) function allows the user to manually or automatically track up to 10 targets. After selecting a target, it takes only seconds for a speed and course vector to be displayed, making quick work of determining the safety of approaching or moving targets. When using Furuno’s proprietary True Trail mode, moving objects will show a gradation of target trails in their wake, making it possible to gauge the movement of targets at-a-glance. When connected to a Furuno AIS, up to 100 targets can be tracked and displayed on the screen, allowing the operator to instantly gather important information about other AIS-equipped vessels nearby.
