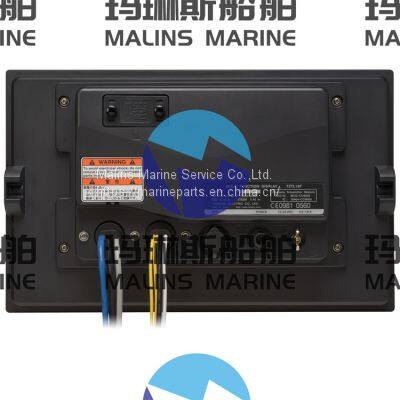

Furuno 1835 series Marine Radar Signal Cable 001-409-520-00

Specifications

ANTENNA RADIATOR

Type

MODEL 1835                                                            Printed array

MODEL 1935/1945                                          Slotted waveguide array

Length and Rotation Speed

MODEL 1835                                                     Radome 60 cm(RSB-0071) 24 RPM

MODEL 1935                                                     Open 100 cm (XN10A) 24 or 48 RPM

MODEL 1945                                                     Open 120 cm (XN12A) 24 or 48 RPM

Wind Load (for MODEL 1935/1945)

24 RPM                                                               100 kn relative wind

48 RPM                                                               70 kn relative wind

Beamwidth

ANT9210:                                                            Hor. 4.0°, Vert.20° .

XN10A:                                                                Hor.2.4°,vert.22°

XN12A                                                                 Hor. 1.9°, vert. 22°

RF TRANSCEIVER

Frequency                                                         9410±30 MHz (X-band)

Output Power

MODEL 1835/1935                                            4 kW

MODEL 1945                                                     6 KW

DISPLAY

Screen Size                                                      10.4" color LCD

Pixel Number                                                    640 (H) x 480 (V), VGA

Effective Diameter                                           158 mm

Echo Colors                                                      32 levels

Display Modes                                                  Head-up, Course-up*. North-up*,

                                                                          True viewr*,Tue motion**

                                                                          *Heading data required

                                                                          **Heading and position data required

Range Units                                                     nm,sm, km

Range Scales and Range Ring Intervals (nm)     Range: 1/16, 1/8, 1/, 1/2, 3/4, 1, 1.5, 1.6, 2,3, 3.2, 4, 6, 8, 12, 16, 24, 32,                                                                                                  36,  48*, 64**

                                                                                 Ringe:1/32, 1/16, 1/8, 1/4, 1/2, 0.8, 1,2,3,4, 6,8, 12*,16**

Minimum Range                                                      25 m

Range Discrimination                                             25 m

Echo Trails

Type                                                                           True or relative trails

Trail Length:                                                              15,30 sec., 1, 3, 6, 15, 30 min, or continuous Trail

Trail Width:                                                                Narrow, Normal

Target Tracking (Required optional board ARP-11)

Acquisition:                                                                 Auto, Manual

Number of targets:                                                    10 targets max

AIS Functions (Data input from AIS is required)

Symbols:                                                                    Sleeping, Activated, Dangerous, Selected, Lost targets

Numbe r of targets:                                                   100 targets max.

EQUIPMENT LIST

Standard

1. Display Unit                                                              1 unit

2 Antenna Unit (Specify when ordering)                     1 unit

3. Antenna Cable

MODEL 1835                         10, 15 20 or 30m            1 pc

MODEL 1935/1945                10, 15 20 or 30m           1 pc

4. Power Cable 5m                                                      1pc

6. Installation materials and spare parts                     1 set

Option

1. Auto Plotter ARP-11

2 Rectitier

MODEL 1835                                                                  PR-62

MODEL 1935/1945                                                         RU-3423

3. External Alarm Buzzer                                                OP03-21

4. Interface Cable

MJ-824LPF0010                                                             10, 20, or 30m

MJ-A7SPF0007-050C                                                     5m

MJ-A6SPF0007-1000                                                     10m

MJ-A10SPPW0001+R                                                    0.2 m

5. Antenna Bracket (for MODEL 1835)                          OP03-92

Features

Crystal clear target presentation and automatic clutter rejection

The new 1835/1935/1945 Radar Series features a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats. This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation. It features superb detection of even small targets both at short and long range.

Easily track up to 100 AIS targets and 10 ARPA target

With the optional ARP11 internal ARPA PCB, up to 10 ARPA targets can be tracked and overlaid on the radar screen to assist the operator in monitoring other vessel movements. With the connection of an external AIS receiver, up to 100 AIS may also be tracked. A variety of navigational information such as vessel name, speed, ROT, draft, and the destination of the selected targets can be included in real time. AIS targets are visible on-screen even if they are obscured by large ships or islands
