Related Products
- Product Name: DOM Tube ASTM A513 Welded Precision Cold Drawn Mechanical Tubing
- Application: race car frames, roll cages, motorcycle frames, spindles, rollers, shafts, cylinders, etc.
- Size(mm): O. D.: 6.0-168.0 W. T.: 1.0-15.0mm L: Max 12000mm
- Workability: Easy to Weld, Cut, Form, and Machine.

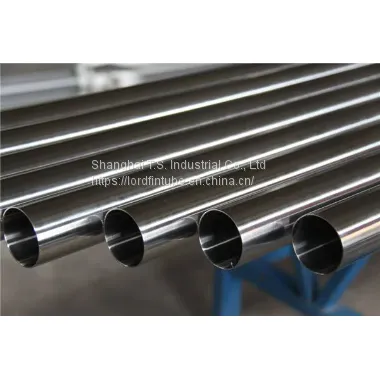

DOM Round Steel Tube is a welded mechanical round steel tube with the internal weld seam removed creating a smooth internal surface. DOM round steel tube has been drawn over a mandrel to produce a tube having more exact dimensional accuracy and tolerances, and a very smooth inside and outside finish. DOM round steel tube is ideal for more stressful applications requiring higher quality, increased mechanical properties, uniformity, strength, and soundness.
DOM Mechanical Tubing
We manufacture precision Drawn Over Mandrel (DOM) mechanical tubing in a range of sizes to meet your needs. Our advanced operations maintain precision quality control with the tightest tolerances, and we perform comprehensive, automated non-destructive inspection and analysis to verify integrity.
Specifications
- ASTM A513 Types 5 and 6
- Tempers: As drawn, stress relief annealed (SRA), full annealed
- Standard carbon steel / alloy grades 1010AK, 1020AK, 1026AK, ST52.3, 4130
- Variety of hardness levels and physical properties
- Applications SAE J525 Welded Cold Draw Low Carbon Steel Tubing annealed for bending and flaring
Size range:
- O.D.:30-350mm
- W.T.:1-15mm
- L: 12000mm or Cut to Short Pieces as specified length
Delivery Condition:
- BK, BKW, BKS, GBK, NBK
- CDW DOM Steel Tubing Characteristic:
- Good concentricity
- Good OD and ID tolerance
- High Precision
- Stable quality
- Smooth Roughness
Production Process:
- ERW Steel Tube and Cold Drawing or Cold Rolling Production
- Applications: for Bending and Flaring, Auto Parts
EN10305-2 DOM Tubing for Oil Cylinders
Product Description
- Applications: for Auto Parts/Machinery Parts/ Oil Cylinder Tube/Motorcycle Shock Absorber/ Auto Shock Absorber Innder Cylinder/ Telescopic Cylinders
- Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm
- Steel Grade: E155, E195, E235, E275, E355.
- Heat treatment method: +Cc, +LCc, +SR, +Ad, +N
DOM Steel Tubing ASTM A513 for Automotive Industry
Product Description
- Applications: for machinery, mechanical engineering, automotive parts
- ASTM A513 Electric resistance welded carbon and alloy steel mechanical tubing
- Size range: O.D.:6-350mm W.T.:1-12.5mm L:max12000mm
Steel DOM Tubing EN10305-2 Hydraulic Steel Tubing
Product Description
- Applications: for Auto industry/ for machinery use/ Oil Cylinder Tube/ Motorcycle shock absorber/ Auto shock absorber innder cylinder/Telescopic Cylinders
- Size range: O.D.:6-350mm W.T.:1-35mm L:max12000mm
We work with OEMs across the country, and our DOM tubing is used in a wide variety of industrial applications — from agriculture to automotive, fluid power to mining, and everything in between.
DRAWN OVER MANDREL (DOM) TUBING
DOM tubing is produced from ERW tubing shells that are cold-drawn through a die and over a mandrel. Commonly produced from 1020 / 1026 steel to ASTM A513, Type 5. It is also available in certain alloy grades. DOM offers superior dimensional tolerances, concentricity, and mechanical properties.
6 PRIMARY REASONS TO BUY DOM TUBING:
- Close Tolerances
- Mechanical Properties
- Yield, Tensile, Elongation, and Rockwell Strength
- Superior Surface Finish
- Size Availability is Nearly Infinite
- Excellent Concentricity and Eccentricity
