High Accuracy Instant Vision Measuring Machine Suppliers
- 100 Set / Sets per Month
- SHENZHEN
- T/T PayPal Cash
- 30 days
-
Hot Sale High Quality Instant Vision Measuring Machine
-
Hot Sale High Quality Instant Vision Measuring Machine
-
High Accuracy Instant Vision Measuring Machine Suppliers
-
Factory Equipment For Sale High Accuracy Horizontal Non-contact Instant Vision Measuring Machine
-
Factory Equipment For Sale High Accuracy Instant Vision Measuring Machine
-
Factory Equipment For Sale High Precision Instant Vision Measuring Machine
Product Details
Model Number: | HD-50VH | Brand Name: | HanDing | Place of Origin: | China |
Product Description
Instrument introduction

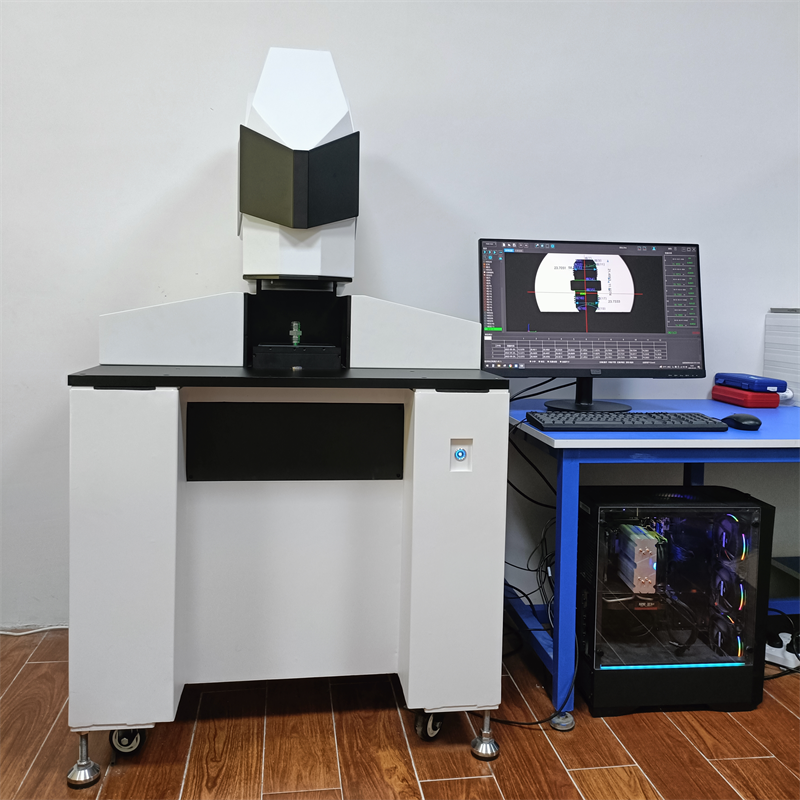

The stant vision measuring machine has the characteristics of rapid measurement and high precision, it perfectly combines far-heart imaging with intelligent image processing software,and will be the tedious measurement task, become extremely simple.
You simply place the workpiece in the effective measurement area, which instantly completes all two-dimensional size measurements.
Product Name | Horizontal and vertical integrated instant vision measuring machine | |
Model | HD-50VH | |
Image Sensor | 20 million pixel CMOS*2 | |
light receiving lens | Bi-telecentric lens | |
Vertical lighting system | White LED ring spotlight with surface | |
Horizontal lighting system | Telecentric Parallel Epi-Light | |
Object view | vertical | 4*3mm |
horizontal | 42*28mm | |
Repeatability | ±2um | |
measurement accuracy | ±3um | |
Software | FMES V2.0 | |
Turntable | diameter | φ30mm |
load | <3kg | |
range of rotation | 0.2-2 revolutions per second | |
Vertical lens lift range | 50mm,automatic | |
Power supply | AC 220V/50Hz | |
Working environment | Temperature:10~35℃,humidity:30~80% | |
Equipment power | 300W | |
Monitor | Philips 27" | |
Computer host | intel i7+16G+1TB | |
Measurement functions of the software | Points, Lines, Circles, Arcs, Angles, Distances, Parallel Distances, Circles with Multiple Points, Lines with Multiple Points, Arcs with Multiple Segments, R Angles, Box Circles, Identify Points, Point Clouds, Single or Multiple Quick Measurement.Intersect, Parallel, Bisect, Perpendicular, Tangent, Highest Point, Lowest Point, Caliper, Center Point, Center Line, Vertex Line,Straightness, roundness, symmetry, perpendicularity, position, parallelism,Position tolerance, geometric tolerance, dimensional tolerance. | |
Software marking function | Alignment, vertical level, angle, radius, diameter, area, perimeter dimension, thread pitch diameter, batch dimension, automatic judgment NG/OK | |
Reporting function | SPC Analysis Report, (CPK.CA.PPK.CP.PP) Value, Process Capability Analysis, X Control Chart, R Control Chart | |
Report output format | Word、 Excel 、TXT、PDF |
Application industry
Instant vision measuring machine is widely used in machinery, electronics, mold, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical devices, clocks, knives and other small size of products and parts of the batch rapid measurement.
