BOPP Plastic Film Folding Machinery
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1993
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Pneumatic Hole Punching MachineNegotiableMOQ: 1 -
Automatic Manual Oil Filling Palm Plastic Carry Bag Cutting Portable Hydraulic Press Ram Hole Punching Trimming MachineNegotiableMOQ: 1
-
High Quality High Speed Rotogravure Printing MachineNegotiableMOQ: 1
-
Paper Straw Making MachineNegotiableMOQ: 1
-
Rice Straw Paper Making Machine With Factory PriceNegotiableMOQ: 1

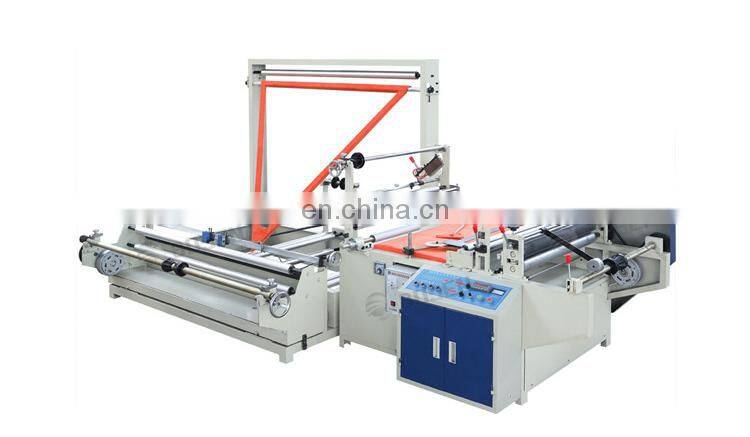

BOPP Plastic Film Folding Machinery
1. Application:
This machine used to fold plastic film such as OPP, CPP, PP,PE,POF before making bag.
2. Feature:
1) Unwinding and rewinding motor sychronized running, ensure material feeding stable and smooth.
2) Magnetic brake for unwinding tension control.
3) Magnetic clutch for rewinding tension control.
4) Unwinding with double photocell for automatic web-guiding.
5) With the function of bottom insert and double side-adhesive tape adding.
6) Main motor with frequency converter for speed regulation.
3.Option
1) Pearlized film insterting device
2) Meter counting device
3) Air shafts
4) Waste edge cuttng device
| Model | BS 600 | BS 800 | BS1000 |
| Width of unwinder | 1200mm | 1600mm | 2000mm |
| Width of Rewinder | 600mm | 800mm | 1000mm |
| Speed Max | 0-70m/min |
||
| Material | LDPE LLDPE PP PVC BOPP POF CPP Nylon..... | ||
| Weight | 500KG | 600kg | 800kg |
| Voltage | AC 220V 50HZAC 220V 50HZ | ||
| Power | 2KW | 2.5kw | 3kw |
| Dimension | 3600X1500X1700mm | 3600x1700x1700mm | 3600x1900x1700mm |
