Product Description

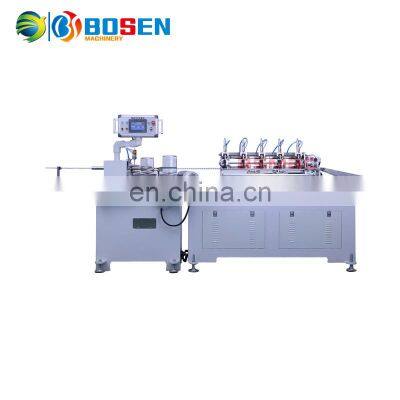

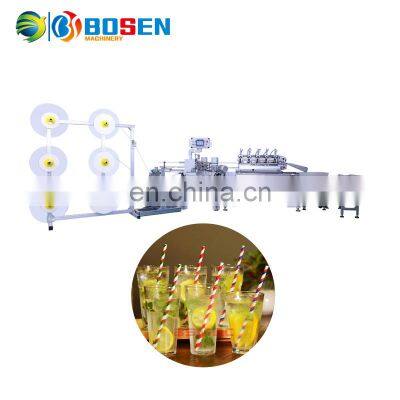

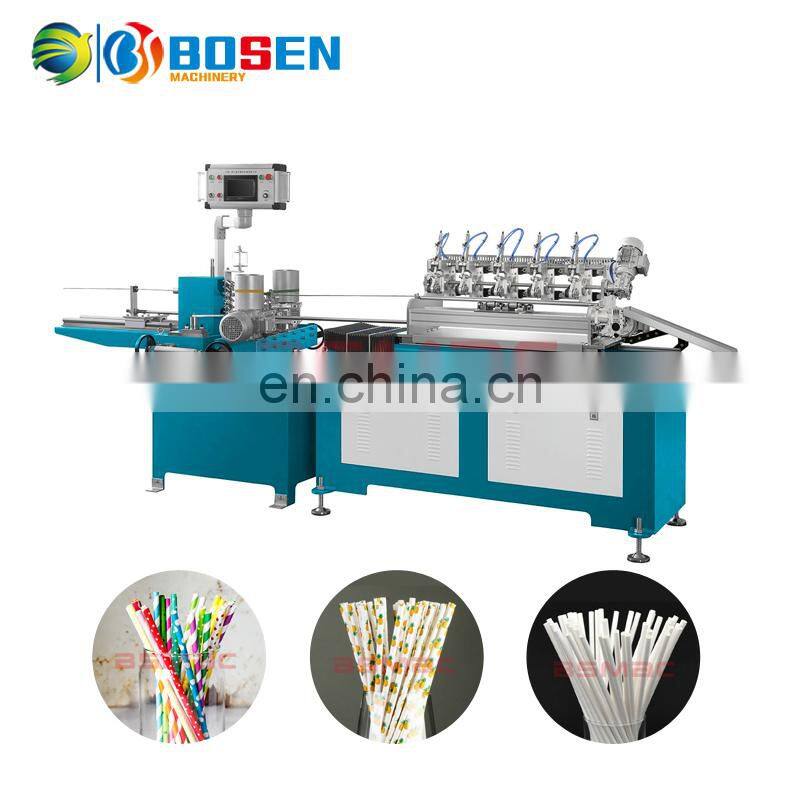

PAPER STRAW MAKING MACHINE

This Machine is suitable for producing different sizes of paper straws and very small paper tubes.

[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.

[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.

SPECIFICATIONS FOR PAPER STRAW MAKING MACHINE BSXG50
Paper Diameter
5-10mm   adjustable
PLC
Taiwan Delta brand
Roll Thickness
0.25-1mm
Operation
1 person
Cutting Length
100-800mm
Fixing Length
Encoder  and computer
Working Speed
30-45m/min
Servo Motor
Japanese Yaskawa brand
Glue Feeding
Automatic online
Belt adjustable
by hand
Number Cutter Blades
5 groups
Package  Dimension
 3300*1200*1600mm
Powder Supply
380v  3phases
Machine whole Dimension
7200*4800*1500mm
Paper Layers
2 or 3 layers (2 or 3 piles)
Machine Training
For free
Wound Sheets
Two heads
Machine Guarantee
2 years
Inverter
3.7kw Taiwan Delta brand
Machine Weight
1200-1500kgs

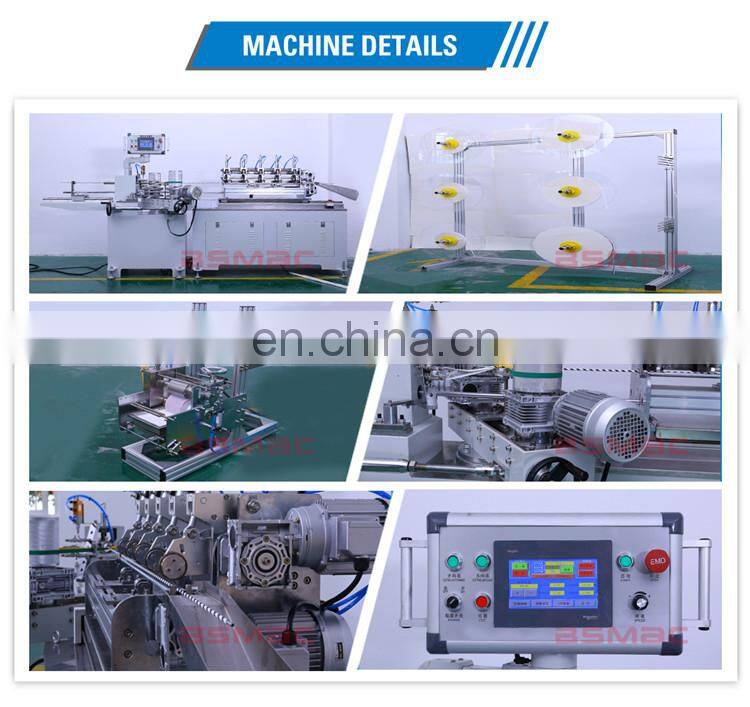

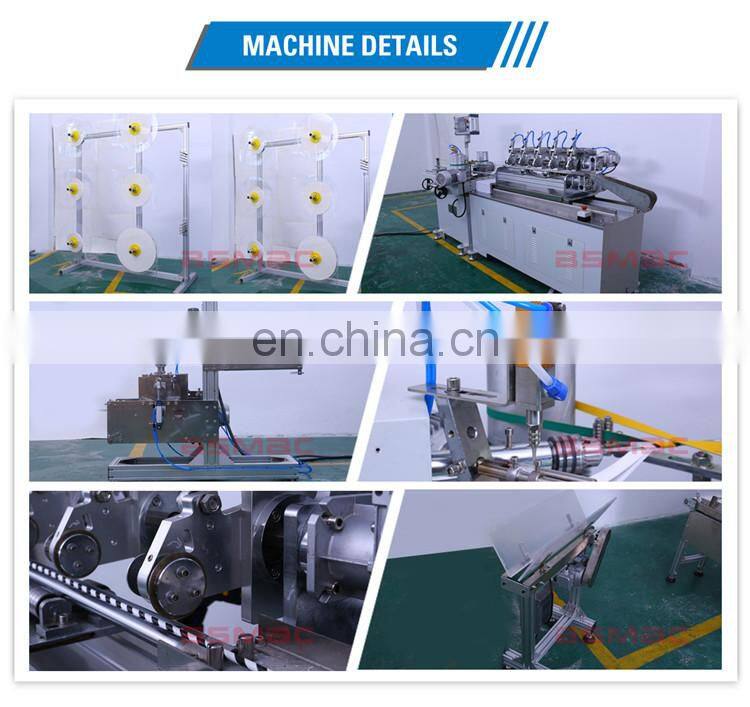

Detailed Images
Certifications
Our Service

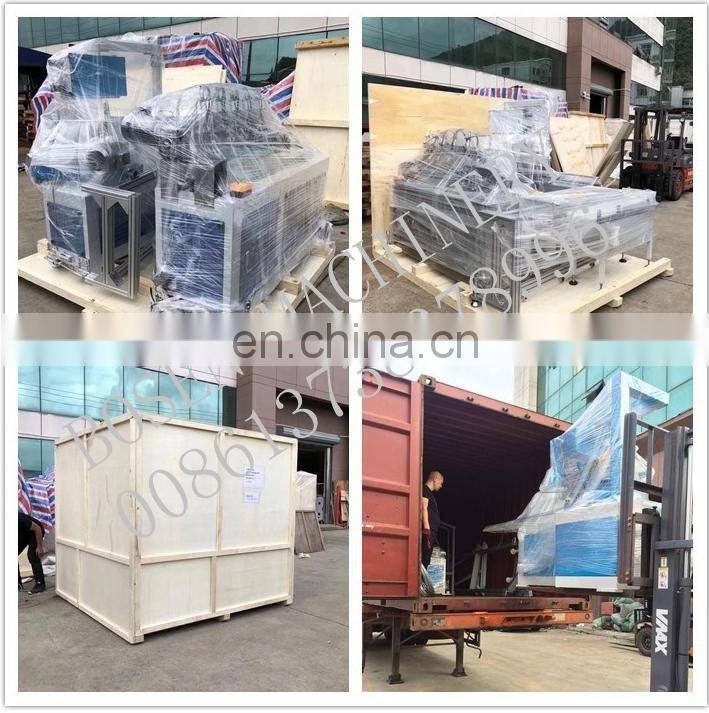

Packing & Delivery
Related Products

Paper Printing Machine with link

98.8% Response Rate

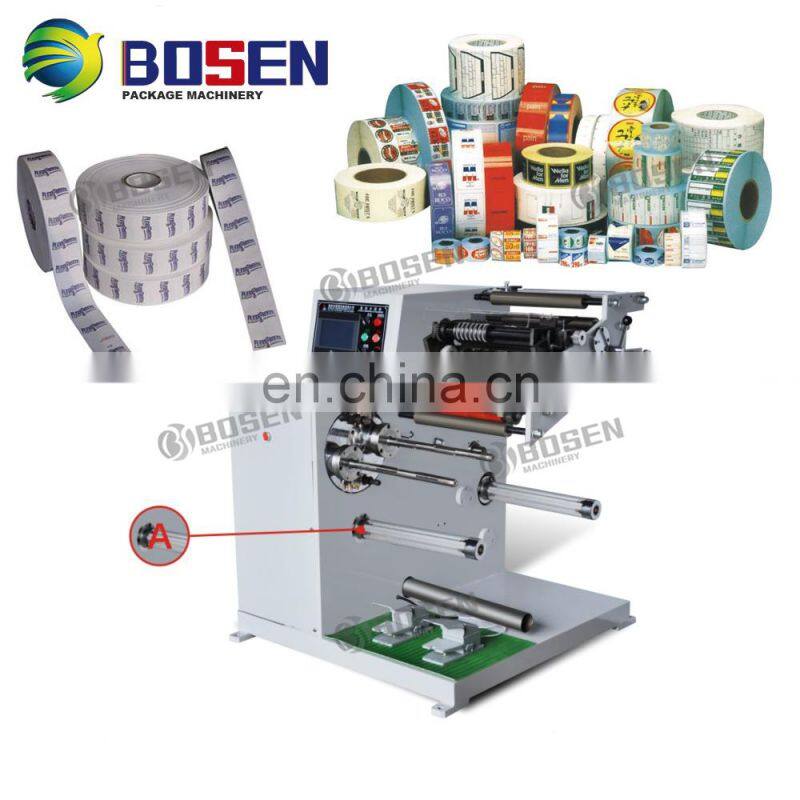

Paper Slitting Machine with link

99.8% Response Rate

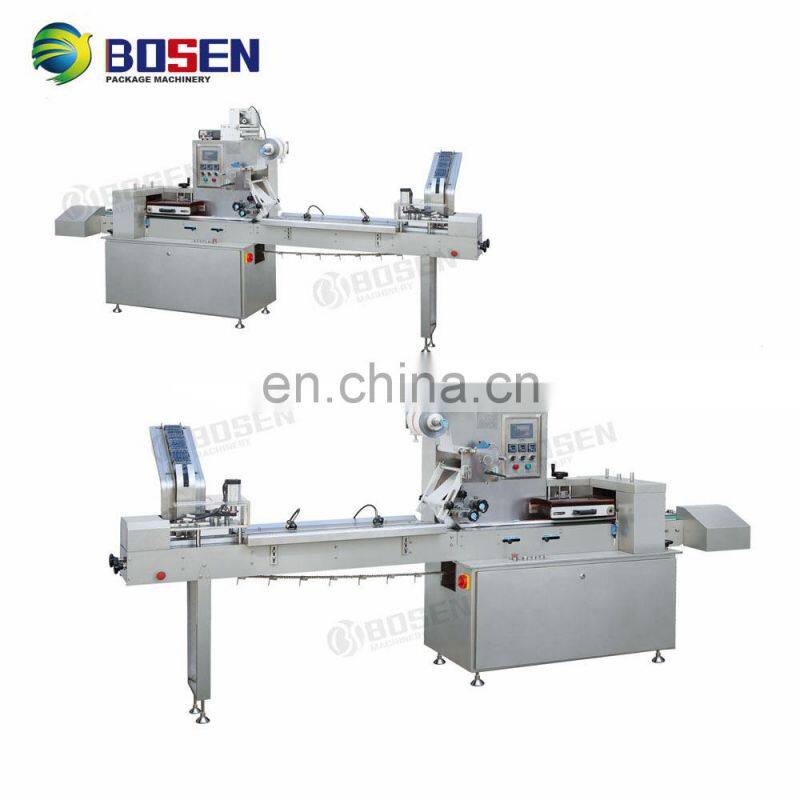

Packaging Machine with link
