Home > Products > Cutting Machine > shoe cover Hydraulic Cutting Machine
shoe cover Hydraulic Cutting Machine
- 1000 per Month
- T/T Credit Card
Product Description
Shoe cover Hydraulic Cutting Machine
Range of Application
This hydraulic cutting machine is mainly suitable for die cutting single or multiple layers of nonmetal rolled materials by die cutter. It is widly used in many industries, such as:
Abrasives, abrasive paper
Leather and leathergoods – shoe sole/uppers, wallets, purses, belts
Clothing – components for hats, ties, collars, shoulder pads
Footwear components – shoes, insoles, insole socks, uppers, straps
Rubber, Foam and sponge – gaskets, seals, washers
Toys – soft toys, advertising novelties, mini jig-saw puzzles, etc.
Features of Hydraulic Cutting Machine
1.This hydraulic Cutting Machine is mainly suitable for cutting one layer or layers of leather, rubber, plastic, paper-board, fabric, chemical fibre, non-woven and other nonmetal rolled materials by die cutter.
2. This clicking Machine is widly used in sheet material industry supplies, automotive interior floor mats, steering wheel , seat, packaging material plate leather, carpet, abrasives abrasive paper, football, volleyball, shoemaking class cutting equipment of insole, sole, etc.
3. It adopts gantry frame structure which is made of profile steel, high intensity and without deformation.
4. The cutting head automatically and horizontally move, with excellent operating visual field, safe and reliable.
5. The special design of the hydraulic system, low noise and less oil consumption. Differential oil way is adopted to allow rapid and convenient cutting.
7. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
8. Products of special specifications can be customizable.
Reference Technical Data (Customizable)
Model | KT-C | |||||
Maximum Cutting Force (ton) | 25 | 25 | 25 | 50 | 50 | 50 |
Working Table (mm) | 1800*500 | 2000*500 | 2200*500 | 1800*550 | 2000*550 | 2200*550 |
Travel Head Size (mm) | 500*500 | 500*500 | 500*500 | 550*550 | 550*550 | 550*550 |
Adjustable Stroke (mm) | 5-150 | 5-150 | 5-150 | 5-150 | 5-150 | 5-150 |
Motor Power (kw) | 2.2 | 2.2 | 2.2 | 4.0 | 4.0 | 4.0 |
Estimated Machine Dimension (mm) | 2200*620*2000 | 2400*620*2000 | 2600*620*2000 | 2200*620*2000 | 2400*620*2000 | 2600*620*2000 |
Estimated G.W (kg) | 2300 | 2800 | 3500 | 3500 | 4200 | 5000 |
Option for Travel Head Hydraulic Cutting Machine:
- Rotary head
- Machine Color
- Servo Motor
- Imported oil pump
- Roll Holding Gantries
- Bed Size

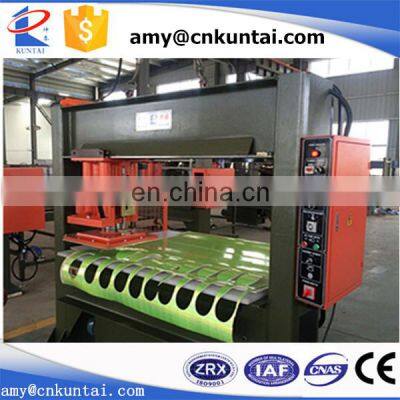

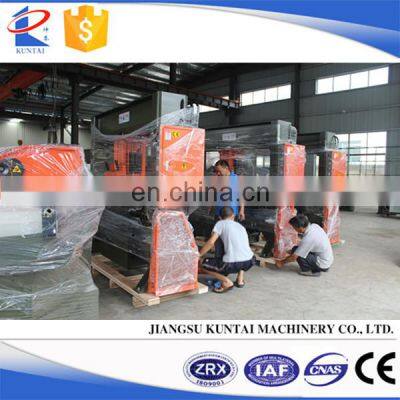

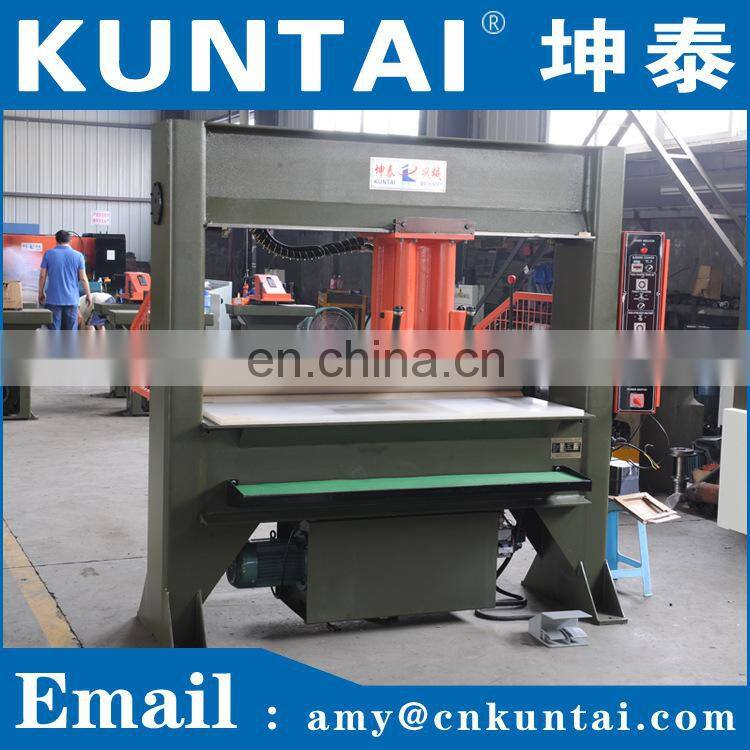

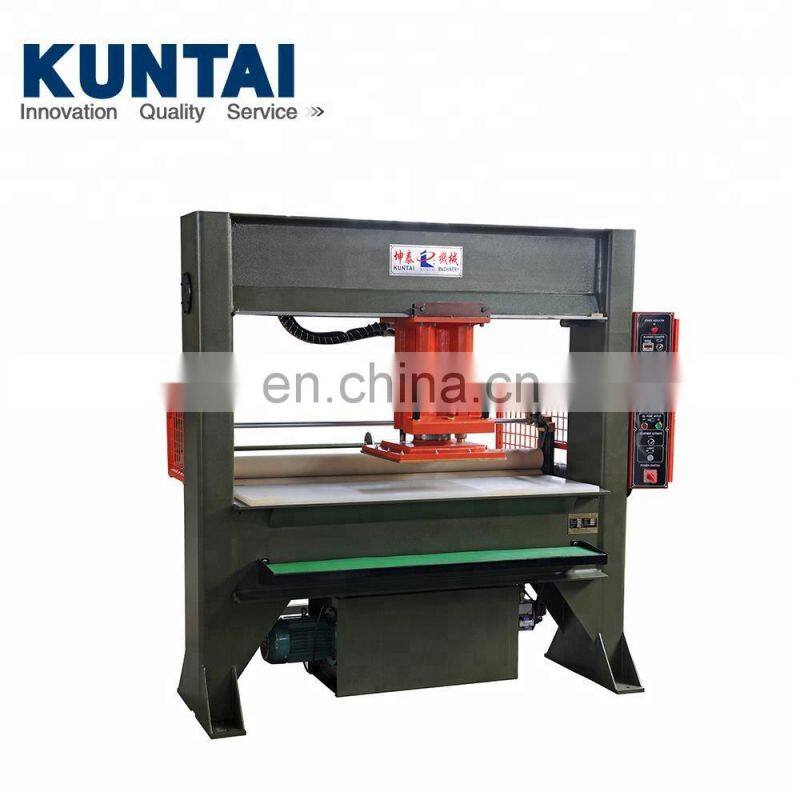

Hydraulic Press Machine Photos:

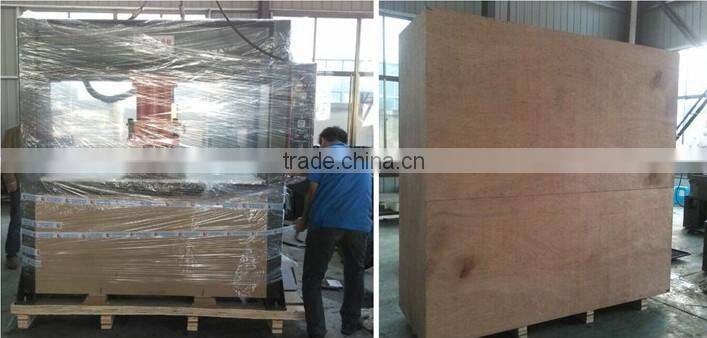

Packaging & Shipping of Shoe Making Machine:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Shoe making machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
