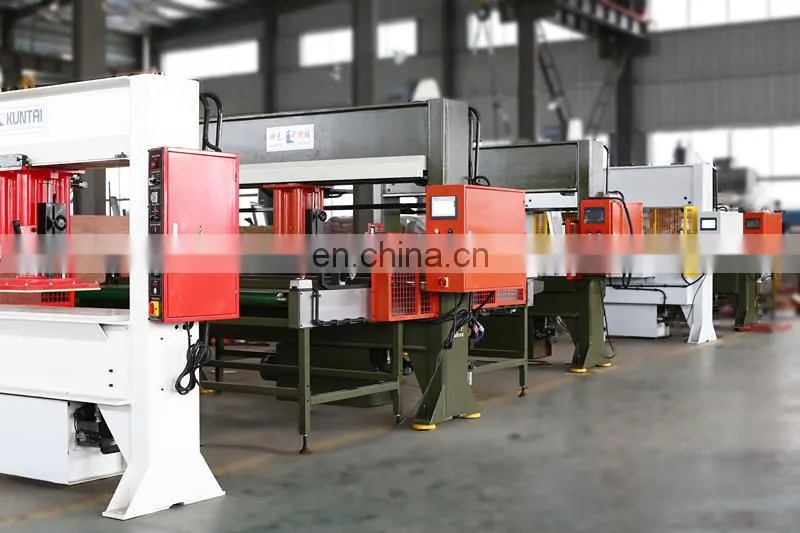

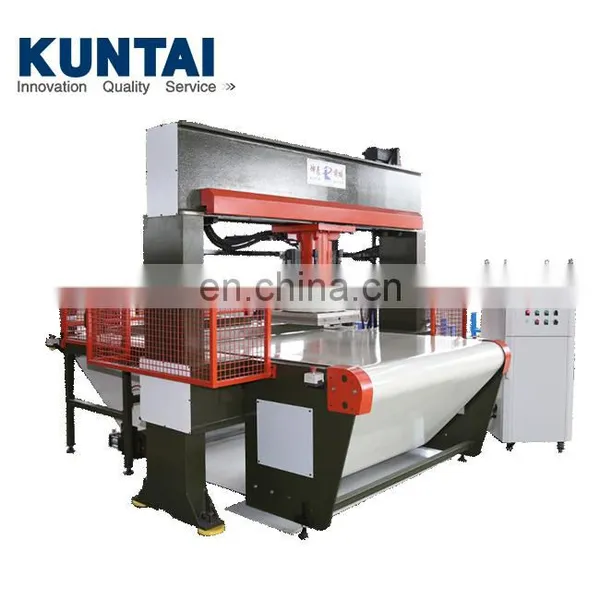

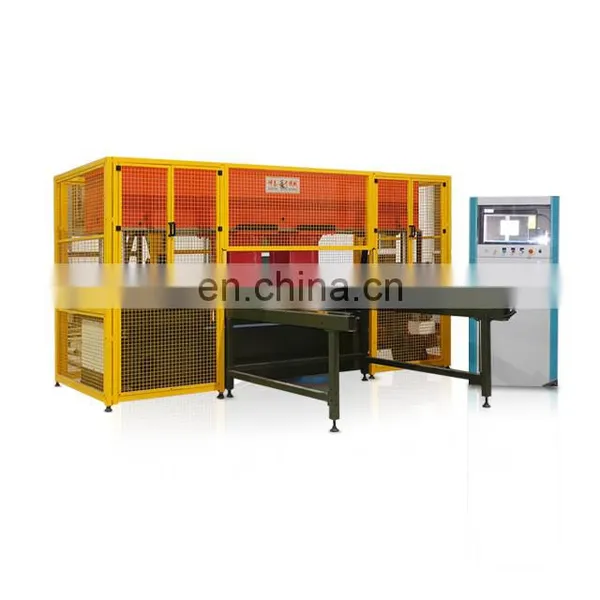

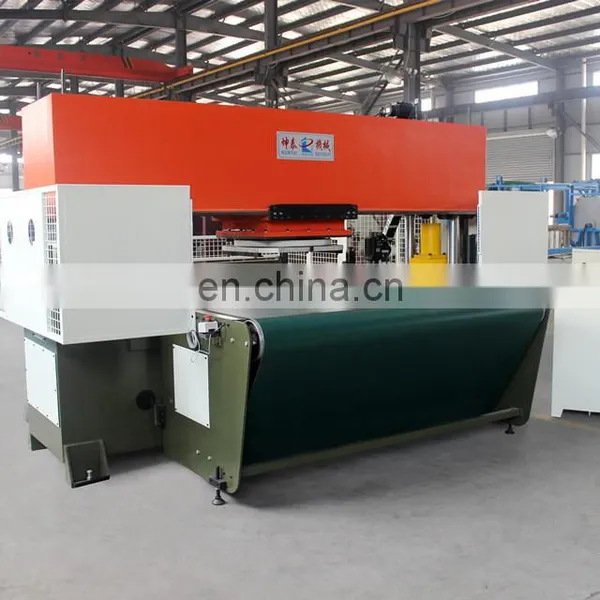

Automatic Travel Head Die Cutting Machine/Leather, EVA, TPU Die Cutting Press

Travel Head Clicking Cutting Machine for Football



Usage and Characteristics

1. This type of cutting machines are widely used for cutting applications of nonmetal materials. Such products as sandpaper products, artificial flower, insoles, football, volleyball or tennis panels, car interior decoration materials and medical supplies are made by this machine.



2. Various material feeding systems can be installed with the machine. Servo motor makes accurate feeding possible and controls horizontal movement of the cutting head.



3. The feeding length can be easily set by the human-computer interface or PLC control panel (Optional).



4. Special hydraulic system makes low noise possible and saves oil.



5. High quality and imported oil pump and other parts are available on request.



6. Maximum cutting force of the die cutting machine caters to customer’s specific application requirements.



7. Rotary head can be installed on request.



Reference Technical Data (Customizable)

Model	KT-C Hydraulic Travel Head Die Cutting Machine
Maximum Cutting Force (ton)	25	25	25	50	50	50
Working Table (mm)	1600*500	1800*500	2000*500	1600*500	1800*500	2000*500
Travel Head Size (mm)	500*500	500*500	500*500	550*550	550*550	550*550
Adjustable Stroke (mm)	5-150	5-150	5-150	5-150	5-150	5-150
Motor Power (kw)	2.2	2.2	2.2	4.0	4.0	4.0
Estimated Machine Dimension (mm)	2200*720*2000	2400*720*2000	2600*720*2000	2200*720*2000	2400*720*2000	2600*720*2000
Estimated G.W (kg)	1800	2100	3000	3000	3800	5000

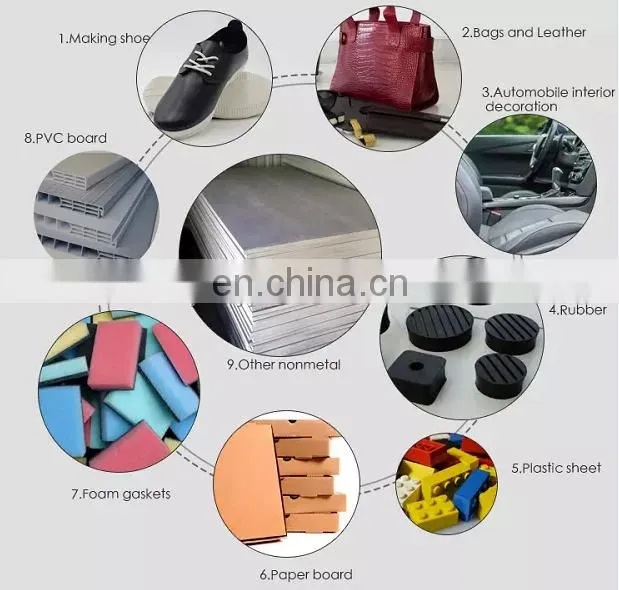

Application

Die Cutting machines of other types or sizes are available on request!

Automatic Fiberglass Die Cutting Machine with Conveyor Belt in our customer's factory

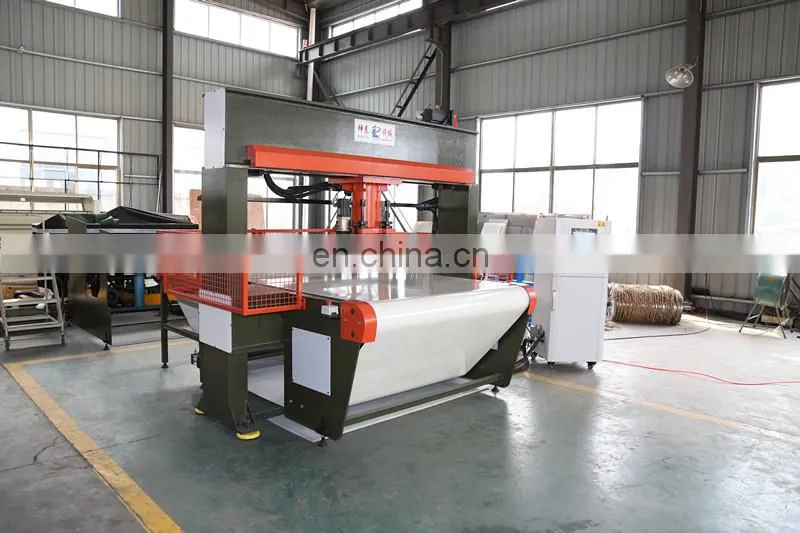

Automatic Fiberglass Die Cutting Machine with Conveyor Belt

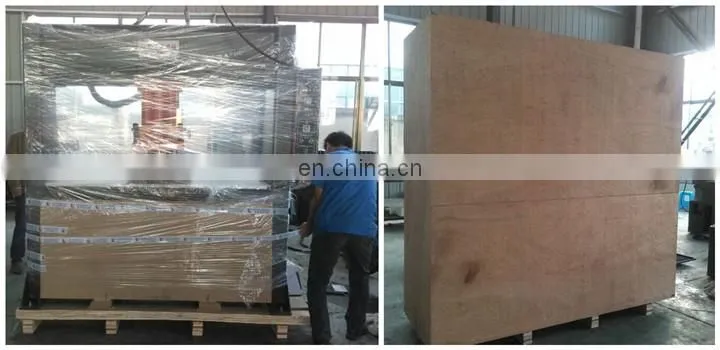

Inner Package: Protective Film, etc

Outside Package: Plywood Case

• Machines well packed with protective film and loaded in plywood case or export container;
• English version operation manual and technical data;
• One-Year-Period wear parts;
• Tool kit

Jiangsu Kuntai Machinery Co., Ltd has over 35 years' experience in designing and manufacturing lamination machines, cutting machines and various other material processing machines for fabric, nonwoven cloth, sponge, leather, artificial leather, paperboard, films, EVA, PUR, TPU, PVC and other materials in various industries, such as garment industry, footwear industry, bags or belts making industry, motor interior decoration industry, upholstery-home textile industry, health care industry and so on. With CE certificate, our machines have been accepted by many European countries, thus expanding our overseas sales market. Experienced and knowledgeable engineers make desired and customized specifications and lifelong maintenance service available on request. Should you have any need, pls feel free to contact us! Tell us your desired length, width, thickness, speed, temperature, pressure and materials, and we will provide you with specialized design.

FAQ

Since 1985, we have been doing one thing --- to be our customers' friend!



1. Are you a trading company or a manufacturer?

 We are a manufacturer with strong export capability.

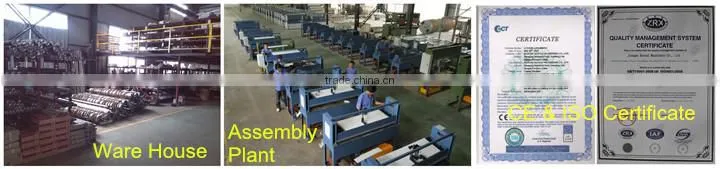

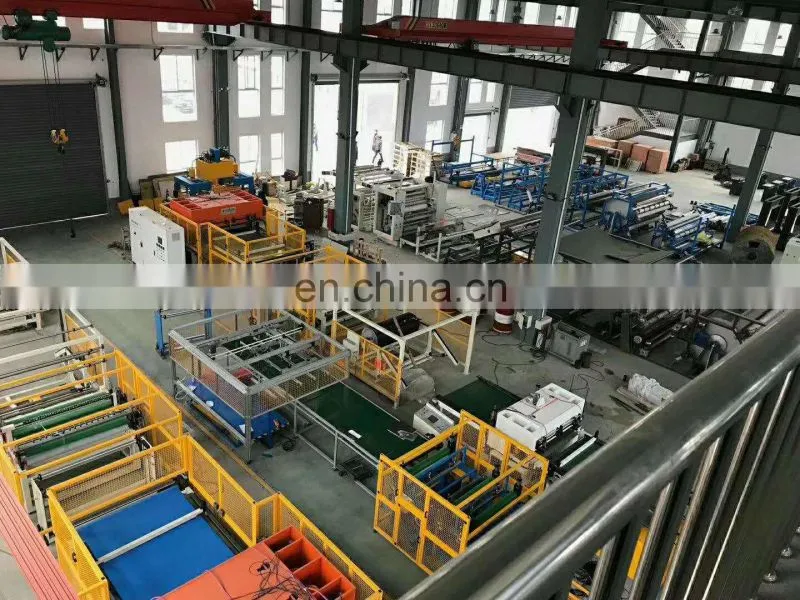

 Our main production process is as follows:

2. Where is your factory?

We are in Yancheng city, three and a half hours' drive away from Shanghai, China.



3. Do you have individual research and development department?

Yes, we have. We believes in technology and market oriented research. Every year, we will work out  a number of solutions to actual onsite application problems and develop brand new machines for our customers.

Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.



4. How can I trust your quality?

• We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.
• We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until  the item passes all the inspections can it go to the following step.
• At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.
• We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.
• Throughout the lifespan of our machines, the spare parts replacement will be at cost price.

5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.

Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.
