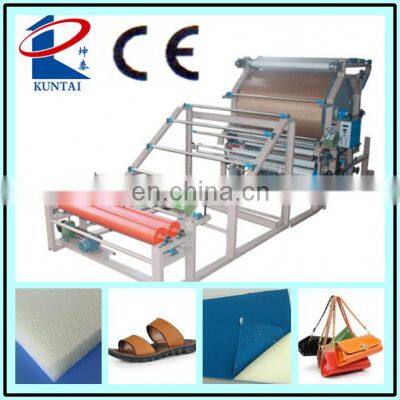

Shoe making machine laminating machine
Water based glue laminating machine
Application:
This type of shoe making machine lamination machine is used for:
♦ Shoemaking materials, such as EVA + fabric, foam + fabric, fabric+ leather, fabric+fabric and so on
♦ Clothing materials, handbag, such as fabric + waterproof film, fabric + fabric, fabric + fur and so on
Shoe Making Machine Laminating Machine Feature:
♦ Installed with high quality heat resistance mesh belt to press the materials closely against the drying cylinder, improving the drying and bonding/laminating effect.
♦ Laminates are of high quality and the machine cost and operating cost are low.
♦ New design structure, low breakdown rate and long service life.
♦ Surface of the drying cylinder is pasted with Teflon paper to avoid glue.
♦ Efficient cooling device is suitable for various of materials.
♦ Electric counter is installed.
Specification(Customizable):
| Width of fabric | 1600mm,1800mm,2000mm according to customers' requirement |
| Machine Roller Surface | 1800mm,2000mm,2200mm according to customers' requirement |
| Machine Speed | 20-35m per min |
| Heating system | stainless heating pipes inside |
| Driven Type | Electric |
| Machine Heating Power | 45kw |
| Machine Drive Powder | 4.5kw |
| Diameter of drying roller | 1.2m, 1.5m |
| Voltage | 220v, 380v, Customizable |
| Estimated Machine Dimension | 6600mm x 2300mm x2700mm |
| Estimated Machine Weight | 3500kg |
Shoe making machine laminating machine details
Laminating machine application

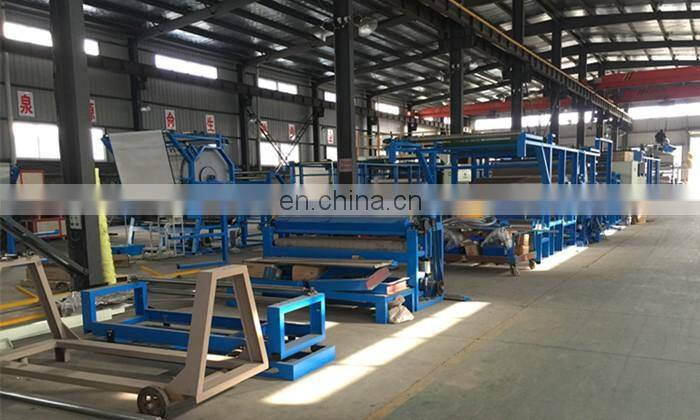

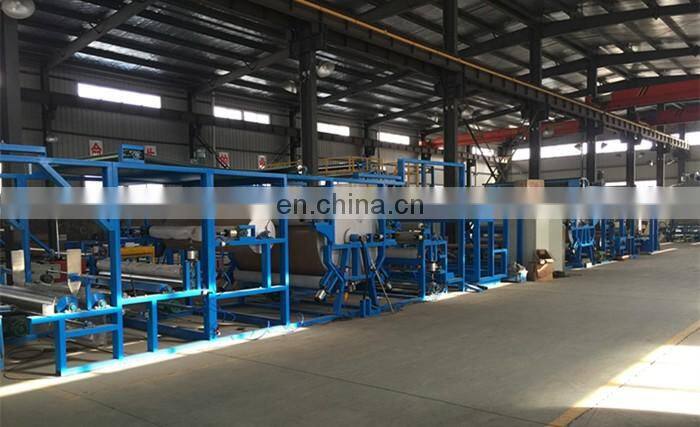

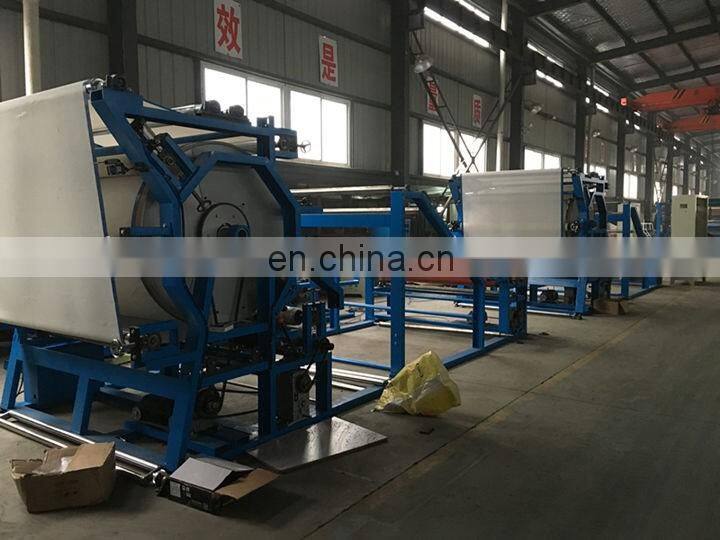

Kuntai Assembly Workshop:

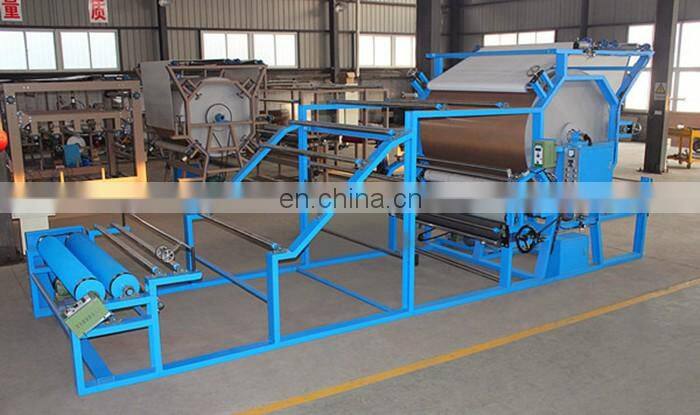

Shoe making machine laminating machine
Inner Package: Protective Film, etc
Outside Package: Standard plywood case
- Machines well packed with protective film and loaded in export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit

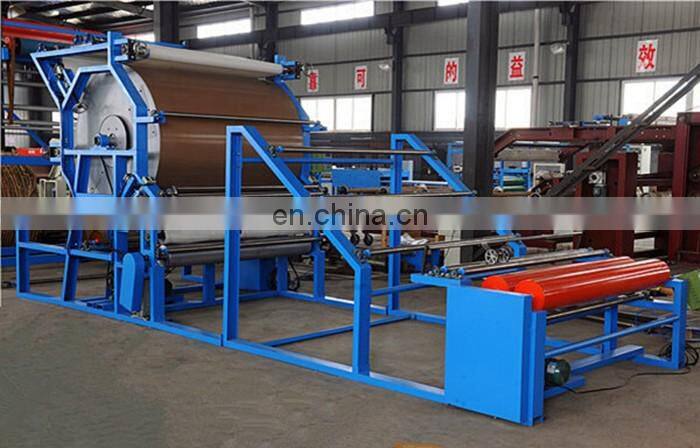

Shoe making machine laminating machine
Shoe making machine laminating machine
1. Are you a trading company or a manufacturer?
We are a manufacturer with strong export capability.
2. Where is your factory?
We are in Yancheng city, three and a half hours' drive away from Shanghai, China.
3. Do you have individual research and development department?
Yes, we have. We believes in technology and market oriented research. Every year, we will work out a number of solutions to actual onsite application problems and develop brand new machines for our customers.
Shoud you have any new ideas about our machines, pls feel free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers' think tank.
4. How can I trust your quality?
- We have CE and ISO certificates. They enhance quality control throughout the manufacturing of our machines.
- We have professional QCs. For each step of our machine production, there will be a team of QCs responsible for the inspection. Until the item passes all the inspections can it go to the following step.
- At the end of the machine assembling, a series of testings will be conducted. Unless the machine passes all the testings, we will not make delivery.
- We guarantee our machines with one-year warranty. Usually, our customers use our machines for 5 years, 8 years and even 10 years.
- Throughout the lifespan of our machines, the spare parts replacement will be at cost price.
5. How to operate the machine? We have not used such a machine before. We just want to expand our business and start a new line.
Pls do not worry! Almost 50% of our overseas customers were in the same situation when buying first of our machines. We have skillful and experienced follow up service staff who have worked out a whole package of solutions catering to the need of our customers like you. Besides, we have a team of technicians available for overseas machine installing, testing and operation instruction.
