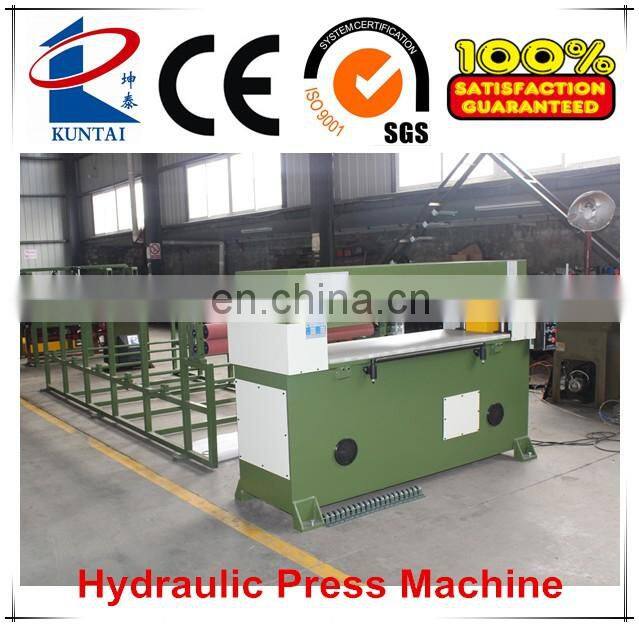

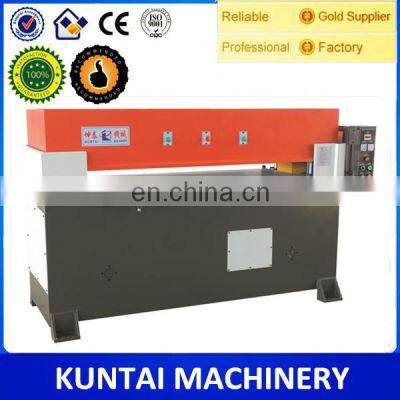

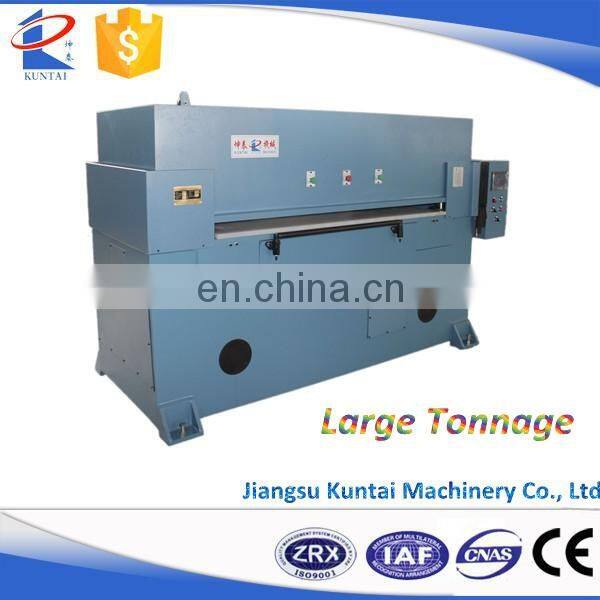

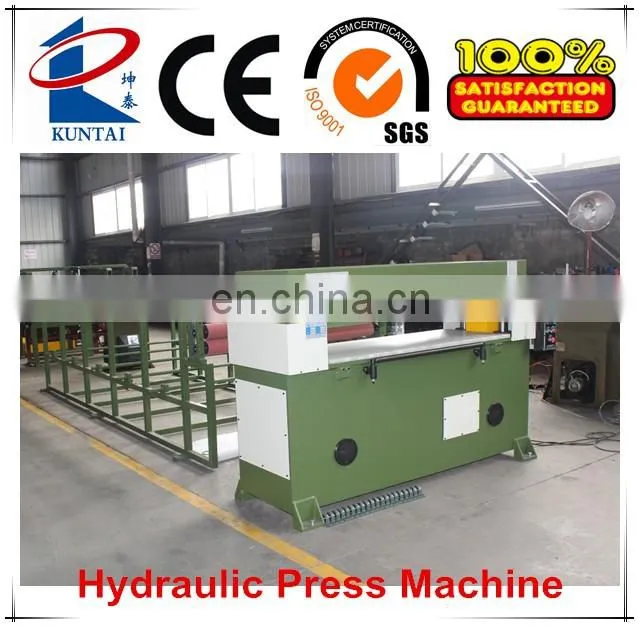

Help CenterHydraulic Press Cutting Machine for Shoes, Collar, Cuff and Other Products
Related Products
Shirt Cuff and Collar Press Machine

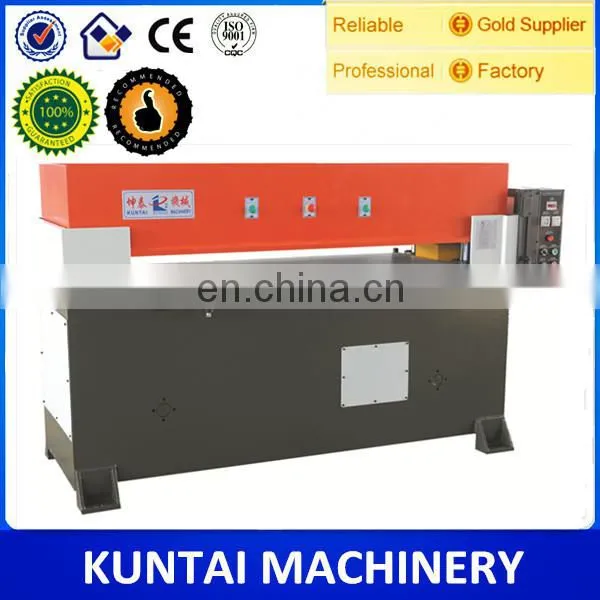

Hydraulic Press Machine for Multilayers of Materials
Application:
- This type of die cutting machine is widely used for cutting EVA, foam, fabric, cardboard, rubber, sponge, bag materials, nonwoven and many other non-metallic materials in various industries;
- Especially suitable for feeding and cutting multiple layers of material at one time;
- This hydraulic press machine is good at cutting shirt collar and cuff, shoes materials and other materials.
Main Features:
- The machine body is made of high quality materials. It is very strong and durable.
- Integrated and reasonable mechanical, hydraulic and electrical design make the cutting machine easy to operate.
- Good hydraulic drive mode and high quality hydraulic system components lower the machine runningnoise. The hydraulic system will supply oil for the lubrication of all the sliding parts of the machine. Therefore, the machine has longer service life.
- Precise 4 column machine structure and double connecting bar make the machine run in a balanced and stable way. The auto slowdown setup of the upper pressing board keeps the same cutting depth in the overall cutting area.
- The motor oil pump is put outside, creating for the machine good ventilation and cooling conditions. The operation is safer and the machine can be used for a longer time, because without the heating source, the oil temp is lower and oil seal will have a longer life.
- It is easy and convenient to install and set the cutting mould or die.
- Different materials feeding systems such as auto clamp feeding, conveyor belt feeding and feeding sliding board can be installed as per customers' specific requirements.
- Low maintenance cost and energy saving.
Other features can be added on request.
Hydraulic Press Machine for Multilayers of Materials

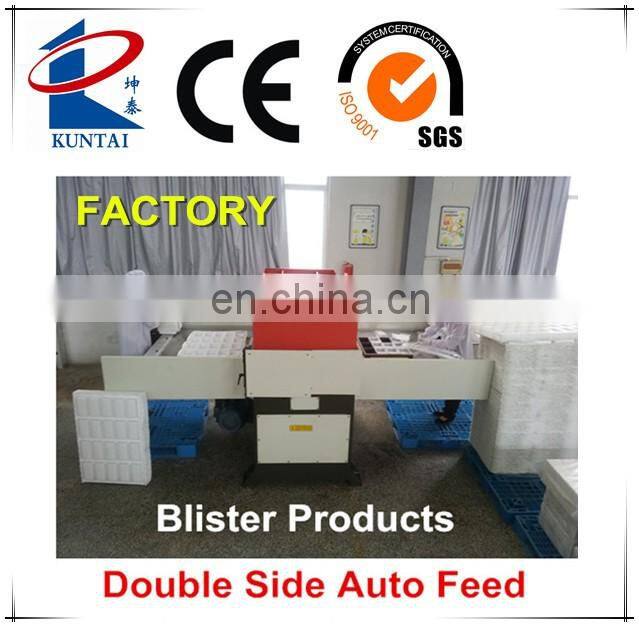

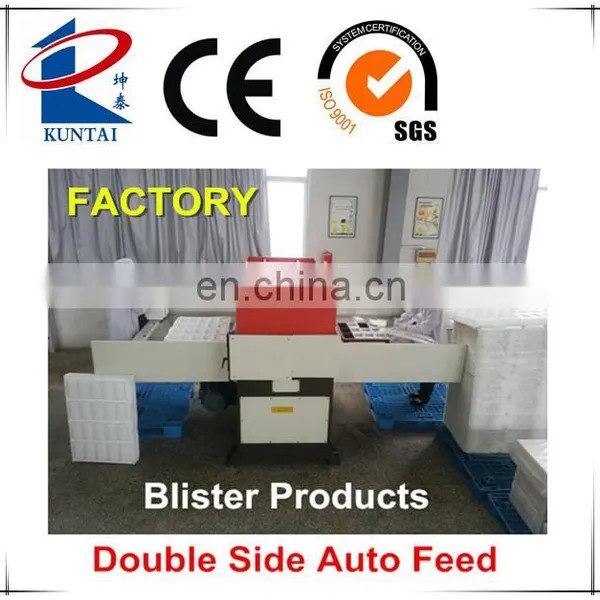

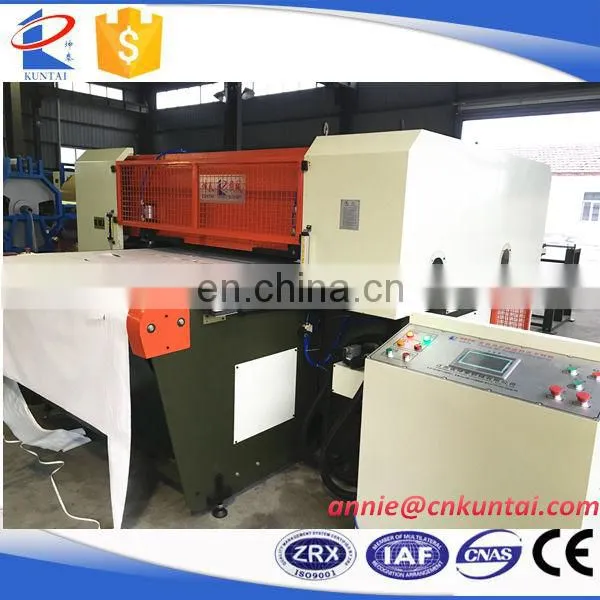

Hydraulic Press Machine with Double Side Auto Feed Sliding Table

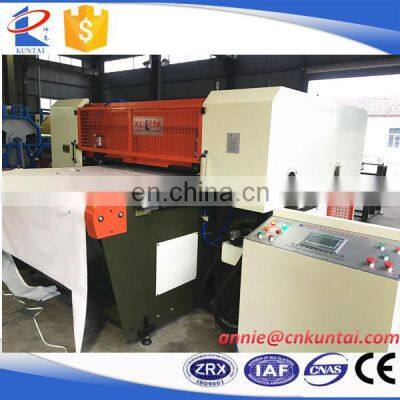

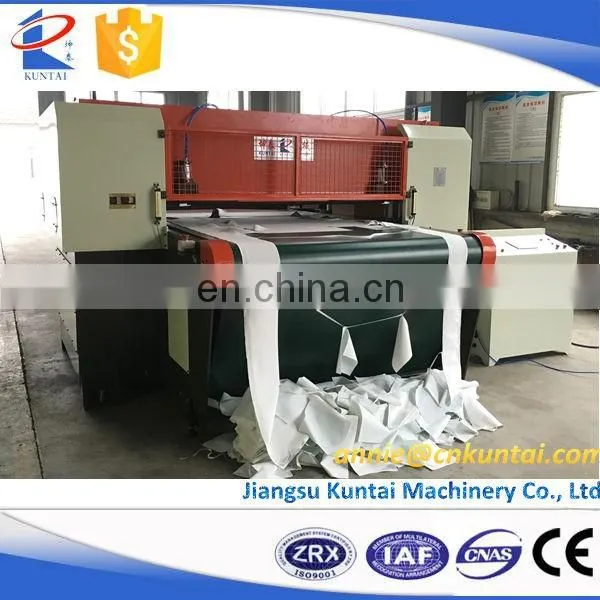

Hydraulic Press Machine with Auto Conveyor Belt Feeding Method
Hydraulic Press Machine with Auto Clamp Feeding Method
Key Points:
Oil Pump: Germany Made or Customizable
Sealing Ring: Made in Italy
Press Switch: Made in Italy
Cutting Switch: Made in Germany
Technical Spec:
Model | XCLP2 |
Cutting Force (ton) | 35/40/50/60/80/100/120/150/200, Customizable |
Distance between the Upper Pressing Board and the Working Table (mm) | 50-200, Customizable |
Working Table Dimension (mm) | Length: 1250/1400/1600, Customizable |
Width: 550/600/800/1000, Customizable | |
Oil Pump Motor Power (kw) | 2.2/3/4/5.5/7.5/11/15 |
Feeding Motor Power (kw) | 1.5 |
Voltage/HZ/Phase | Customizable |
Hydraulic Press Machine for Shoes, Collar, Cuff and other Products

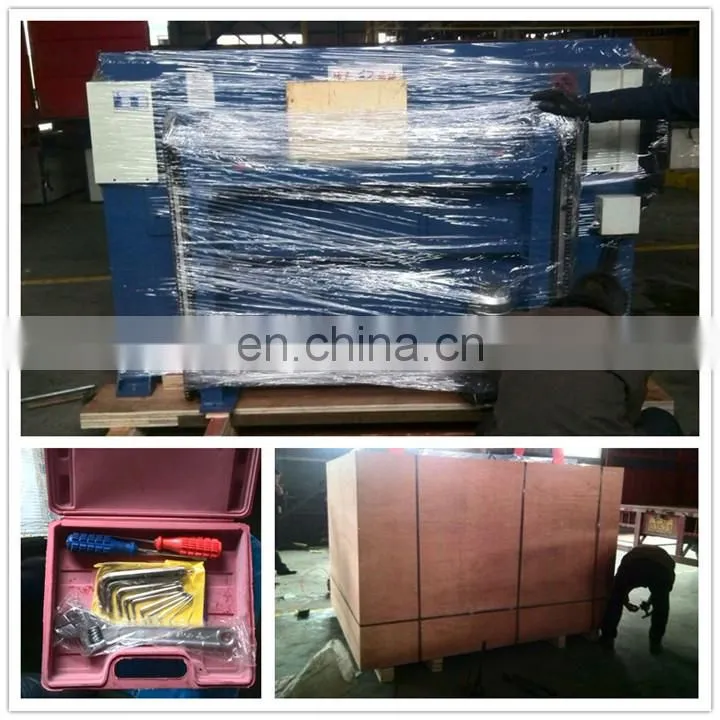

Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
Hydraulic Press Machine for Shoes, Collar, Cuff and other Products
Hydraulic Press Machine for Shoes, Collar, Cuff and other Products
Since 1985, we have been manufacturing various cutting machines for different industries, such as packaging industry, footwear industry, garment industry, etc. Strong engineering power and satisfactory aftersale service consolidates our leading place in both domestic market and overseas market.
Main Production Process
CE & ISO Certificates
