Cutting Machine

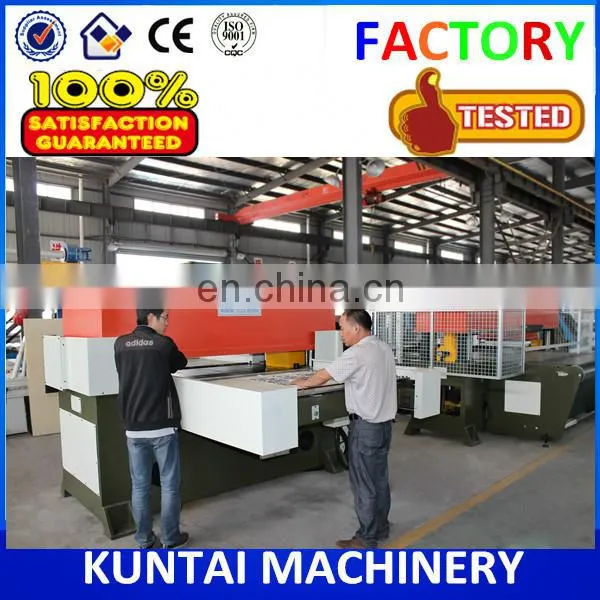

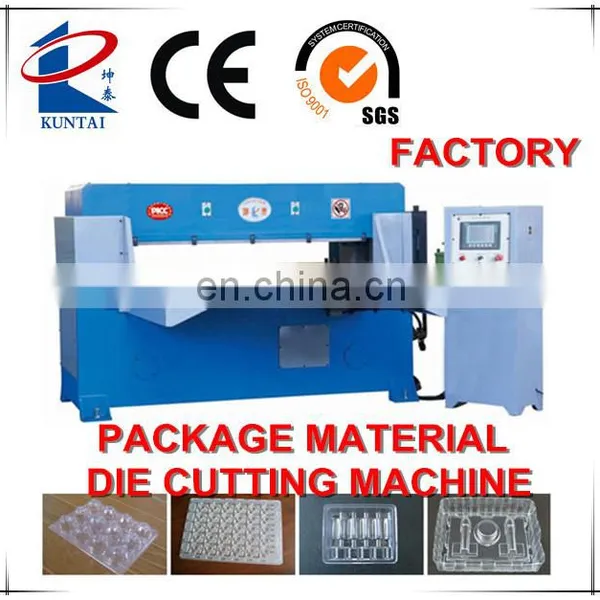

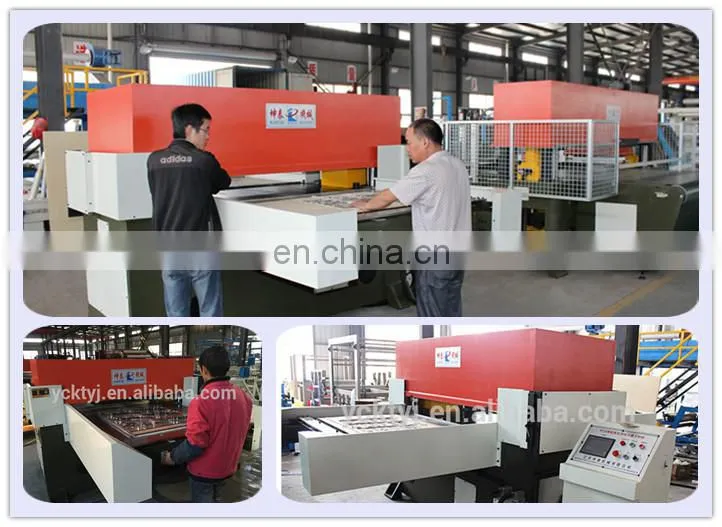

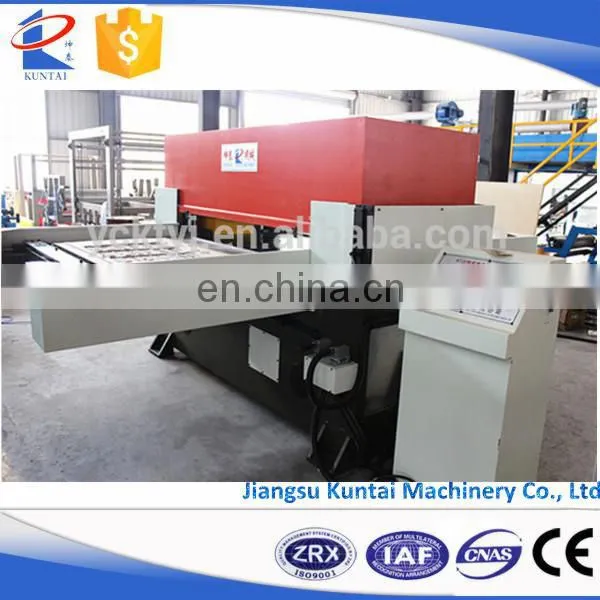

XCLP3-A AUTOMATIC PRECISION HYDRAULIC 4-COLUMN CUTTING MACHINE
1. PLC computer control system and touch screen display make operation easy, quick and precise.
2. Bi-cylinder and four-column automatic balancing rod structure ensure the same depth of each cut position.

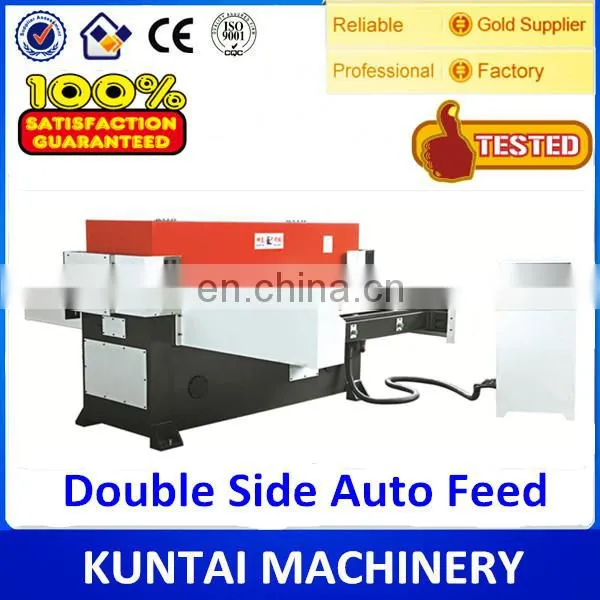

3. It can be installed with single-side or double-side automatic feeding system, increasing the working efficiency by two or three times.
4. When the upper pressing board presses down and comes near the die cutter, it slows down automatically, reducing size difference between the top and the bottom of the materials.
5. Specially designed structure can make stroke adjustment easily and precisely according to cutting moulds of different heights.
6. The cutting mould can be fixed to the upper pressing board by clamp. It will be easy to change the cutting mould.
|
Model
|
XCLP3-A
|
|||
|
Maximum cutting force
|
500KN
|
800KN
|
1000KN
|
1500KN
|
|
Distance between the upper plate
and the working table
|
50-200mm
|
50-200mm
|
50-200mm
|
50-200mm
|
|
Working table dimension
|
1600*800mm
1400*800mm
|
1600*900mm
1400*900mm
|
1600*900mm
1400*900mm
|
1600*1000mm
1400*1000mm
|
|
Motor power
|
5.5KW
|
7.5KW
|
7.5KW
|
11KW
|
|
Hydraulic oil quantity
|
200L
|
240L
|
240L
|
240L
|
|
Estimated machine weight
|
4000kg
|
6000kg
|
7600kg
|
10000kg
|
Cutting Machine Application:
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
We are here at your service!
