2022 High Quality HD-0325RVM 3D Rotating Video Microscope & 360 Degree Video Microscope

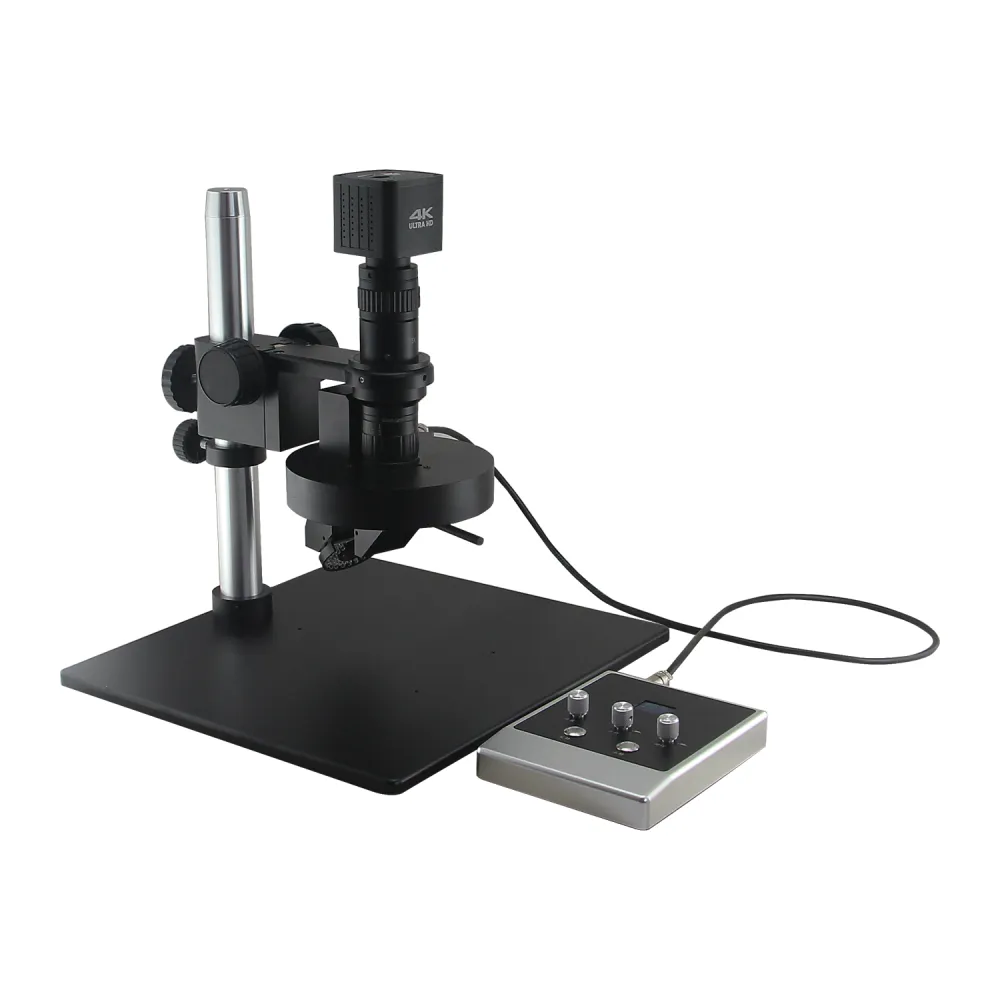

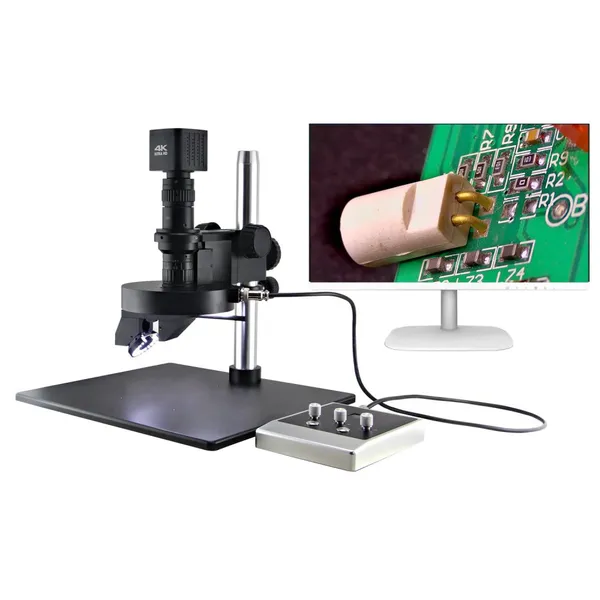

HD-0325RVM 3D rotating video microscope

Features:

The 3D rotating video microscope features simple operation, high resolution, and a large field of view. It can achieve 3D image effect, and can observe product height, hole depth, etc. from different perspectives. It is usually used in electronics, PCB circuit boards, hardware and other industries.

Technical specifications:

●Zoom range: 0.6X～5.0X

●Zoom ratio: 1:8.3

●Maximum comprehensive magnification: 25.7X～214X (Philips 27" monitor)

●Objective field of view range: Min:1.28mm×0.96mm ，Max:10.6mm×8mm

●Viewing angle: horizontal and 45 degree angle

●The plane area of the stage: 300mm×300mm (customizable)

●Using height of support frame (with fine-tuning module): 260mm

●CCD (with 0.5X connector): 2 million pixels, 1/2" SONY chip, HDMI high-definition output

●Light source: adjustable 6-ring 4-zone LED light source

●Voltage input: DC12V
