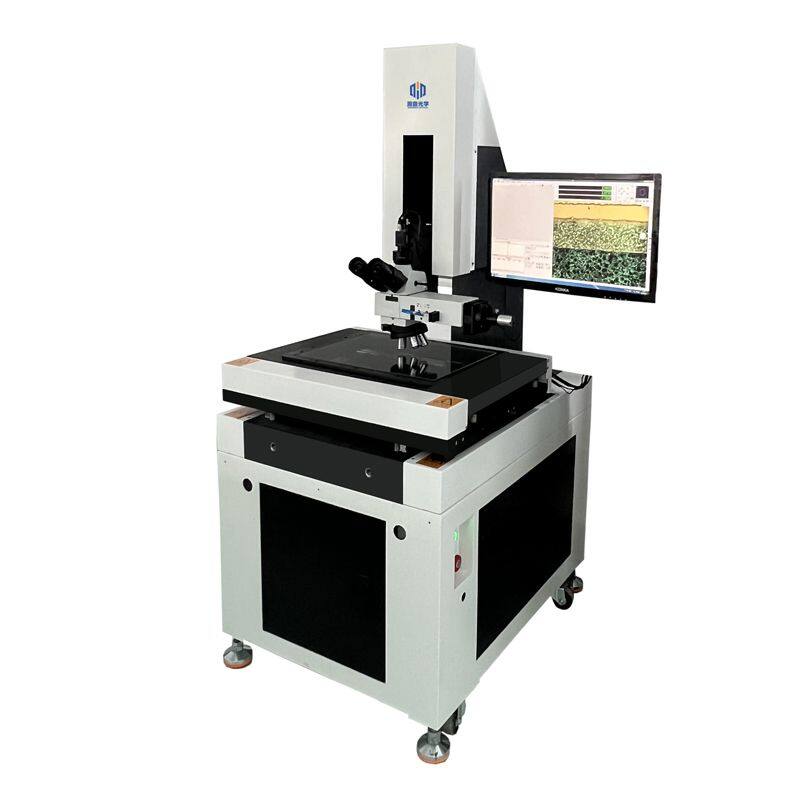

Optical Measuring Machine Multifunctional Automatic Vision Measurement Systems

X/Y/Z measurement stroke

500×400×200mm

Z axis stroke

Effective space: 200mm, working distance: 45mm

XY axis platform

X/Y mobile platform：Grade 00 cyan marble; Z axis column: cyan marble

Machine base

Grade 00 cyan marble

Size of glass countertop

580×480mm

Size of marble countertop

660×560mm

Bearing capacity of glass countertop

30kg

Transmission type

X/Y/Z axis: Hiwin P-grade linear guides and C5-grade ground ball screw

Optical scale

0.0005mm

X/Y linear measurement accuracy (μm)

≤3+L/200

Repetition accuracy (μm)

≤3

Motor

HCFA high performance double closed loop CNC servo system

X axis uses a HCFA 400W servo motor with double closed loop control system

Y axis uses a HCFA 750W servo motor with double closed loop control system

Z axis uses a HCFA 200W servo motor with braking function

Camera

Ultra HD Digital Camera

Observation method

Brightfield, oblique illumination, polarized light, DIC, transmitted light

Optical system

Infinity Chromatic Aberration Optical System

Metallurgical objective lens 5X/10X/20X/50X/100X optional

Image magnification 200X-2000X

Eyepieces

PL10X/22 Plan High Eyepoint Eyepieces

Objectives

LMPL infinity long working distance metallographic objective

Viewing Tube

30° hinged trinocular, binocular: trinocular = 100:0 or 50:50

Converter

5-Hole Tilt Converter with DIC Slot

The body of the metallographic system

Coaxial coarse and fine adjustment, coarse adjustment stroke 33mm,

 fine adjustment accuracy 0.001mm,

With coarse adjustment mechanism upper limit and elastic adjustment device,

Built-in 90-240V wide voltage transformer, dual power output.

Reflective lighting systems

With variable market diaphragm and aperture diaphragm

and color filter slot and polarizer slot,

With oblique lighting switch lever, single 5W high-power white LED

and continuously adjustable brightness

Projection lighting systems

With variable market diaphragm, aperture diaphragm,

 color filter slot and polarizer slot,

With oblique lighting switch lever, single 5W high-power white LED

and continuously adjustable brightness.

Overall dimension（L*W*H）

1300×830×1800mm

Weight

400kg

Power supply

AC220V/50HZ　AC110V/60HZ

Computer

Intel i5+8g+512g

Monitor

Philips 24 inches

Warranty

1 year warranty for the whole machine
