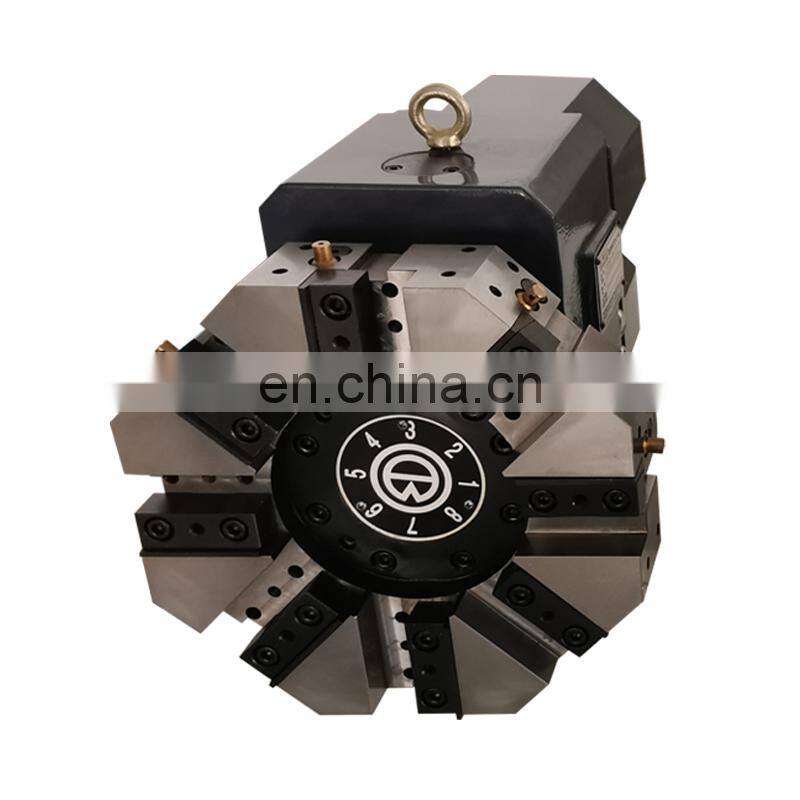

Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret

Wuxi Fagor Technology Company Limited
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret thumbnail-1
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret thumbnail-2
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret thumbnail-3
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret thumbnail-4
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret thumbnail-5
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret photo-1
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret photo-2
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret photo-3
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret photo-4
Hot Sale for SLTA Series 12 Position Tool Holder Cnc Lathe Power Turret photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Agent
Year Established:
2014
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description
Item
Unit
Model
SLTA63
SLTA80
SLTA100
SLTA125
SLTA160
Center height
mm
63
80
100
125
160
Allowed number of tools

12
12
12
12
12
Rotary tool speed
rpm
6000
5000
4000
3500
3200
Time for ratation and clamping of adjacent knife
sec.
0.23
0.35
0.42
0.54
0.72
Time for ratation and clamping of the farthest cutter
sec.
0.55
0.76
0.83
0.95
1.47
Clamping force
kg
1700
2600
3500
5700
8100
Hydraulic working pressure
MPa
3.5±0.5
3.5±0.5
3.5±0.5
3.5±0.5
3.5±0.5
Flow rate
L/min
18
20
25
30
30
Maximum carrying inertia
kg.m²
0.5
1.5
4
7
15
Maximum unbalance moment
N.m
12
20
50
80
100
Indexing accuracy

±4"
±4"
±4"
±4"
±4"
Accuracy of repeatability

±1.6"
±1.6"
±1.6"
±1.6"
±1.6"
Tool shank size
mm
φ20
φ30
φ40
φ50
φ60
Knife handle interface

DIN69880
DIN69880
DIN69880
DIN69880
DIN69880
Type of shaft end of knife block

DIN1809
DIN1809
DIN1809
DIN1809
DIN1809
Maximum power of power motor (S3-40%-10min)
kg
2.2
3.7
5.5
7.5
11
Spindle motor standard model (FANUC) (Sutogamy)

α1/10000i
α2/10000i
α3/10000i
α6/10000i
α8/8000i
Speed ratio of power motor to tool

1:1
1:1
1:1
1:1
1:1
Net weight (With tool disc, without spindle motor)
kg
95
135
195
350
440

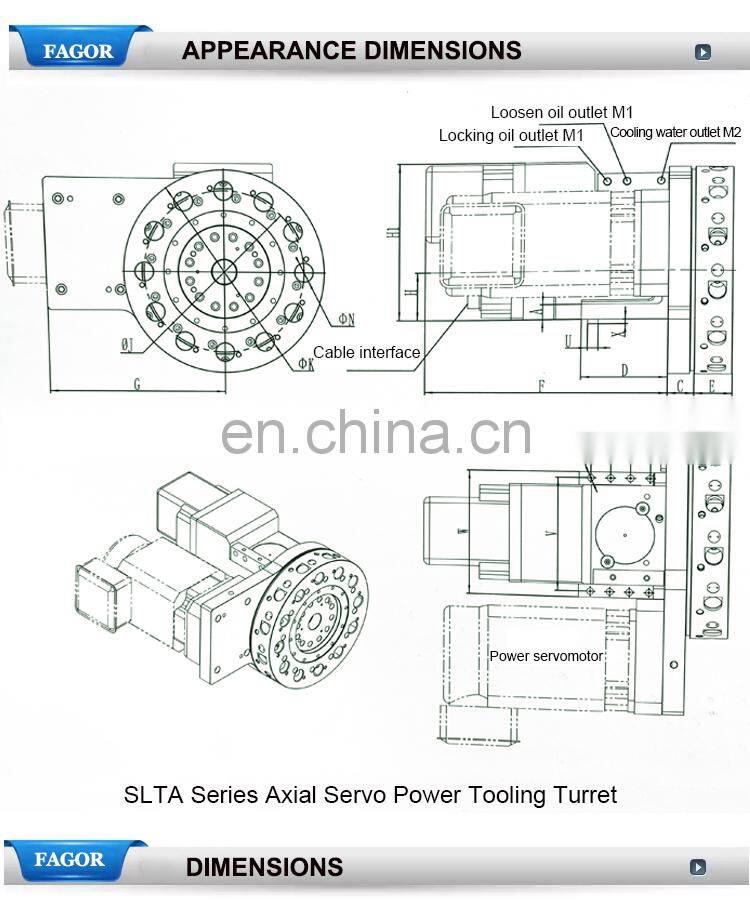

Model
Dimension

H
A
B
C
D
E
F
G
H1
SLTA63
63
20
8-φ11
42
135
48
380
260
225
SLTA80
80
25
8-φ11
43
140
63
390
300
260
SLTA100
100
30
8-φ13
52
170
70
400
330
300
SLTA125
125
35
10Xφ17.5
53
210
85
455
335
290
SLTA160
160
42
10Xφ22
55
270
85
510
395
380

J
K
M1
M2
N
R
S
T
U
SLTA63
240
300
PT1/4
PT1/4
20
24
30
30
15
SLTA80
270
340
PT1/4
PT1/4
30
25
32
32
17
SLTA100
340
412
PT1/4
PT3/8
40
34
40
30
20
SLTA125
370
452
PT3/8
PT3/8
50
32
44
43
26
SLTA160
460
540
PT3/8
PT3/8
50
48
48
56
32

V
W
X






SLTA63
165
185
7.5






SLTA80
190
210
7.5






SLTA100
220
250
9






SLTA125
280
310
9






SLTA160
352
390
12
