Tungsten Carbide Insert for CNC MachineSuperior quality warranty
Reasonable price
OEM service support
100% virgin materials

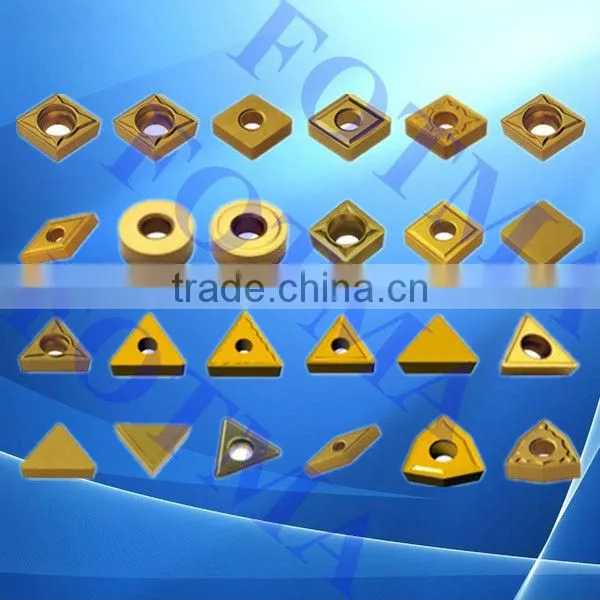

Tungsten Carbide Insert for CNC Machine
With high wear resistance and high strength, tungsten carbide is usually be used for cutting tools, which can be applied to cast iron, stainless steel, alloy steel etc. Now we supply carbide inserts, CNC inserts, carbide blade and other cutting tools made as per our customers' requests.

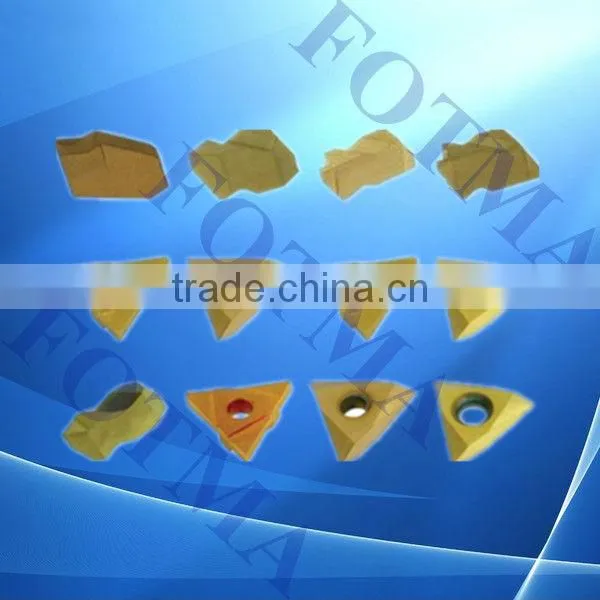

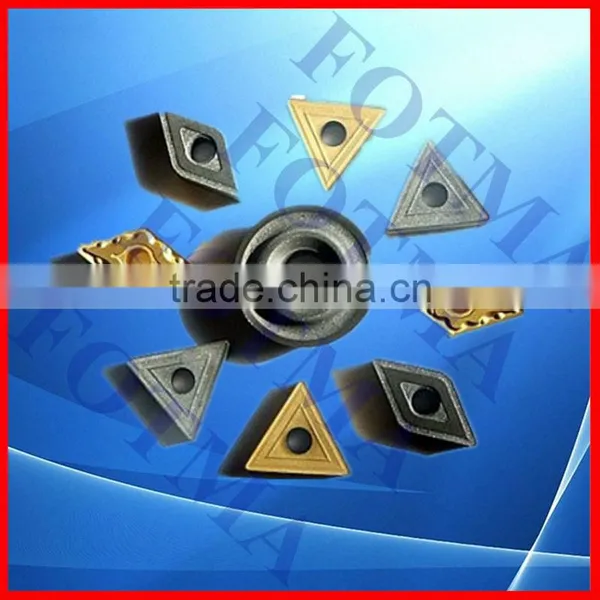

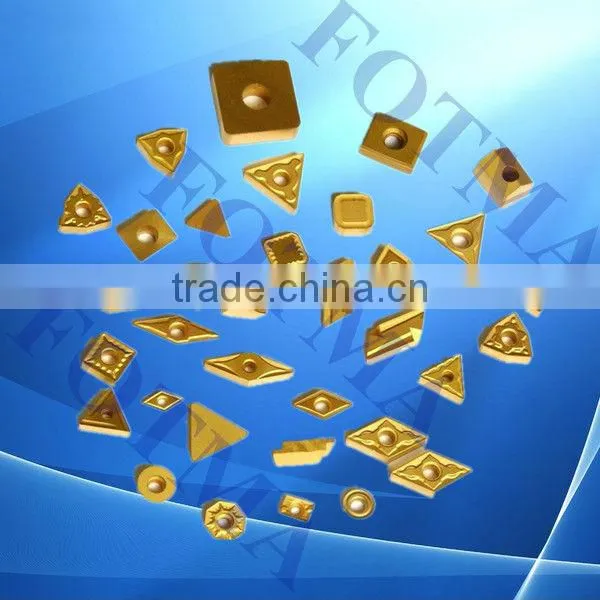

The CNC tungsten carbide insert we supply including:
1. Turning insert
2. Milling insert
3. Cut-off insert
4. Heavy cutting insert
5. Woodworking insert
6. Other customized special inserts.
CNMG CCMT CNMM DNMG DCMTSNMA SCMW SNMGTCMTTNMGTNMMTPGN VBMW VNMG WNMA etc.
We supply CNC tungsten carbide insert for turning, milling, cutting. All the inserts we supply are produced with high quality virgin raw materials. We also produce special inserts made as per customers' designs.
Carbide insert grades introduction:
Grade | Applications |
C2 Uncoated | High wear resistance and high strength; machining chilled cast iron and refractory steel, finishing of normal cast iron. |
C5 Uncoated | Excellent in strength, impact resistance and resistance to thermal shock ; Rough turning, rough planing and semi planing of Carbon steel and alloy steel. |
ZK10UF | Fine-grained alloy, good wear resistance and high strength. Semi-finishing and finishing of cast iron and nonferrous metals. It is the unique material for making of solid carbide tools for holing. |
ZK30UF | Fine grain grade. Excellent wear resistance, high in strength and impact resistance. Machining of cast irons, nonferrous metals and non-metallic materials. It is the unique material of solid carbide tools for holing. |
ZP25 | Fine in wear resistance and toughness; Rough turning, milling, planing and depth drilling of carbon steel, cast steel, manganese steel and alloy steel. |
ZP35 | A versatile grade, high in red hardness, strength and resistance to impact and thermal shocking. Roughing and strong cutting of steel and cast steel. |
TiN | Multy Layer coating TiN/TiC/TiCN/TiN. High red hardness and excellent in wear resistance semi-finishing and finishing of steel,cast steel and alloy steel,also cast-iron and other short chip materials. |
TAN | Multy Layer coating TiC/AL2O3/TiN. Good toughness,high strength in use and versatility for roughing,medium roughing of steel,alloy steel and cast-iron, especially for high speed and quick cutting. |
Suggestion: We would like to recommend suitable grade depending on your machining materials. | |
Our Products:

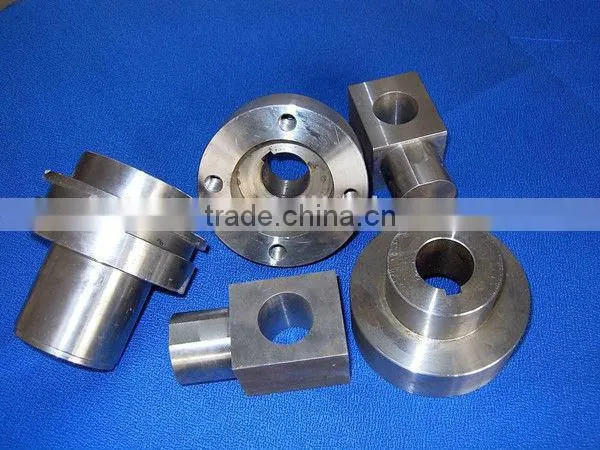

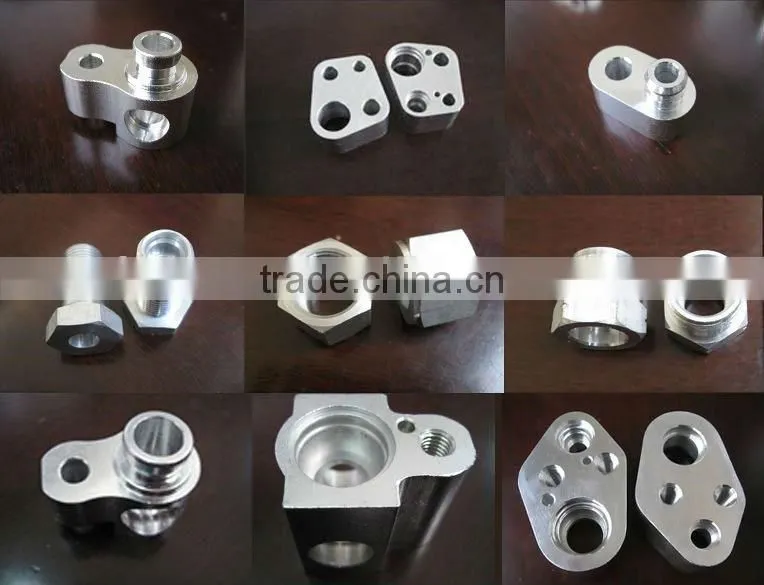

High accuracy parts made by CNC machine with tungsten carbide inserts

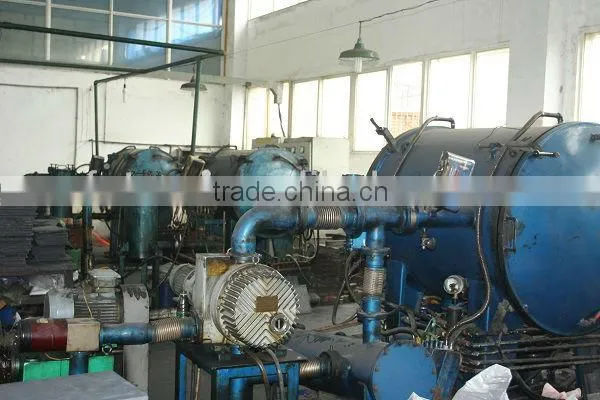

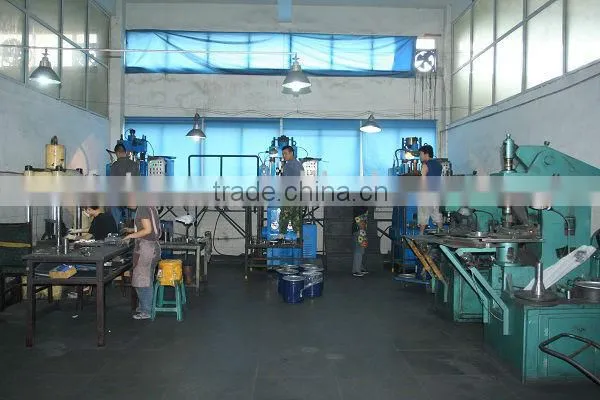

Our Factory:
Our Office:
Our Certificate:
For more information about the tungsten carbide insert we supply please send us feedback.
