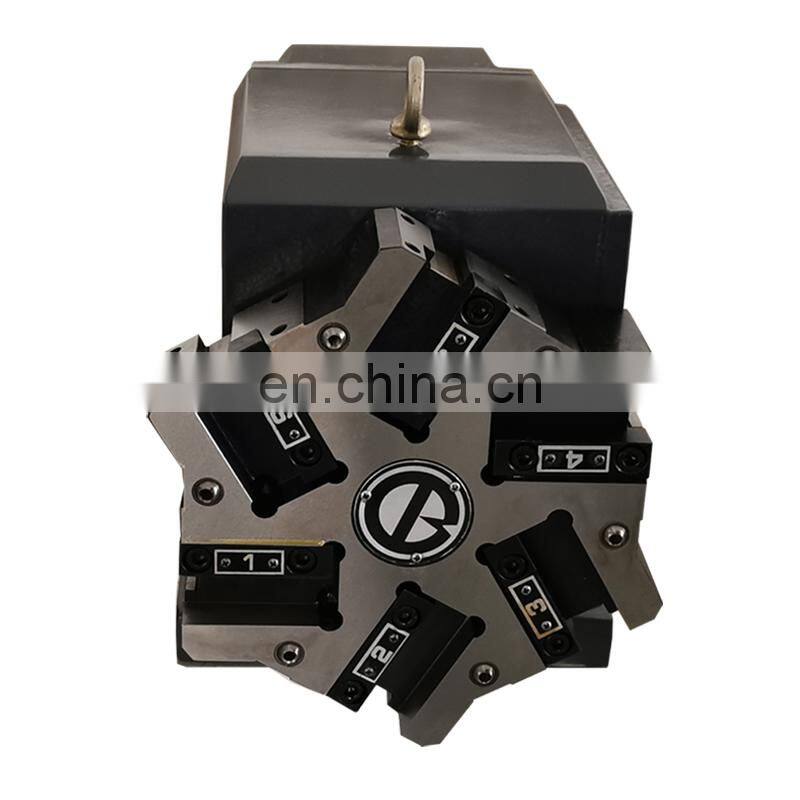

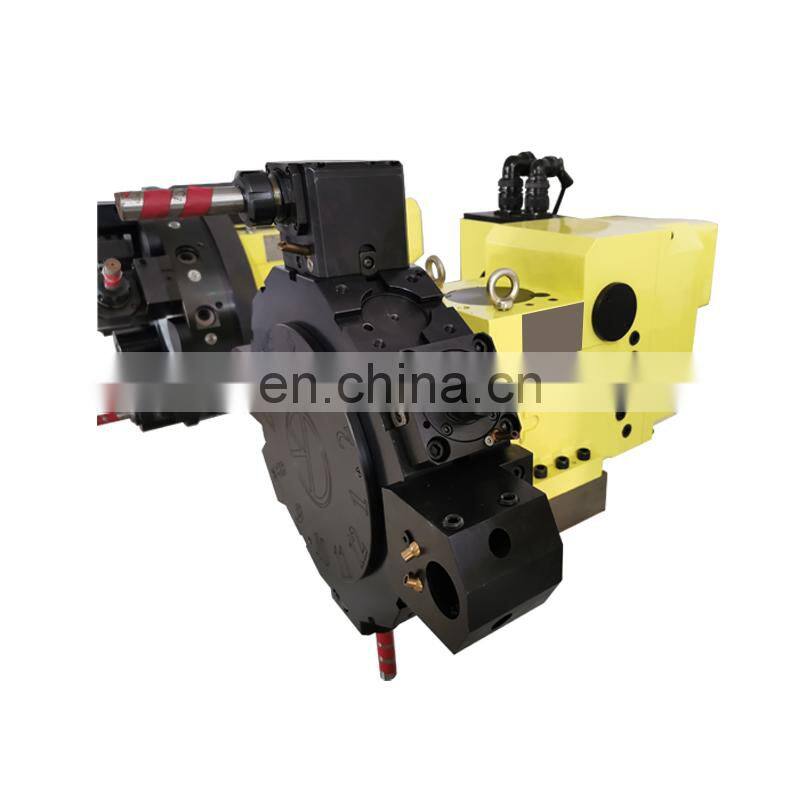

High Precision 8 Stations SLTR Series Radial Servo Power Tooling Cnc Turret
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
CNC Lathe Usd Quick Change Tool Turret 8/12 Position Tool Holder SLT Series Power Servo Turret
-
CLT Series 6/8 Position Powerful Hydraulic Motor Cnc Lathe Tool Turret for Cnc Machine in Stock
-
BWD Series Quick Change Tool Holder Turret for Cnc Lathe Power Turret Cheaper 6 Position
-
High Quality 4 Station LDB4 Series Cnc Lathe Tool Turret Punch Tools in Stock
-
CLT Series Hydraulic 8 Station Cnc Tool Turret Quick Change Tool for CNC Milling Machine
-
LDB4 Series CK0625 CNC Quick Change Tool Electric Turret Sensor 4 Station Turning Tool Vertical Turret
Product Description
Product Description
Item | Unit | Model | ||||
SLTR63 | SLTR80 | SLTR100 | ||||
Center height | mm | 63 | 80 | 100 | ||
Allowed number of tools | 12 | 12 | 12 | |||
Rotary tool speed | rpm | 6000 | 5000 | 4000 | ||
Time for ratation and clamping of adjacent knife | sec. | 0.23 | 0.35 | 0.42 | ||
Time for ratation and clamping of the farthest cutter | sec. | 0.55 | 0.76 | 0.83 | ||
Clamping force | kg | 1700 | 2600 | 3500 | ||
Hydraulic working pressure | MPa | 3.5±0.5 | 3.5±0.5 | 3.5±0.5 | ||
Flow rate | L/min | 18 | 20 | 25 | ||
Maximum carrying inertia | kg.m² | 0.5 | 1.5 | 4 | ||
Maximum unbalance moment | N.m | 12 | 20 | 50 | ||
Indexing accuracy | ±4" | ±4" | ±4" | |||
Accuracy of repeatability | ±1.6" | ±1.6" | ±1.6" | |||
Tool shank size | mm | φ45 | φ55 | φ65 | ||
Knife handle interface | BMT(Doosan) | BMT(Doosan) | BMT(Doosan) | |||
Type of shaft end of knife block | DIN1809 | DIN1809 | DIN1809 | |||
Maximum power of power motor ( S3-40%-10min ) | kw | 2.2 | 3.7 | 5.5 | ||
Spindle motor standard model (FANUC) (Sutogamy) | α1.5/10000i | α2/10000i | α3/10000i | |||
Speed ratio of power motor to tool | 1:1 | 1:1 | 1:1 | |||
Net weight (With tool disc, without spindle motor) | kg | 103 | 155 | 226 | ||
Model | Dimension | ||||||||||||||||
H | A | B | C | C1 | d | D | E | F | |||||||||
SLTR63 | 63 | 20 | 8-φ11 | 45 | 22 | φ45 | 135 | 90 | 476 | ||||||||
SLTR80 | 80 | 25 | 8-φ11 | 45 | 22 | φ55 | 140 | 100 | 435 | ||||||||
SLTR100 | 100 | 30 | 8-φ13 | 55 | 27 | φ65 | 170 | 110 | 554 | ||||||||
F1 | F2 | G | H1 | J | M1 | M1 | O | Q | |||||||||
SLTR63 | 621 | 29 | 310 | 225 | 500 | PT1/4 | PT1/4 | 290 | 172 | ||||||||
SLTR80 | 590 | 29 | 348 | 260 | 580 | PT1/4 | PT1/4 | 330 | 195 | ||||||||
SLTR100 | 729 | 29 | 351 | 300 | 625 | PT1/4 | PT3/8 | 380 | 240 | ||||||||
R | S | T | U | V | W | X | |||||||||||
SLTR63 | 24 | 30 | 30 | 15 | 165 | 185 | 7.5 | ||||||||||
SLTR80 | 25 | 32 | 32 | 17 | 190 | 210 | 7.5 | ||||||||||
SLTR100 | 34 | 40 | 30 | 20 | 220 | 250 | 9 | ||||||||||
