New modular design easy for upgrade robot platform mobile robot chassis underwater robot chassis
- 1000 per Month
- T/T Credit Card
- Light self weight big size big load weight rubber track robot platform mobile robot chassis underwater robot chassis
- Crawler rubber tracked underwater Intelligent robot platform for cleaning sedimentation tank silt
- Underwater dredging used intelligent robot chassis underwater crawler platform
- 75m blue tooth controlled underwater drone with hd camera
- 75m blue tooth controlled underwater robot camera
- Air duct cleaning equipment, Flexible shaft cleaning machine, pipe robot cleaner
Product Description
New modular design easy for upgrade robot platform mobile robot chassis underwater robot chassis
* Introduction about the Underwater robot chassis
The underwater robot chassis is main used for maximum 30m depth underwater operations,
do the secondary development and customized services . Hope you join us !!!
*Application of the Underwater robot chassis
We accept custom application, some sample case as following :
1. Underwater dredging robot: used for cleaning the silt in the breeding pond and sedimentation tank.
2. Wringing and suction robot: underwater excavation, dredging
3. Harvesting of aquatic products: mainly used for the harvest of lotus root, horseshoe, mushroom, and other aquatic crops.
*Advantage of Underwater robot chassis

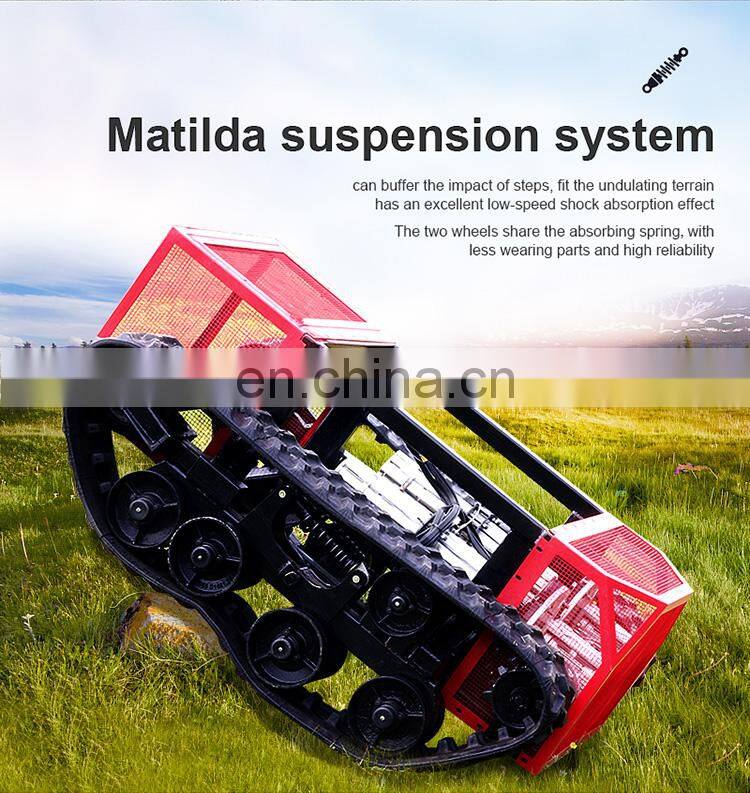

1.Matilda suspension system can buffer the impact of steps, fit the undulating terrain, has an excellent low-speed shock absorption effect. The two wheels share the absorbing spring, with less wearing parts and high reliability.
2. Integrated welded frame body, solid structure, light weight, the whole chassis is sprayed and rust-proof.
3. The power transmission components are oil-filled and waterproof, long-term reliable, and resistant to water depth of 30 meters.

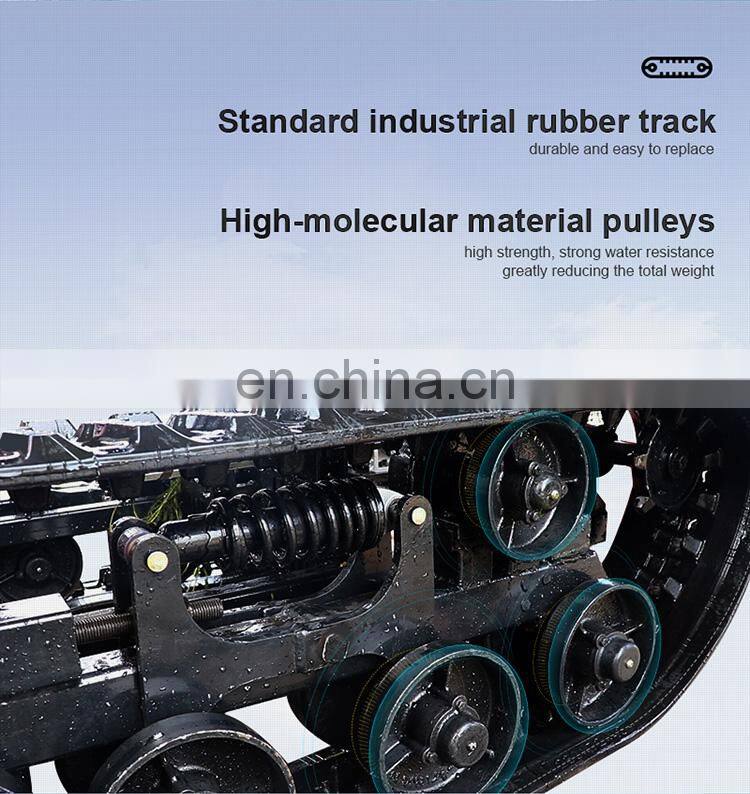

4. Standard industrial rubber track, durable and easy to replace
5. High-molecular material pulleys (molecular weight greater than 5 million), high strength, strong water resistance, greatly reducing the total weight.
6. Modular design, convenient for users to upgrade and transform.
7. Power system: generator or civil power supply.
8. 2 control modes optional:
(1) Handheld remote controller+normal control box mode: No secondary development, or simply support the remote control receiver with reserved control channel PWM signal, does not support video and voice channel.
(2) Visual control box mode: 4 wired video signals, 13 PWM steering gear control signals, expansion of underwater equipment can be customized and developed.
*Specification of underwater robot chassis
Item |
Data |
Item |
Data |
Dimension
|
1650*1170*660mm |
Speed |
2.5-4KM/h |
Self Weight |
230kg |
Designed Load |
300-700kg |
Waterproof |
IP68 |
Rated Torque |
300-1200NM |
Track Width |
230mm |
Reducer Efficiency |
65-85% |
Gear Ratio |
1:10-1:40 |
Motor Voltage |
380ACV (customized as local voltage) |
Motor |
1.5-4KW*2 |
Climbing Ability |
≤30°(can climb stairs) |
Motor Rated Speed |
1500r/min |
Maximum Span |
740mm |
Cable Control Distance |
Standard 50m,maximum 150m |
Over-Obstacle Capacity |
180mm |
Maximum Underwater Depth |
30m |
Generator or 380V power supply |

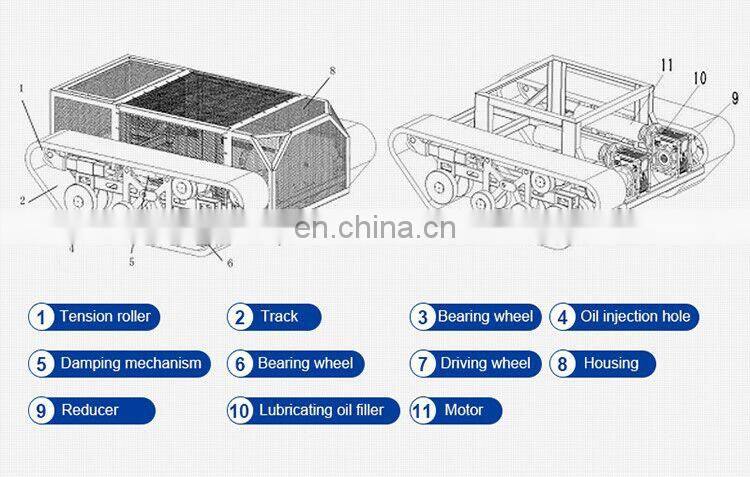

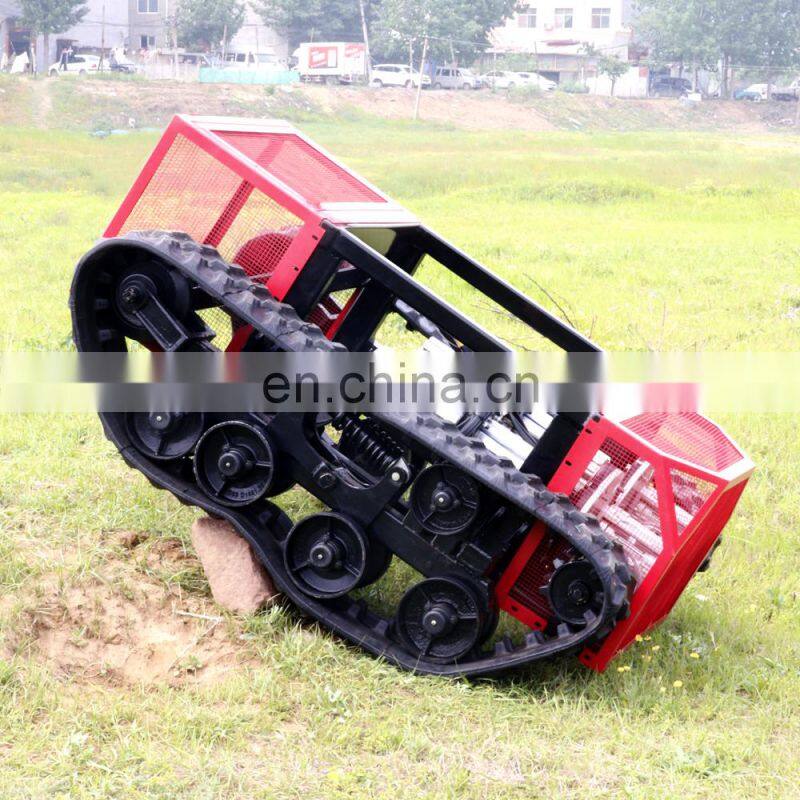

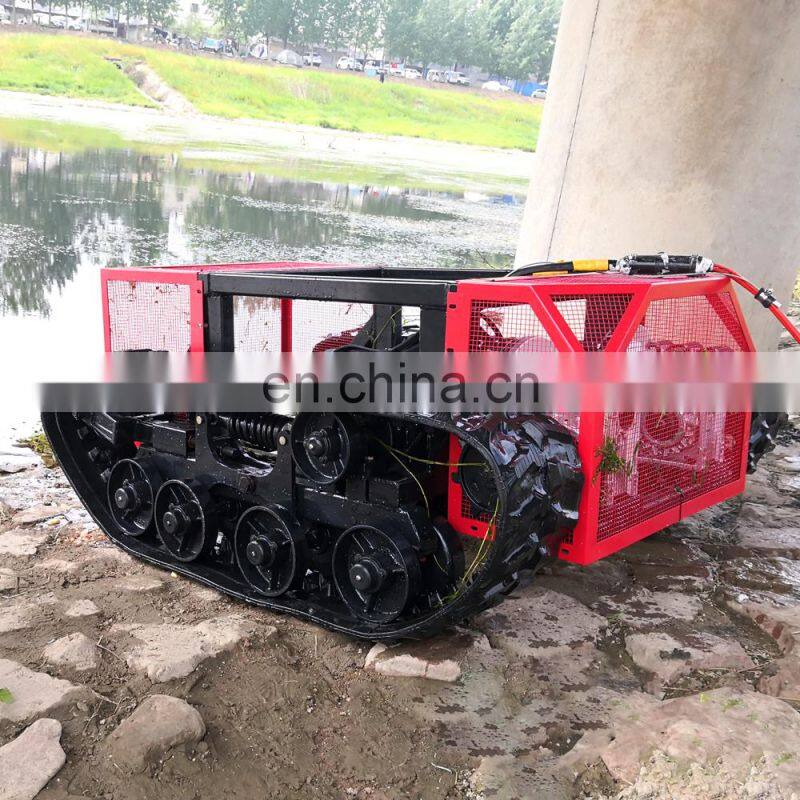

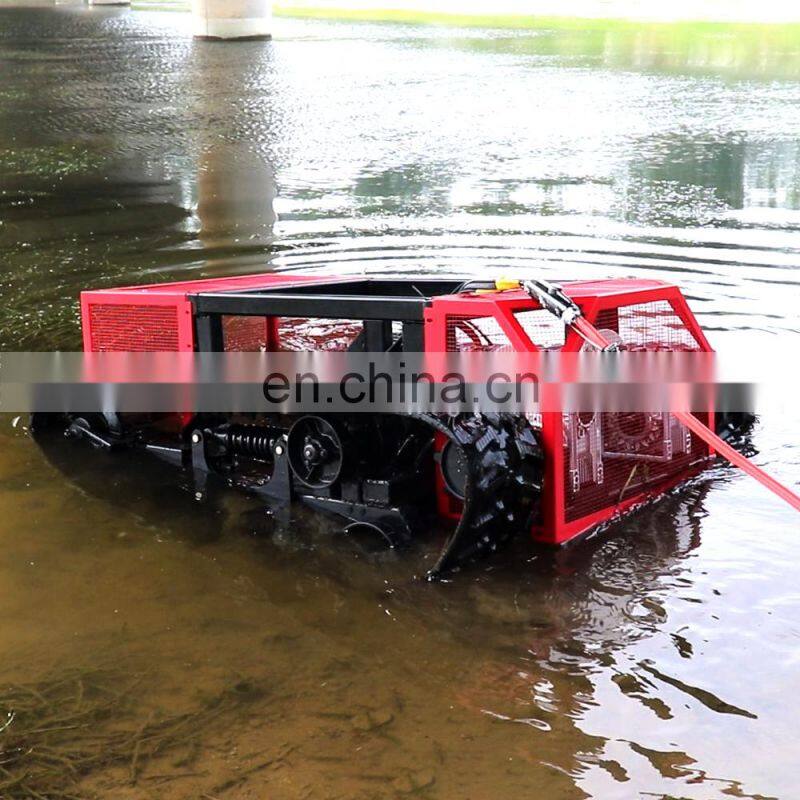

*Detail pictures of Underwater robot chassis
*Other model of underwater robot chassis
* About Our company :
Zhengzhou Defy Mechanical & Electrical Equipment Co,. Ltd. is a leading robot manufacturer in China, established in 2000, offering mobile solutions for robot development in inspection, salvage, special rescue, etc. They are widely used in university, research institution, industry project, etc. With professional technical support, we have established one-stop solutions for global clients, with our own R&D department, Q&C department, production department, sales department, and after-sales department.
Anymore interested information welcome to contact us on time , we are always online to provide our best service.
Olivia:
Email:olivia @zzavatar.cn
Whatsapp:0086 18738992232
Zhengzhou Defy
Add.: No.96 Ruida Road, High-Tech Zone, Zhengzhou City, Henan Province, China
Tel: 0086-371-63330731 Fax: 0086-371-63685191
Website:
Welcome to contact us,please Send Inquiry Now
