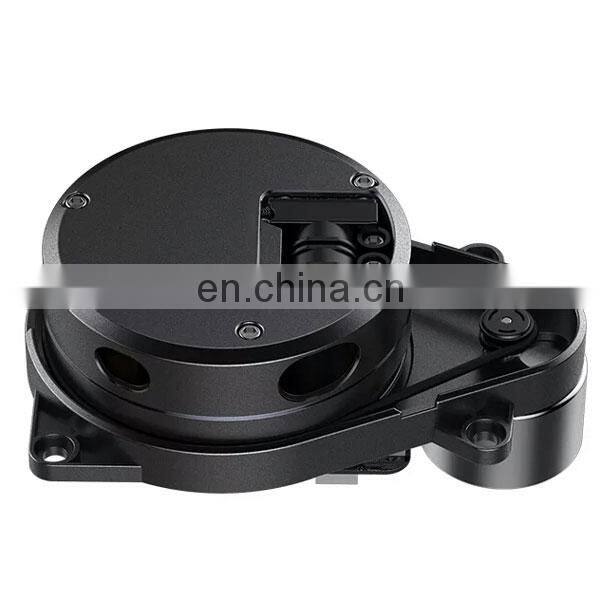

2D 360 degree lidar solid state lidar scanner laser

Introduction:

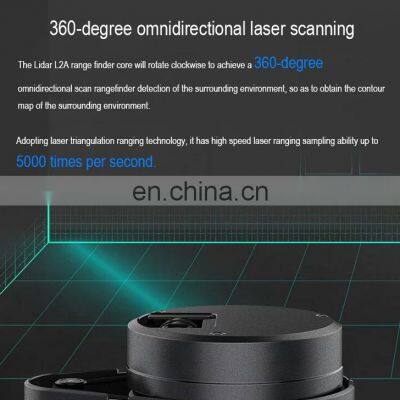

1. 360-degree omnidirectional laser scanning. The Lidar L2A range finder core will rotate clockwise to achieve a 360-degree omnidirectional scan rangefinder detection of the surrounding environment, so as to obtain the contour map of the surrounding environment.

2. Adopting laser triangulation ranging technology, it has high speed laser ranging sampling ability up to5000 times per second.

3. Industrial grade brushless motor: Long service life, low loss and low noise.

4. Easy use: After connecting to your computer via USB module, it can be used directly without any coding. Equipped with serial port and USB port, open-source SDK and tools, it can be easily integrated with ROS.

 2D 360 degree lidar solid state lidar scanner laser

Parameter:

Measurement

0.13-6m(80% reflectance)

Voltage

5v

Sampling

2k/s

Starting Current

500mA

Scanning Frequency

6.2Hz

Working Current

500mA

Angular Resolution

1

Dimension(mm)

107*75*50

Laser Wavelength

780nm

Weight

173g

Laser Power

3mw

Laser Class

0-1

Accuracy

2%

Working Temperature

0-45

Communication Interface

UART(TTL)

Storage Temperature

(-20.60)

Baud Rate

115200bps

Working Illumination

<1000lux

Power consumption

1.5w

Working Rh

<90%



Communication and interface:

Working mode

8 bit data, 1 bit stop bit, no check

Baud rate

230400

Output low level

<0.4

Output high level

2.9-3.5

Features:

1. Scanning speed: 5000 times/ second
2. 6m radius ranging

3. 360-degree omnidirectional laser scanning.

product show:

2D 360 degree lidar solid state lidar scanner laser

2D 360 degree lidar solid state lidar scanner laser

Commercial Use:

Shopping mall service robots, accompanying robots, rescue robots, etc.

2D 360 degree lidar solid state lidar scanner laser

2D 360 degree lidar solid state lidar scanner laser

2D 360 degree lidar solid state lidar scanner laser
